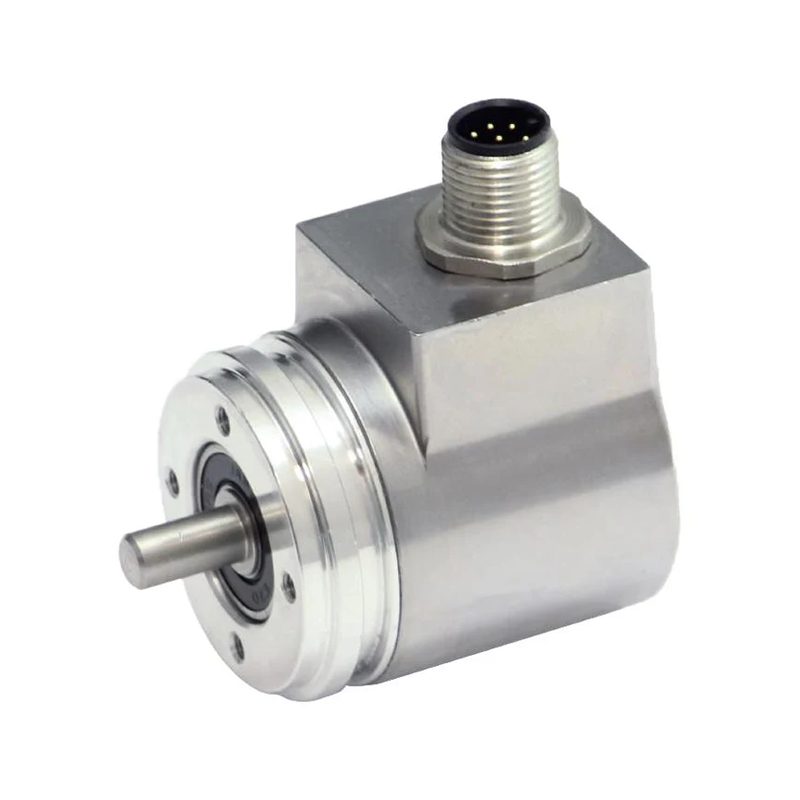

Pepperl+Fuchs ENA36TL-S06SA5-1516-IO-RBD01 Absolute Rotary Encoder, 18-30V DC, 6mm Shaft, 12000 RPM, IO-Link V1.1, IP65
The Pepperl+Fuchs ENA36TL-S06SA5-1516-IO-RBD01 is an industrial-grade absolute rotary encoder featuring wear-free magnetic Pure Line technology and an IO-Link V1.1 interface for seamless integration into PLCs, robotics, and automated machinery requiring high-resolution position feedback up to 31-bit.
Features
- Absolute rotary encoder with Pure Line magnetic sampling for long-term reliability.
- High 31-bit programmable resolution and configurable measuring range.
- IO-Link V1.1 interface for real-time data, parameterization, and diagnostics.
- Rugged IP65-rated housing supports operation from -40°C to +85°C.
- High-speed capability up to 12,000 RPM for demanding motion control.
Out of stock
The ENA36TL-S06SA5-1516-IO-RBD01 absolute rotary encoder from Pepperl+Fuchs utilizes a robust, wear-free magnetic sampling principle (Pure Line technology) to deliver precise angular position data. This method ensures exceptional long-term stability and resistance to contamination, making it ideal for harsh industrial environments. The encoder provides absolute position information immediately upon power-up, eliminating the need for a reference run.
Communication is handled via a standardized IO-Link V1.1 interface through a 5-pin M12 A-coded connector, enabling fast process data exchange, remote configuration, and detailed condition monitoring for predictive maintenance strategies. The device operates on a wide 18-30V DC supply, features a 6mm solid shaft, and is housed in a compact, IP65-protected casing for reliable performance in demanding applications such as packaging, material handling, and robotic systems.
Additional Information
| Weight | 0.35 kg |
|---|---|
| Dimensions | 6.8 × 6.8 cm |
