Pepperl+Fuchs ENA36TL-S10SA5-0016-IO-ABD01 Absolute Rotary Encoder, IO-Link, 12000 RPM, 18-30V DC, Diam-10mm
Pepperl+Fuchs ENA36TL-S10SA5-0016-IO-ABD01 Absolute Rotary Encoder, IO-Link, 12000 RPM, 18-30V DC, Diam-10mm - Image 2
SKU: SENS-2587
📋 GST Invoice Available

Pepperl+Fuchs ENA36TL-S10SA5-0016-IO-ABD01 Absolute Rotary Encoder, IO-Link, 12000 RPM, 18-30V DC, Diam-10mm

₹73,719.00 (Inclusive of all taxes)
Out of Stock

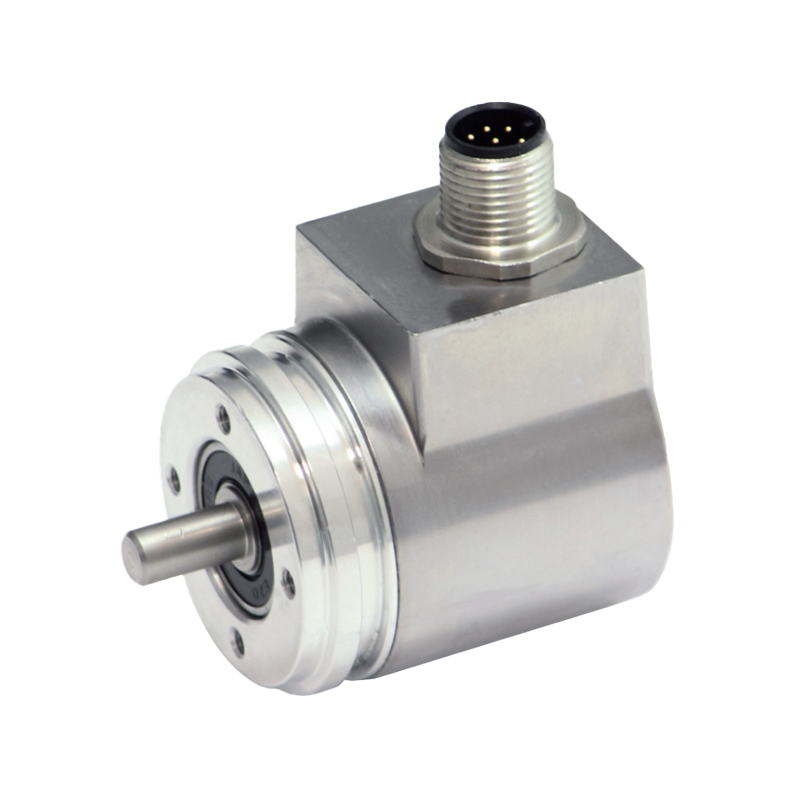

The Pepperl+Fuchs ENA36TL-S10SA5-0016-IO-ABD01 is an industrial-grade absolute rotary encoder featuring an IO-Link V1.1 interface for smart automation integration. It provides high-precision position feedback with programmable resolution up to 31-bit and is designed for robust operation in harsh environments with an IP65 rating and a wide -40°C to 80°C temperature range.

Features

  • Absolute rotary encoder with IO-Link V1.1 smart communication interface (COM3, 230.4 kBaud).
  • High-precision magnetic Pure Line technology offering programmable resolution up to 16-bit (31-bit overall).
  • Robust industrial construction with zinc-plated steel housing, stainless steel shaft, and IP65 protection rating.
  • Wide operating voltage range of 18-30V DC and a maximum rotational speed of 12,000 RPM.
  • Supports condition monitoring, diagnostics, and flexible parameterization (rotation direction, measurement range).

Out of stock

Description

The ENA36TL-S10SA5-0016-IO-ABD01 encoder utilizes wear-free magnetic sampling technology for precise and reliable absolute position measurement, ideal for closed-loop motion control systems. Its integrated IO-Link interface facilitates seamless data transfer, remote configuration, and real-time diagnostics within modern industrial networks, enabling predictive maintenance and reduced downtime.

Engineered for demanding environments, the encoder features a solid 10mm stainless steel shaft, a zinc-plated steel housing, and an IP65 rating for protection against dust and water jets. Its wide operating temperature range from -40°C to 80°C ensures consistent performance in extreme conditions, making it suitable for automation, robotics, and heavy machinery applications.

Key Features

  • IO-Link V1.1 interface enables smart sensor integration and bidirectional data communication.
  • Magnetic Pure Line sensing principle ensures contactless, wear-free operation and long service life.
  • High overall resolution up to 31-bit provides exceptional positional accuracy for precise control.
  • Robust industrial design with IP65-rated metal housing for reliable operation in harsh conditions.
  • Wide supply voltage range (18-30V DC) compatible with standard industrial DC power supplies.
  • Integrated status LEDs for immediate visual feedback on operational state and diagnostics.
  • M12, 5-pin A-coded connector ensures secure and standardized fieldbus connectivity.
  • Supports advanced functions like condition monitoring and programmable output parameters.

Applications

  • Precision position feedback in industrial robotics and automated guided vehicles (AGVs).
  • Angular position measurement and speed control in packaging and material handling machinery.
  • Closed-loop motion control systems in CNC machines, conveyors, and rotary tables.
  • Integration into Industry 4.0 and IIoT networks via IO-Link for predictive maintenance and data analytics.
  • Heavy-duty positioning applications in harsh environments such as food processing or outdoor machinery.

Technical Specifications

Manufacturer Part NumberENA36TL-S10SA5-0016-IO-ABD01
Device TypeAbsolute Rotary Encoder (Pure Line)
InterfaceIO-Link V1.1
Operating Voltage18 – 30 V DC
Maximum Rotational Speed12000 RPM
Protection RatingIP65
Overall ResolutionUp to 31 Bit
Power ConsumptionApprox. 1.5 W
No-load CurrentMax. 0.05A
Connector TypeM12, 5-pin, A-coded
IO-Link Transfer RateCOM3 (230.4 kBaud)
Operating Temperature-40°C to 80°C
Housing MaterialZinc plated steel, painted
Shaft MaterialStainless steel
Shaft Diameter10 mm
Length68 mm
Width68 mm
Weight270 g

Frequently Asked Questions

What is the communication interface of this encoder and how is it configured?

This encoder features an IO-Link V1.1 communication interface, operating at the COM3 baud rate of 230.4 kBaud. It uses a standard M12, 5-pin A-coded connector for connection to an IO-Link master port. The interface allows for bidirectional data transfer, remote parameterization (e.g., setting rotation direction or measurement range), and access to diagnostic data for condition monitoring.

What is the difference between the programmable and overall resolution?

The encoder offers a programmable resolution up to 16-bit per revolution, which can be set via the IO-Link interface to match application needs. The overall resolution of up to 31-bit refers to the total unique positions the encoder can report across its entire multi-turn range without requiring a homing sequence, providing extremely fine-grained absolute position data.

Is this encoder suitable for use in wet or dusty environments?

Yes, the encoder is built with a robust zinc-plated steel housing and carries an IP65 protection rating. This rating certifies it is dust-tight and protected against low-pressure water jets from any direction, making it well-suited for use in industrial environments with presence of dust, dirt, or occasional water spray.

What are the electrical requirements and power consumption?

The encoder operates from a 18-30V DC supply, compatible with standard 24V industrial DC systems. It has a maximum no-load current of 0.05A and a typical power consumption of approximately 1.5 watts. Ensure your power source is within this voltage range and can provide sufficient current for stable operation.

Package Includes

  • 1 x Pepperl+Fuchs ENA36TL-S10SA5-0016-IO-ABD01 Absolute Rotary Encoder

Additional Information

Weight 0.27 kg
Dimensions 6.8 × 6.8 cm
