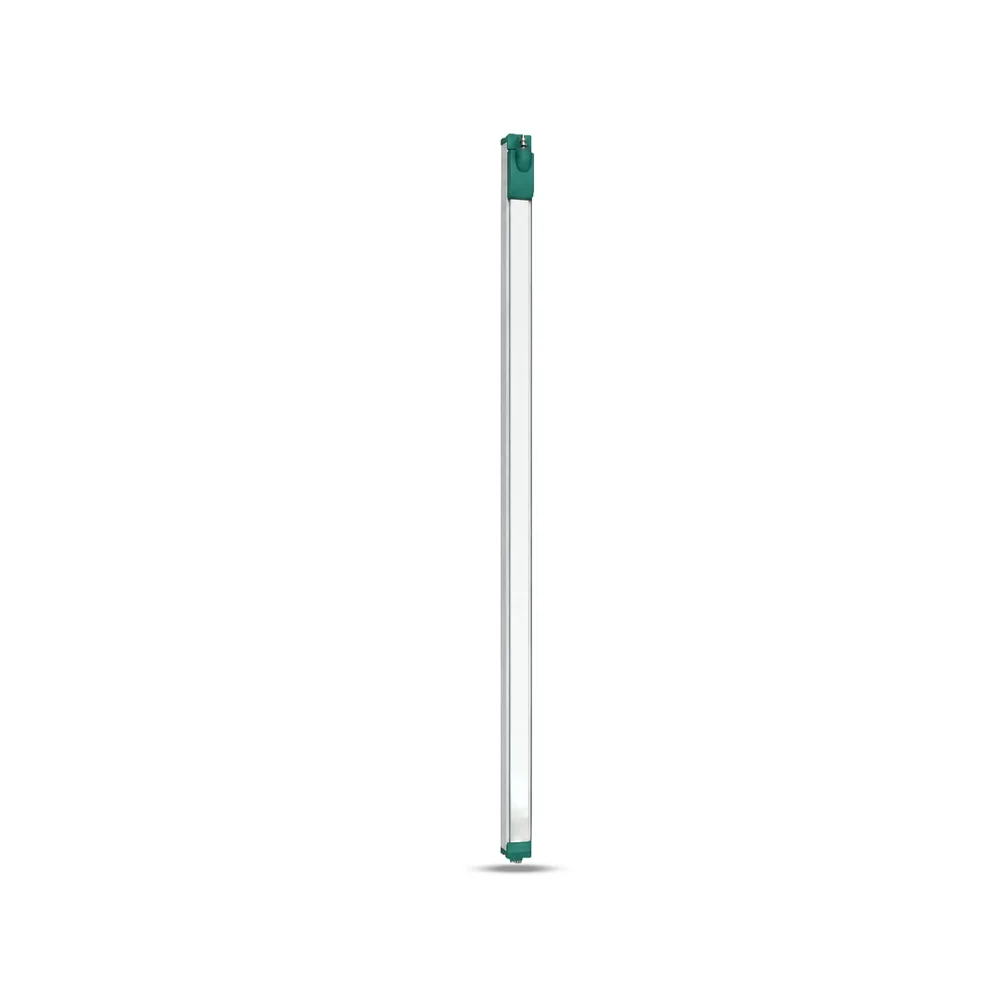

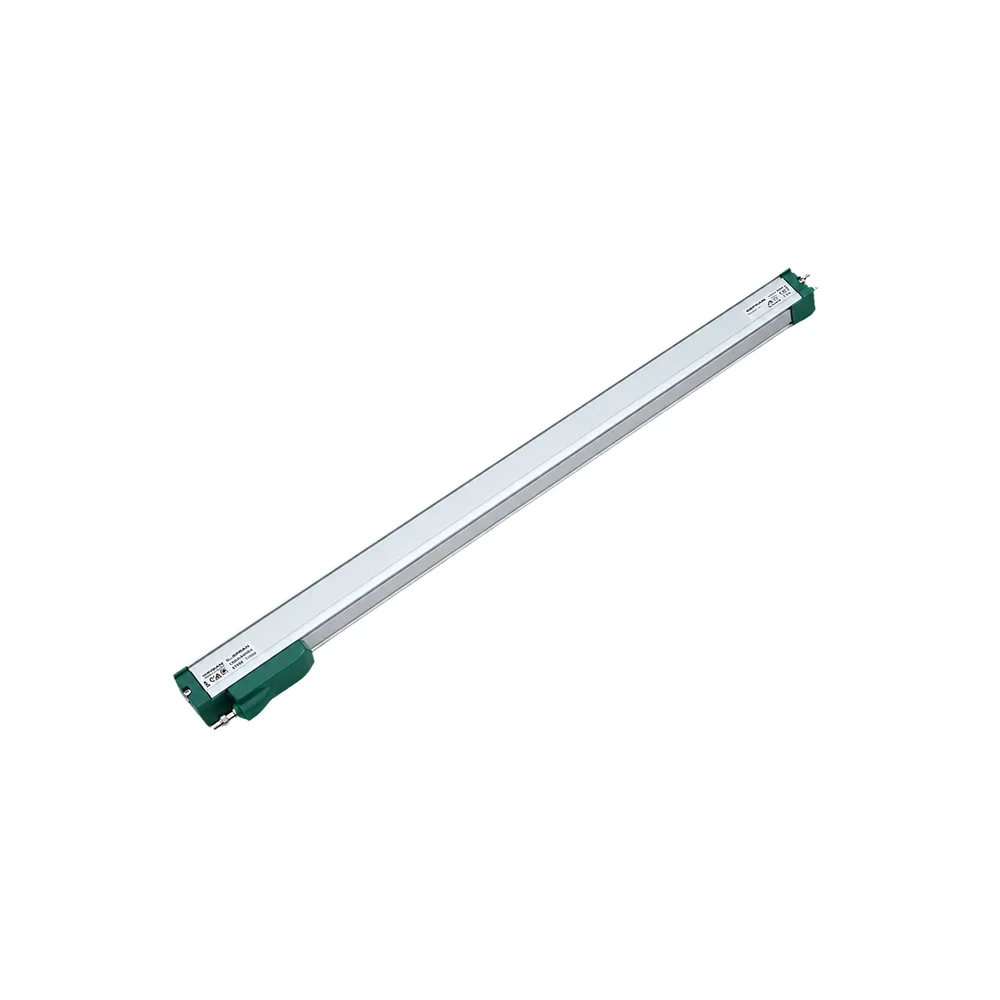

SOP KTF-R-800 Linear Displacement Sensor, 800mm Stroke, 10KΩ Analog Output, Pulling Rod-Type, 24VDC, 1m Cable
The SOP KTF-R-800 is a linear displacement sensor with an 800mm stroke, providing a 10KΩ potentiometric analog output for precise position feedback. Operating on 24VDC, it is designed for direct integration with industrial PLCs, controllers, and hydraulic systems.
Features
- 800mm stroke length for extended linear position measurement.
- 10KΩ potentiometric analog output for stable, noise-resistant signal transmission.
- Pulling rod-type design with IP65-rated housing for robust industrial use.
- 24VDC operating voltage compatible with standard industrial control systems.

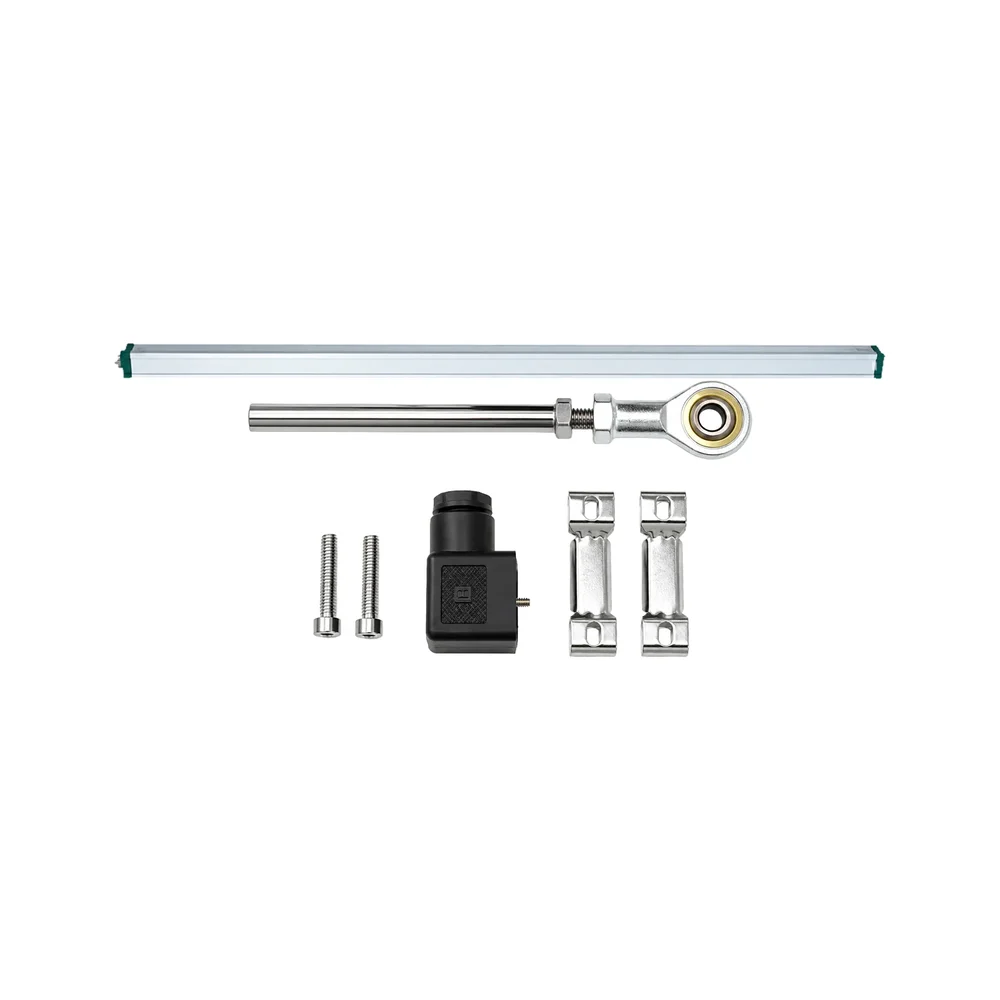

- Includes 1-meter cable and mounting accessories for straightforward installation.
Out of stock
The SOP KTF-R-800 linear displacement sensor utilizes a precision resistive potentiometer (potentiometric) sensing principle. As the pulling rod extends or retracts, the internal wiper moves along a resistive track, producing a corresponding change in output resistance proportional to the linear position. This analog signal provides continuous, high-resolution feedback suitable for closed-loop control systems.
Engineered for demanding environments, the sensor features an industrial metal housing with an IP65 ingress protection rating, safeguarding against dust and water jets. Its robust pulling rod and slide rod mechanical structure ensure reliable operation under vibration and mechanical wear, making it ideal for integration into hydraulic cylinders, injection molding machines, and precision machine tools.
Additional Information
| Weight | 1.123 kg |
|---|---|
| Dimensions | 11 × 8 × 8 cm |
