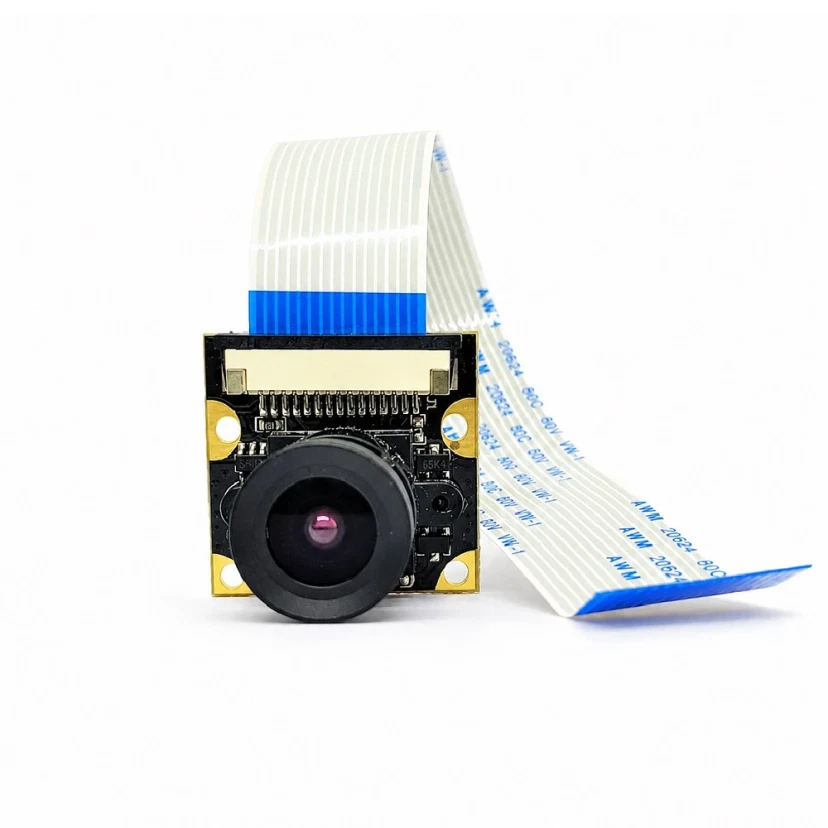

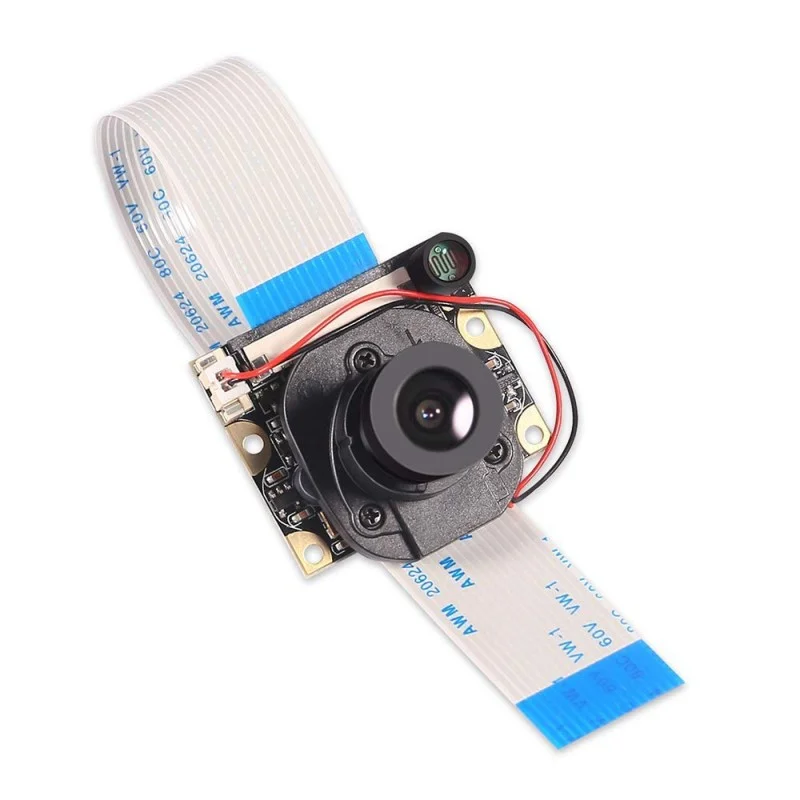

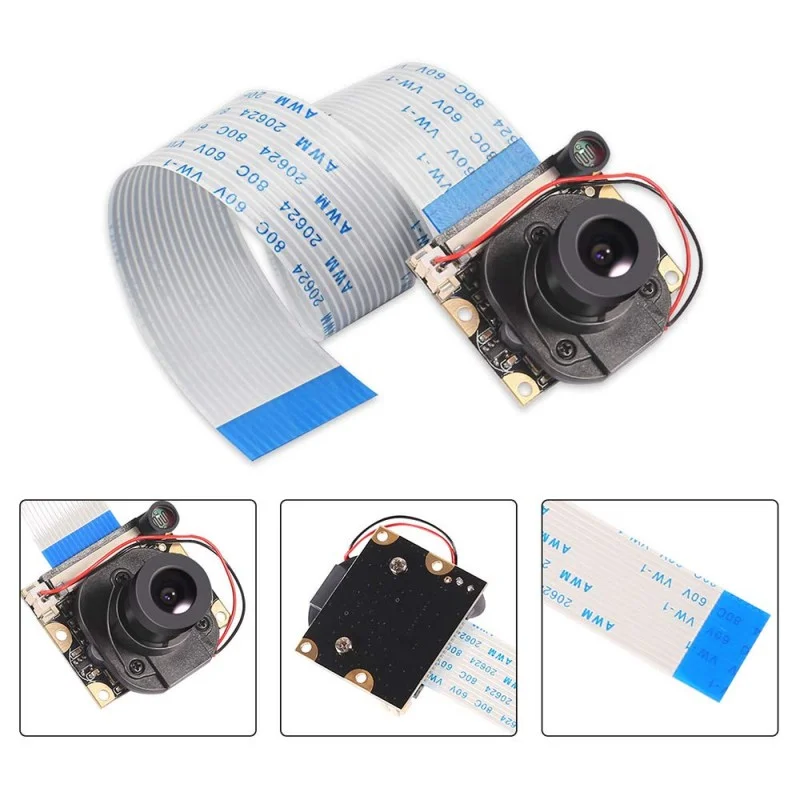

OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 w/ Auto Day/Night Mode
This OV5647 5MP camera module connects via the Raspberry Pi’s CSI interface, providing 1080p video and automatic IR-CUT filter switching for clear day and night vision. It is fully supported in Raspbian for embedded computer vision projects.
Features
- 5MP OV5647 sensor delivers 2592 x 1944 stills and 1080p @ 30fps video via Raspberry Pi CSI interface.

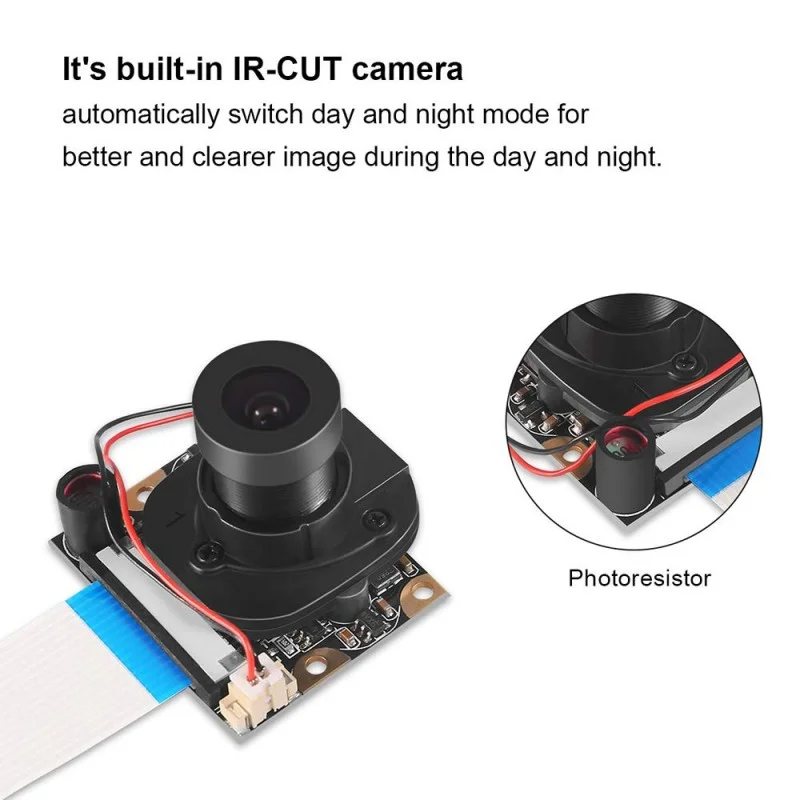

- Integrated IR-CUT filter and photoresistor enable automatic switching between day and night vision modes.
- Onboard 3.3V power output and screw holes support the attachment of external IR LEDs for enhanced low-light imaging.
- Compatible with all Raspberry Pi revisions (Pi 3, Pi 4) and supported in the latest Raspbian OS.

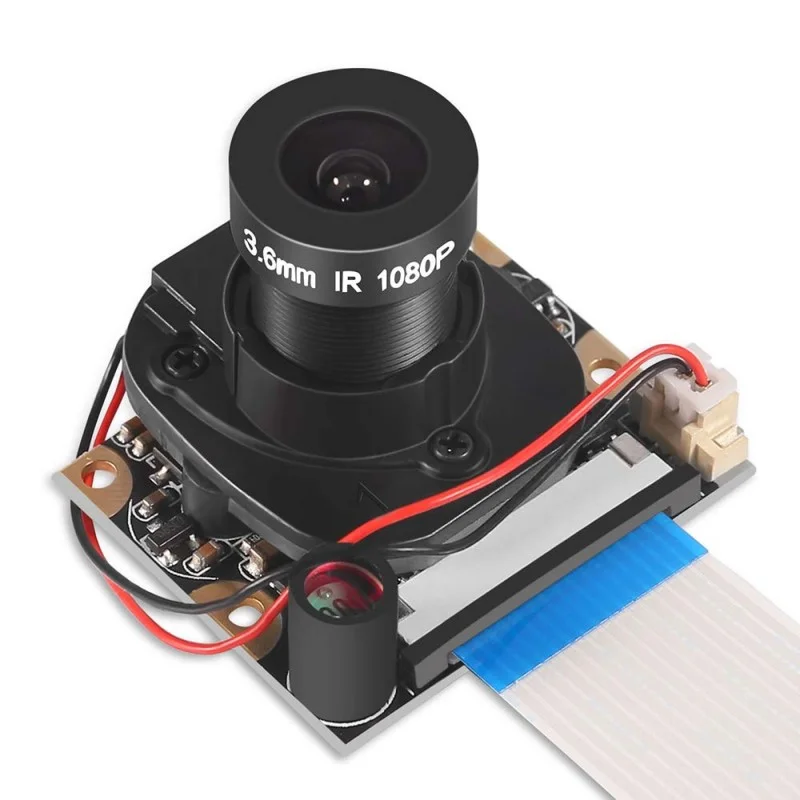

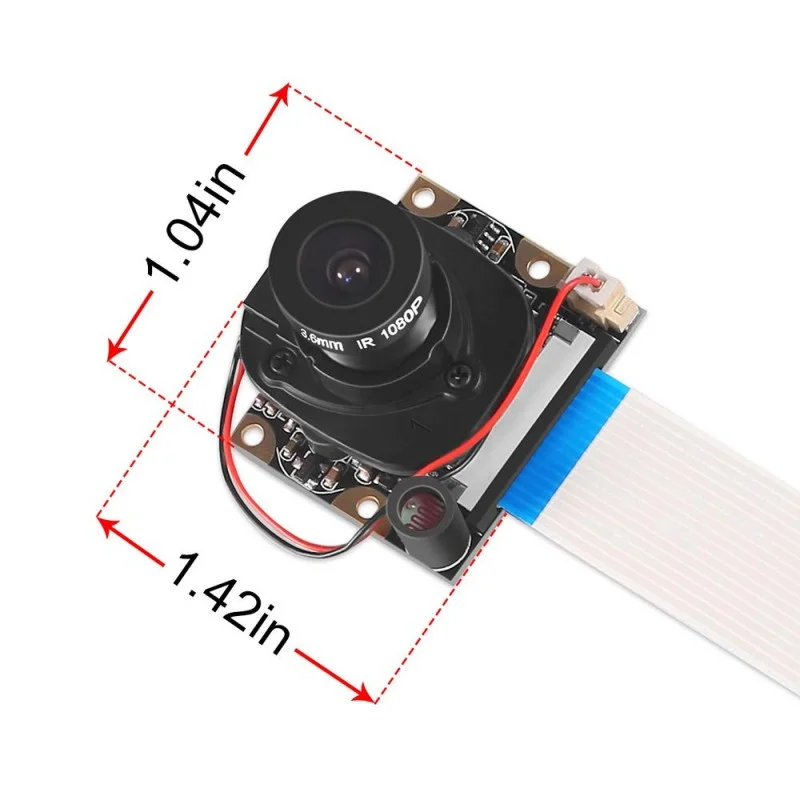

- Compact 32 x 31 x 28 mm form factor with a fixed-focus 3.6mm lens (F1.8) and 60° diagonal field of view.
Out of stock

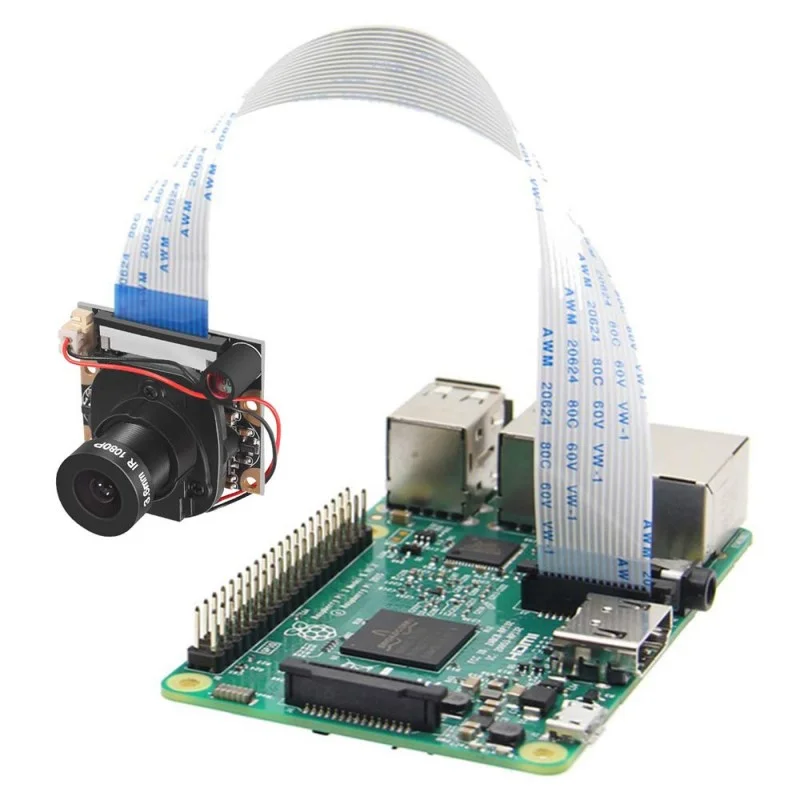

Designed for the Raspberry Pi ecosystem, this camera module leverages the dedicated CSI bus for high-bandwidth image data transfer. The 5-megapixel OV5647 CMOS sensor provides a native resolution suitable for both high-quality still captures and full HD video streaming. Its core innovation is the embedded IR-CUT filter paired with an onboard ambient light sensor (photoresistor), which automatically toggles the filter to block infrared light during the day for true color reproduction and allows it in at night for maximum sensitivity with IR illumination.
The module includes provisions for system integrators to add external infrared LEDs, with onboard screw holes serving dual purposes for mechanical mounting and delivering 3.3V to 5V power to attached lights. An adjustable resistor lets developers fine-tune the ambient light threshold that triggers the day/night mode switch, enabling customization for specific deployment environments. This makes it an ideal, low-power vision sensor for Raspberry Pi-based IoT applications requiring reliable 24/7 monitoring.
Additional Information
| Weight | 0.011 kg |
|---|---|
| Dimensions | 3.2 × 3.1 × 2.8 cm |
