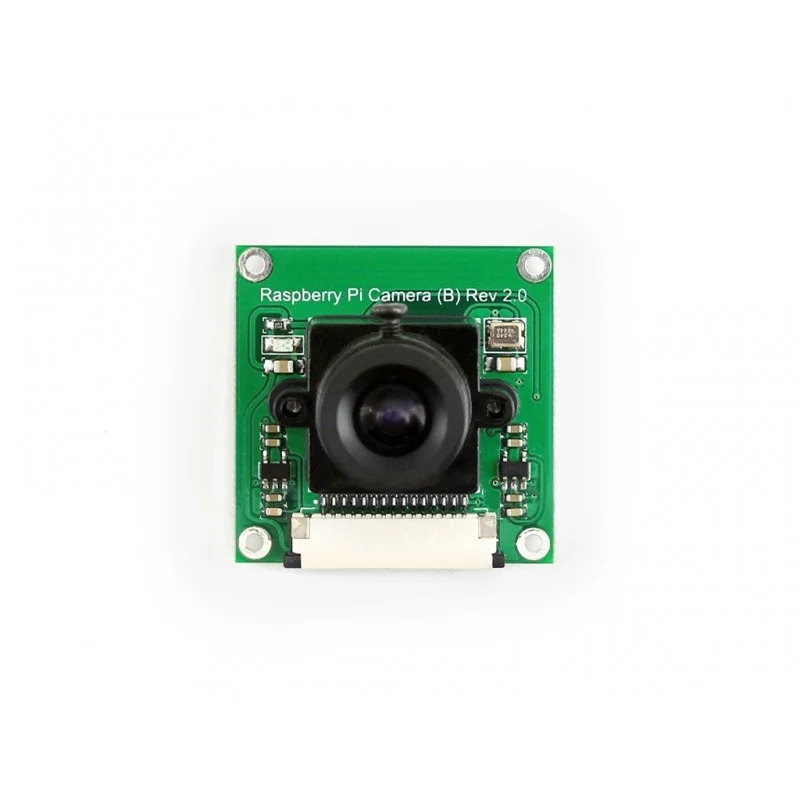

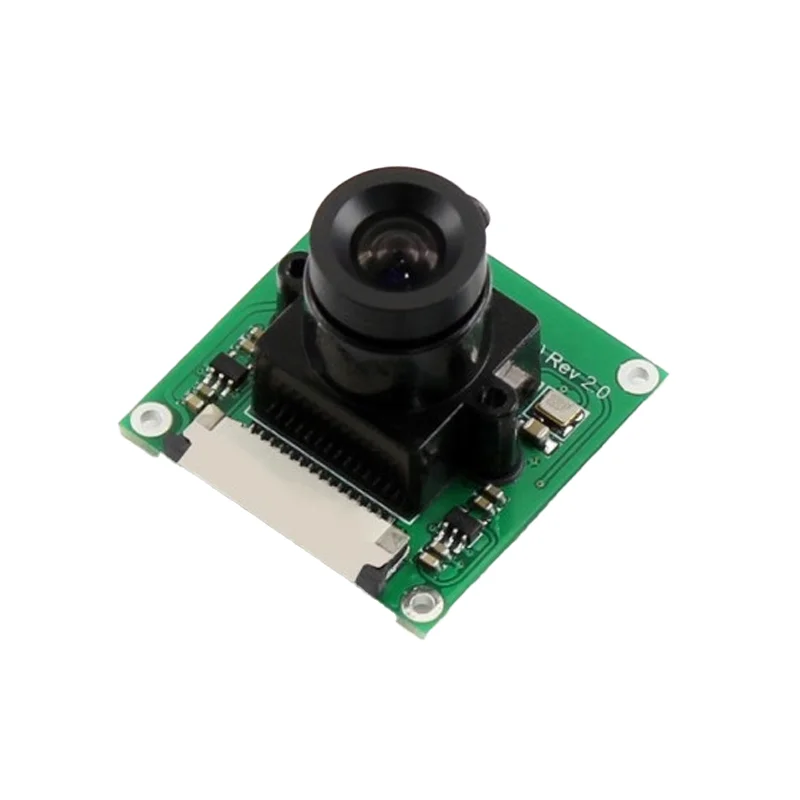

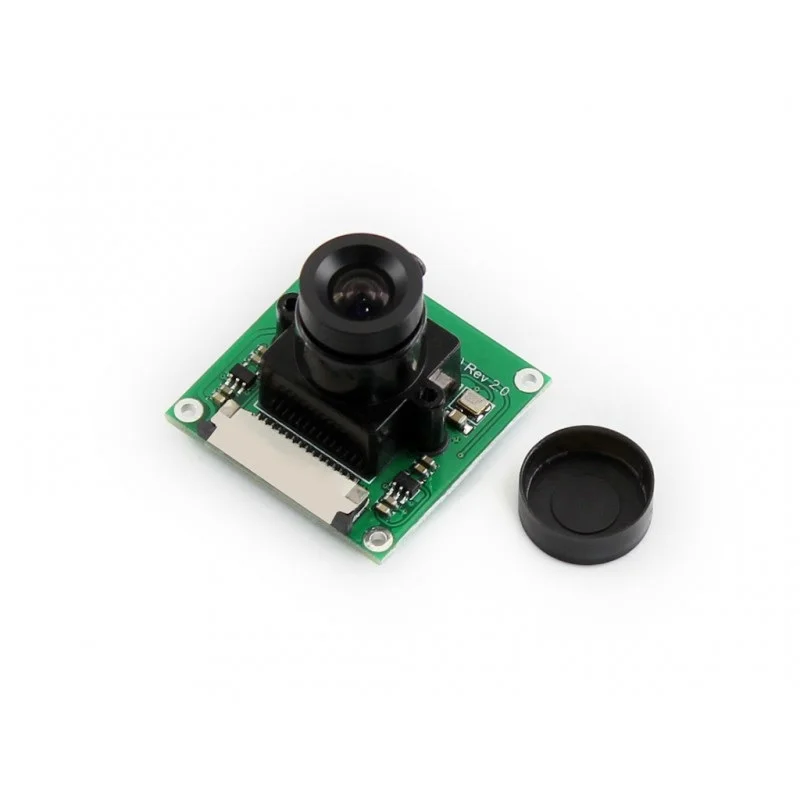

Waveshare Raspberry Pi Camera (B) Adjustable-Focus 5MP OV5647 Module
The Waveshare Raspberry Pi Camera (B) is a 5MP adjustable-focus camera module built around the OV5647 sensor, designed for direct connection to Raspberry Pi boards via a 15-pin FFC cable. It delivers 1080p Full HD video and is compatible with all Raspberry Pi models for robotics, security, and DIY imaging projects.
Features
- 5MP OV5647 sensor delivers sharp 1080p Full HD video for detailed imaging and video capture.
- Adjustable-focus lens with a 6mm focal length allows precise focus tuning from close-up to distant subjects.
- Wide compatibility with all Raspberry Pi models via the standard 15-pin FFC interface for easy integration.
- Compact 32mm x 32mm form factor and f/2.0 aperture enable low-light performance in space-constrained projects.
- Ideal for robotics, security systems, and DIY applications requiring flexible, high-quality visual input.
Out of stock
The Waveshare Raspberry Pi Camera (B) is a compact imaging module engineered for the Raspberry Pi ecosystem, featuring a 5-megapixel OV5647 CMOS sensor. Its manually adjustable-focus lens provides a 6mm focal length and an f/2.0 aperture, offering developers the flexibility to fine-tune focus for various applications, from macro details to broader scenes, while maintaining good performance in lower-light conditions.

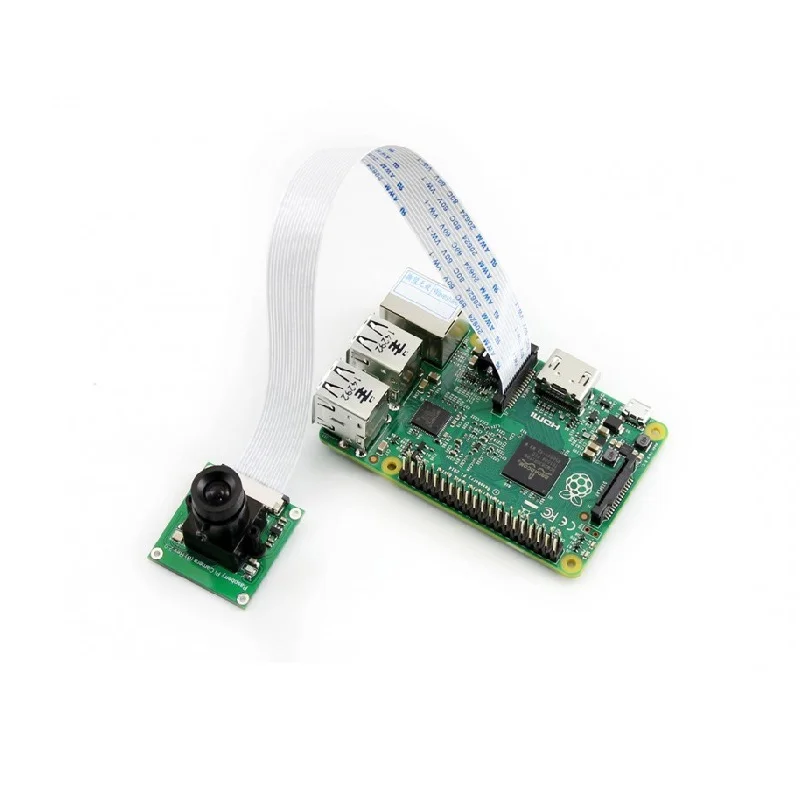

With a diagonal field of view of 60.6°, this camera module outputs video at up to 1080p resolution. It connects seamlessly to any Raspberry Pi model’s dedicated Camera Serial Interface (CSI) port via the included 15-pin flat flex cable (FFC). The module’s small footprint and standardized interface make it a versatile component for embedding computer vision into prototypes and final products.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 11 × 8 × 3 cm |
