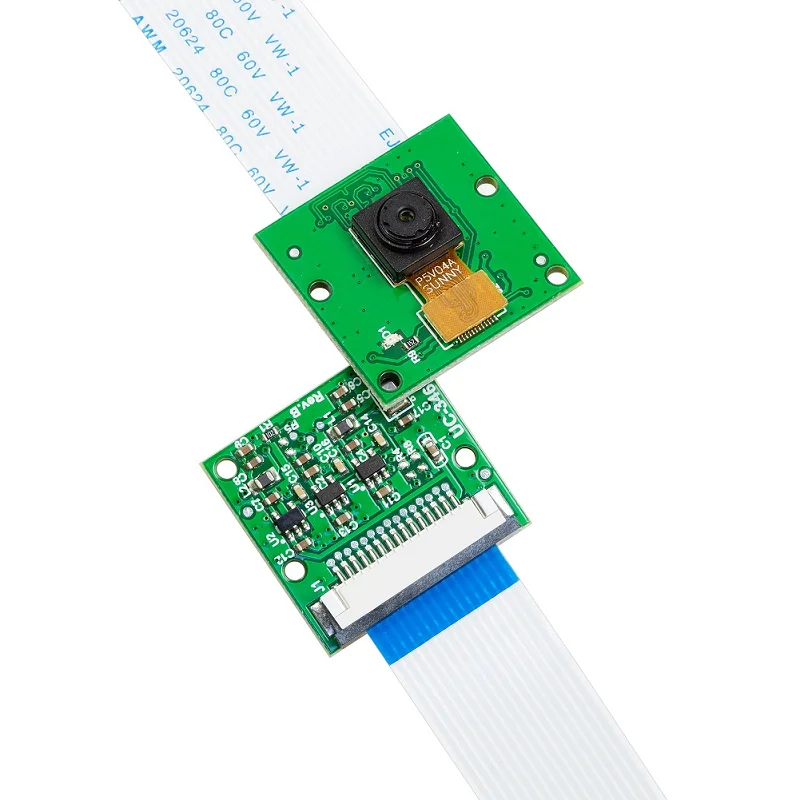

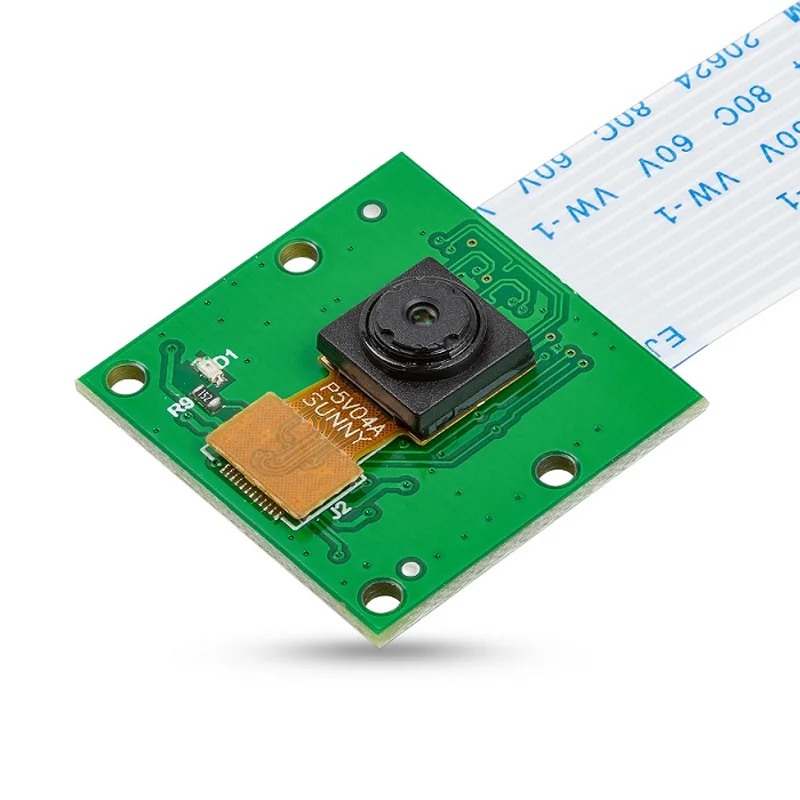

Arducam 5MP OV5647 NoIR Camera Module for Raspberry Pi 4/3B+/3
Arducam 5MP OV5647 NoIR Camera Module for Raspberry Pi 4, 3B+, and 3, featuring an IR-sensitive sensor for night vision and computer vision projects.
Features
- 5MP Omnivision OV5647 NoIR sensor without an IR filter for enhanced low-light and night vision sensitivity.
- Compatible with Raspberry Pi 4, 3B+, 3, 2, and Model A/B/B+ via the CSI camera interface.
- Delivers 1080p video at 30fps and still images at 2592 x 1944 resolution.
- Compact 300mm flex cable with a 6mm neck width for integration into tight spaces like endoscopes.
- Fixed-focus lens with a 54° x 41° field of view and a focus range from 1 meter to infinity.
Out of stock
The Arducam 5MP OV5647 NoIR Camera Module is a specialized add-on for Raspberry Pi single-board computers, designed for developers and makers requiring infrared-sensitive imaging. Its omission of an IR filter makes it uniquely sensitive to infrared light, enabling applications in night vision, security surveillance, and scientific imaging where standard cameras fail.

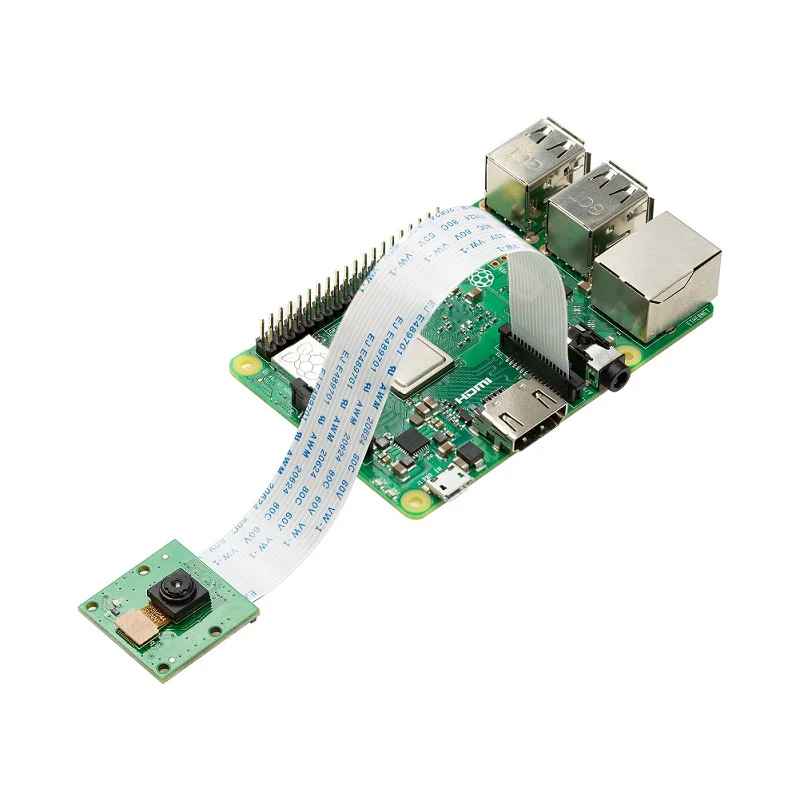

This module connects directly to the Raspberry Pi’s CSI (Camera Serial Interface) port, providing a streamlined hardware interface for high-definition video capture. The compact form factor, featuring a long, thin flex cable, allows for flexible mounting in constrained environments, from DIY endoscopes to embedded monitoring systems. It is fully software-compatible with standard Raspberry Pi camera libraries, enabling quick integration into Python, OpenCV, or other computer vision frameworks.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 30 × 2 cm |
