Waveshare IMX296 1.6MP Global Shutter Mono Camera Module for Raspberry Pi

Connect the camera using the provided 15-pin CSI ribbon cable to the CSI port on your Raspberry Pi. You may need to enable the camera interface via `raspi-config` under 'Interfacing Options'. The module is recognized by the Raspberry Pi OS camera stack, and you can capture images using libcamera or the legacy raspistill/raspivid commands after configuration. Ensure the ribbon cable is inserted with the correct orientation to avoid damage.

A global shutter exposes all pixels of the sensor simultaneously, capturing a single instant in time. This eliminates motion blur and distortion (like the 'jello effect') when imaging fast-moving objects or when the camera is in motion. Rolling shutters expose pixels row-by-row, which can cause skewing. The IMX296's global shutter is essential for precision machine vision, robotics, and any application where timing and image fidelity during movement are critical.

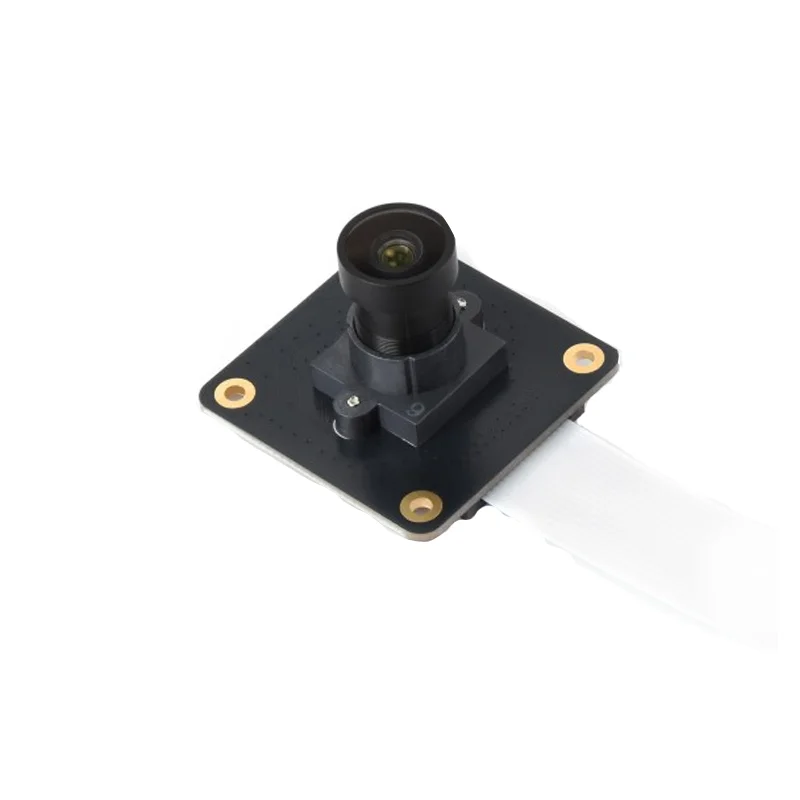

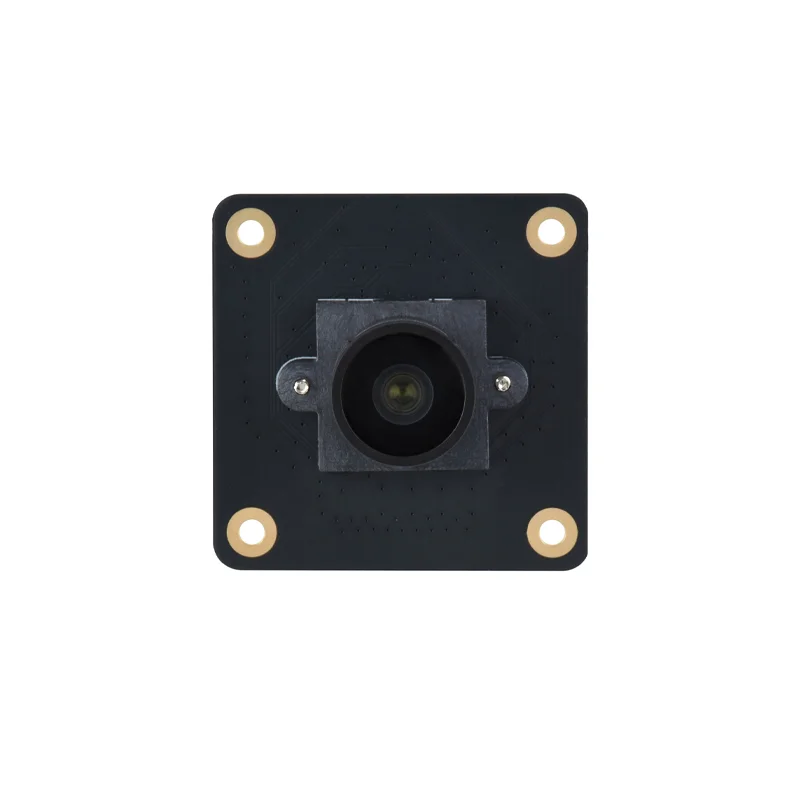

Yes, the standard M12 (S-mount) thread allows you to attach a wide variety of compatible lenses. You can select lenses based on focal length (e.g., 2.8mm, 6mm) for different fields of view, aperture for light control, and lens type (e.g., wide-angle, telephoto). Ensure the lens is designed for a 1/2.9-inch sensor format to avoid vignetting. Changing the lens allows you to adapt the camera for specific applications like close-up inspection or panoramic monitoring.

Use the standard Raspberry Pi OS camera utilities. For stills and video, you can use the `libcamera-still` and `libcamera-vid` commands. For programming, libraries like OpenCV (with the `cv2.VideoCapture` using the libcamera backend), Picamera2, or SimpleCV are common. Ensure your OS is updated and the camera interface is enabled. Example Python scripts can capture frames for processing in your machine learning or computer vision pipeline directly.
