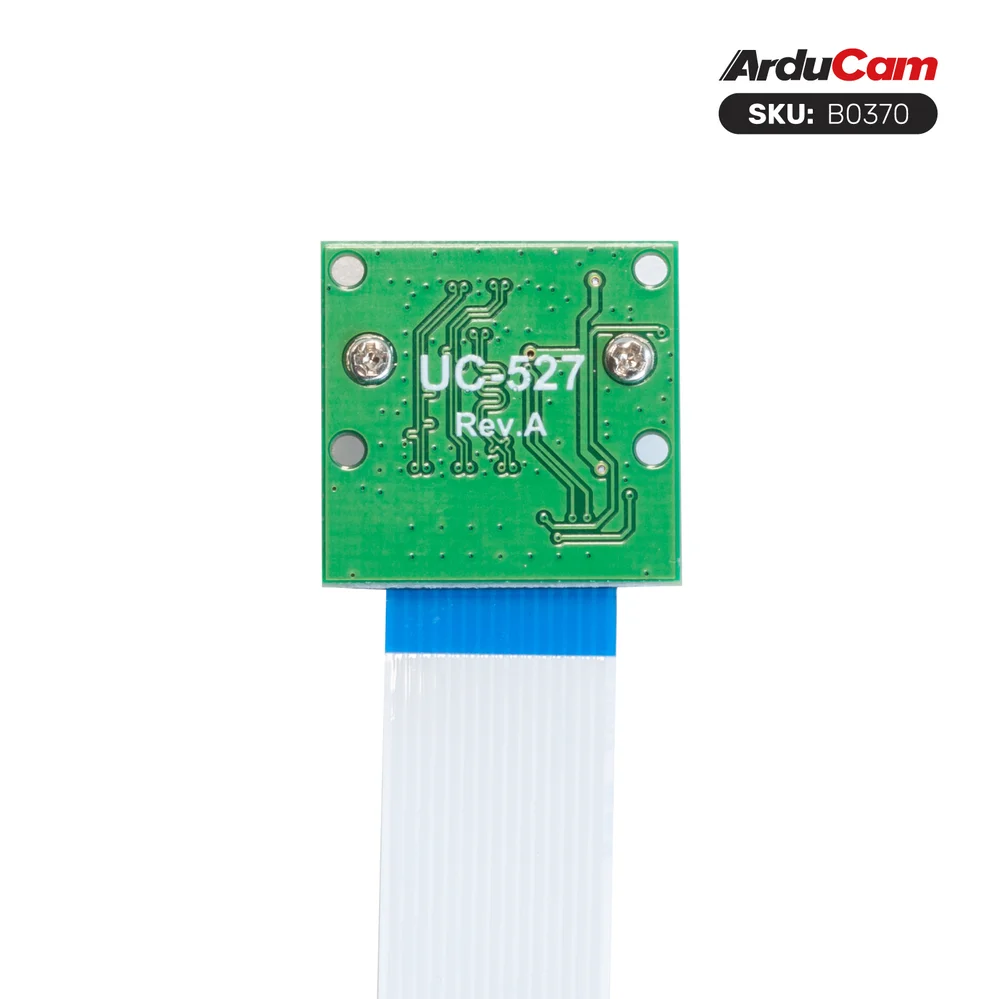

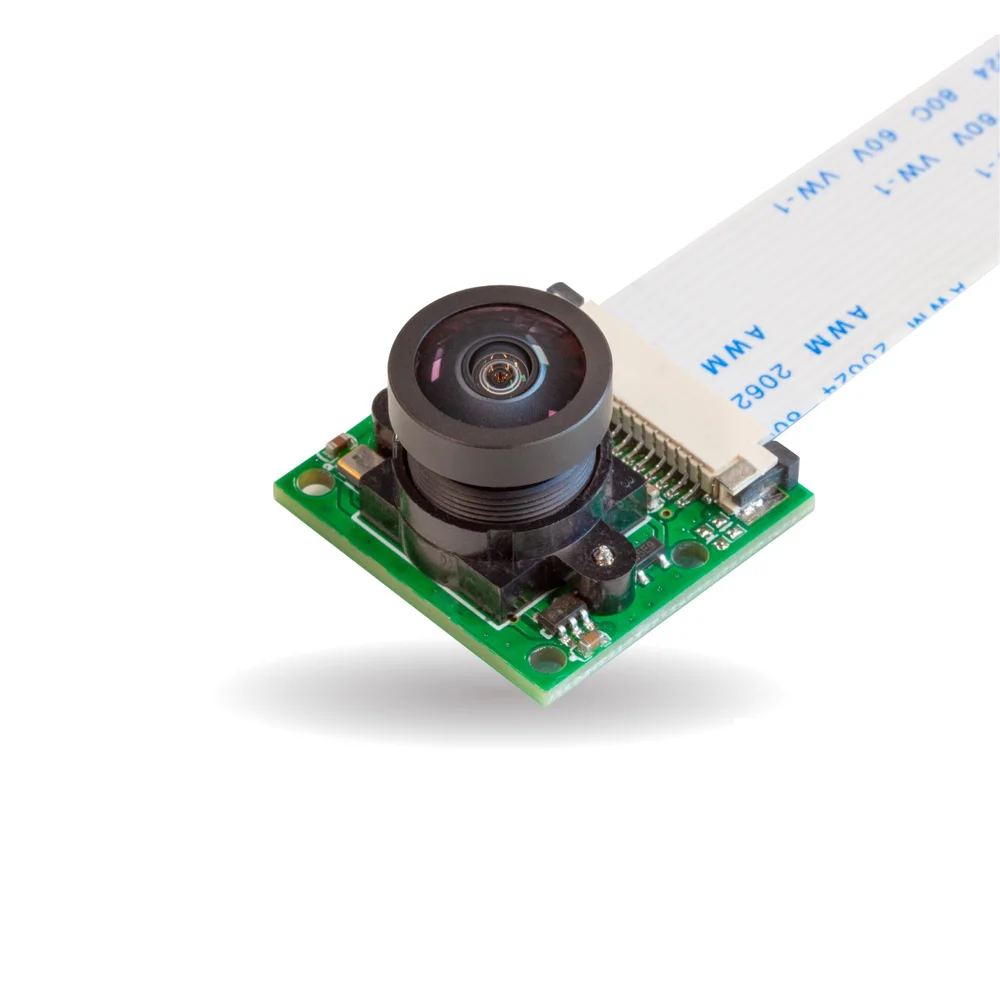

Arducam MINI OV5647 Wide Angle Camera Module for Raspberry Pi

Locate the Camera Serial Interface (CSI) port on your Raspberry Pi board, typically situated between the HDMI and audio ports. Carefully lift the plastic clip on the CSI connector, insert the included 15-pin FPC ribbon cable with the blue strip facing away from the Ethernet/USB ports, and press the clip back down to secure it. Ensure the other end is connected to the camera module's socket. Power on the Pi and enable the camera interface via 'sudo raspi-config' under 'Interface Options' for immediate use with Raspbian.

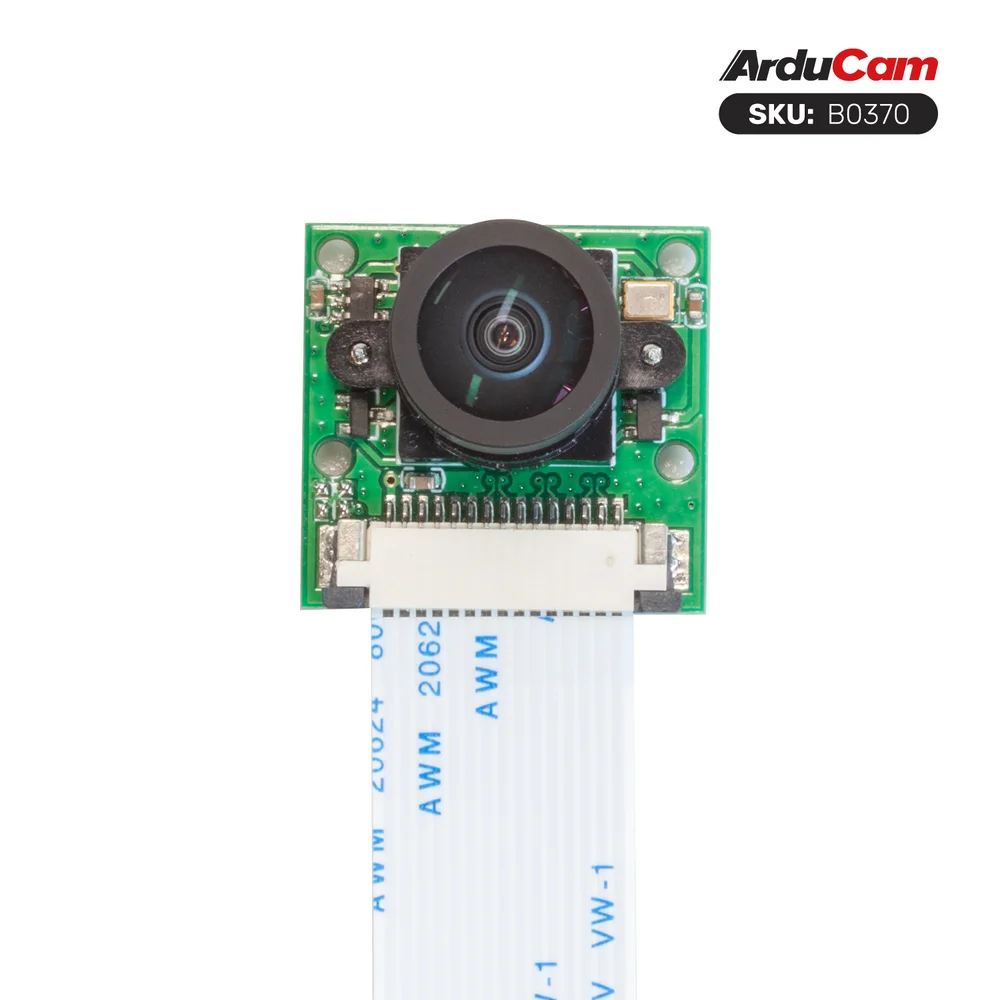

Yes, the Arducam MINI OV5647 features an M12x0.5 threaded lens holder, allowing for manual focus adjustment. Gently rotate the lens barrel clockwise or counter-clockwise to change the focal point. This is useful for fine-tuning sharpness for objects at varying distances, from close-up macro shots to infinity focus for distant scenes, making it adaptable for different project requirements without needing specialized tools.

The module supports multiple video modes leveraging the OV5647 sensor's capabilities. Key modes include 1920x1080 (1080p) at 30 frames per second for full HD video, 1280x720 (720p) at 60 fps for smoother motion, and 640x480 (480p) at 90 fps for high-speed capture. These are configured through software libraries like Picamera2 or OpenCV on the Raspberry Pi, allowing developers to select the optimal balance of resolution and frame rate for their application.

Yes, the Arducam MINI OV5647 is fully compatible with Raspberry Pi 4, 3, 3 B+, and other models featuring the standard 15-pin CSI camera connector. The interface and driver support are consistent across these boards within the Raspberry Pi ecosystem. You simply connect the included ribbon cable and enable the camera interface in the Raspberry Pi OS. The module draws power from the 3.3V rail, which is standard across all these Pi versions.
