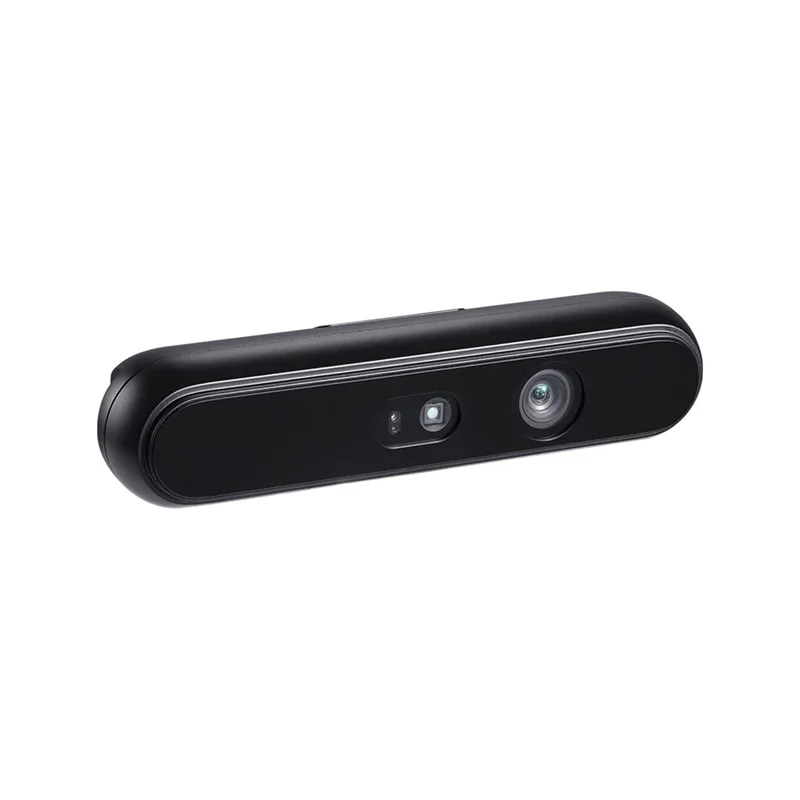

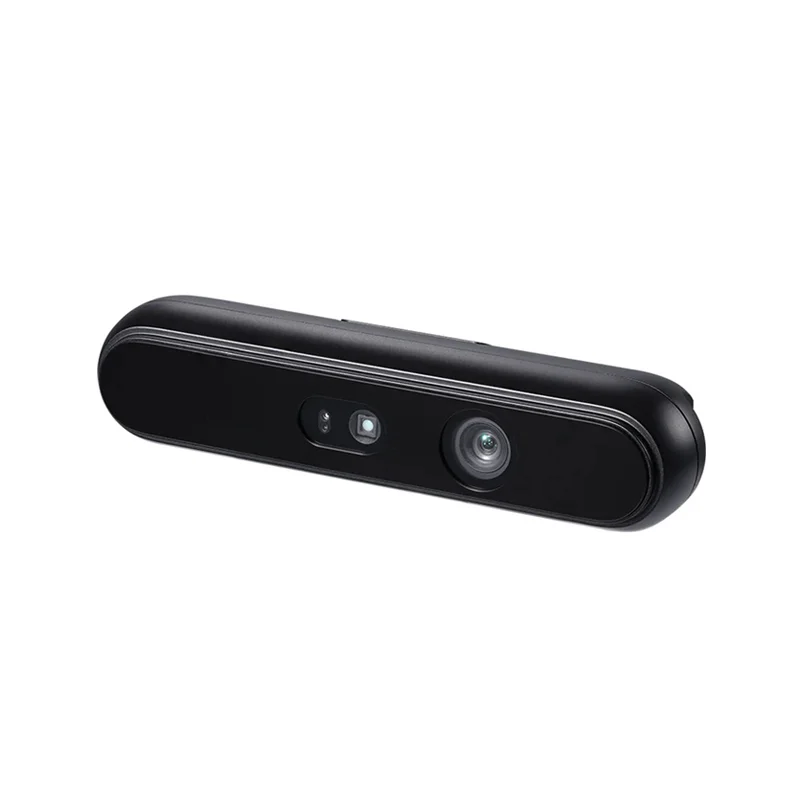

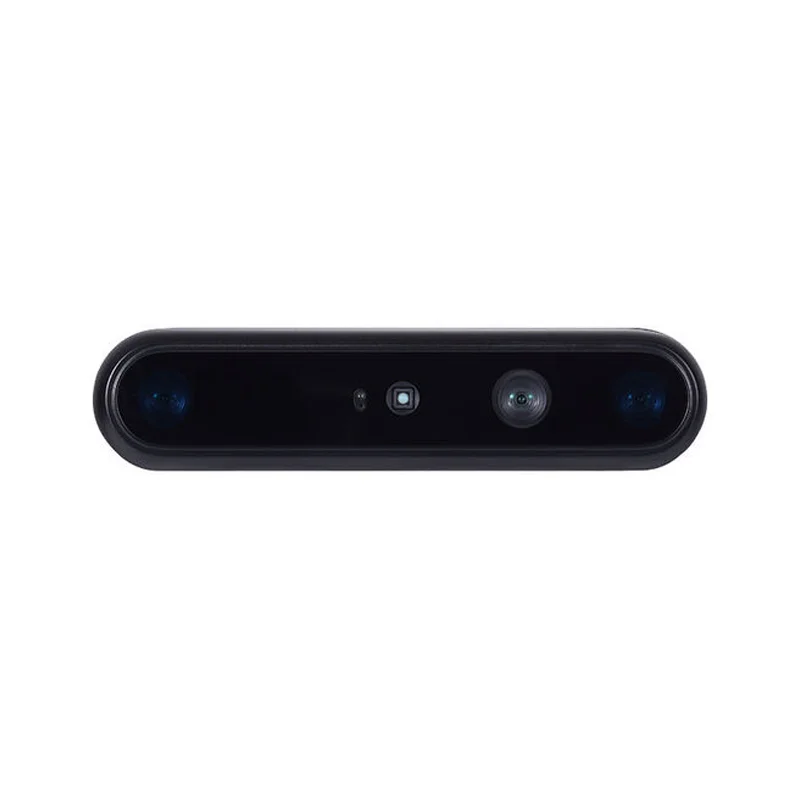

Orbbec Gemini 336L Stereo Depth Camera w/ Active IR & IMU
The Orbbec Gemini 336L is a high-precision stereo depth camera integrating both active and passive IR vision with a custom ASIC for real-time depth and RGB data. It delivers robust 3D sensing from complete darkness to bright sunlight via a single USB-C connection, ideal for robotics and computer vision applications.
Features
- Active + Passive Stereo Vision: Combines IR projector and stereo imaging for reliable depth sensing in any lighting condition, from total darkness to direct sunlight.
- Onboard ASIC Processing: Features Orbbec’s custom ASIC for low-latency depth computation and color alignment, reducing host CPU/GPU load.
- High-Resolution Depth Stream: Captures depth data at 1280×800 resolution and 30 fps with a wide 90°×65° field of view for detailed environmental mapping.
- Integrated IMU & Sync Support: Built-in inertial measurement unit and multi-camera synchronization enable stable tracking and scalable multi-sensor setups.

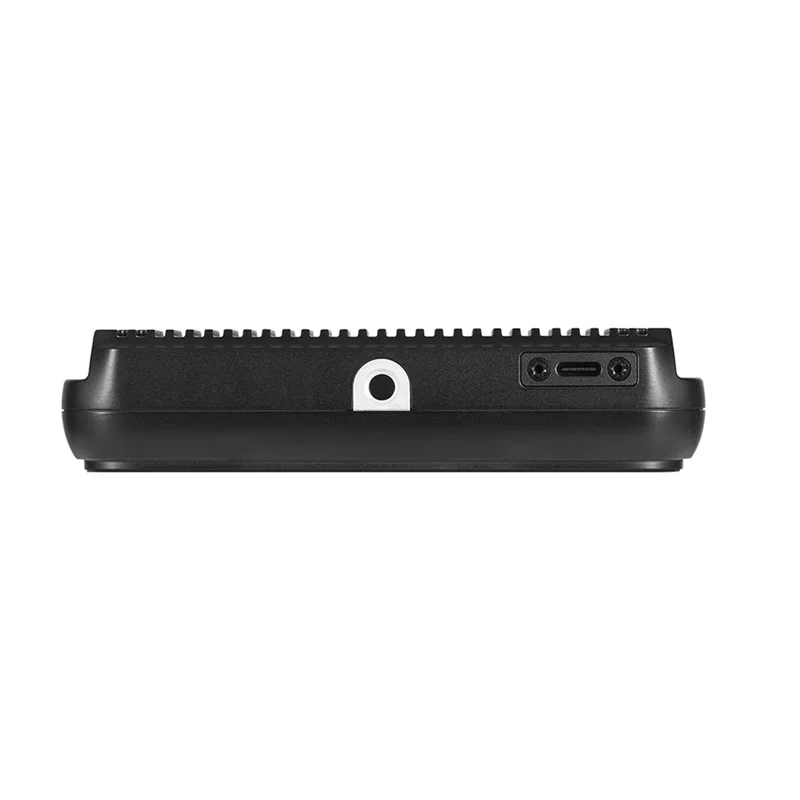

- Single-Cable USB-C Operation: Simplified connectivity with USB-C for both data transfer and power (~3W), enabling easy integration into mobile and embedded systems.
Out of stock
The Orbbec Gemini 336L Stereo Depth Camera is engineered for demanding 3D perception tasks, merging active IR projection with passive stereo imaging. This hybrid approach, powered by Orbbec’s proprietary ASIC, ensures consistent depth accuracy and robustness across challenging and variable lighting environments, eliminating the need for external processing hardware.
With a frame rate of 30 fps at 1280×800 resolution and a broad 90°×65° field of view, the camera provides high-fidelity spatial data for dynamic scene analysis. The integrated IMU corrects for motion artifacts, while multi-camera sync capabilities allow for the creation of expansive, coordinated sensor arrays. Its compact, low-power design, operating from -10°C to 50°C, makes it suitable for deployment on autonomous platforms and in industrial settings.
Additional Information
| Weight | 0.135 kg |
|---|---|
| Dimensions | 12.4 × 2.9 cm |
