Luckfox Aura Linux SBC: 2GB RAM, 64GB eMMC, Wi-Fi 6, PoE

₹17,059.00 (Inclusive of all taxes)
Out of Stock

The Luckfox Aura is a high-performance Linux single-board computer powered by a quad-core Arm Cortex-A53 processor, 2GB LPDDR4X RAM, and 64GB eMMC. It runs Debian/Buildroot and integrates a 3 TOPS NPU for AI acceleration, Wi-Fi 6, Bluetooth 5.4, and PoE-capable Gigabit Ethernet for robust edge computing and IoT applications.

Features

  • Quad-core Cortex-A53 CPU @1.6GHz with 2GB LPDDR4X RAM and 64GB eMMC for responsive Linux operation.
  • Integrated 3 TOPS NPU accelerates AI inference for computer vision, object detection, and edge ML workloads.
  • Comprehensive connectivity with Wi-Fi 6, Bluetooth 5.4, Gigabit Ethernet (PoE support), and four USB ports.
  • Dual MIPI CSI interfaces and 4K H.264/H.265 encode/decode enable advanced multimedia and camera applications.
  • 40-pin Raspberry Pi-compatible GPIO header and TF card slot offer extensive hardware expandability for makers and integrators.

Out of stock

Description

The Luckfox Aura is a feature-rich Linux development platform engineered for demanding AIoT and embedded applications. Its Rockchip-based architecture combines a capable quad-core Arm Cortex-A53 application processor with a dedicated 3 TOPS Neural Processing Unit (NPU), enabling efficient parallel execution of mainstream AI frameworks and complex vision algorithms at the edge. The substantial 2GB LPDDR4X memory and 64GB onboard eMMC storage ensure smooth multitasking and fast boot times for Debian or Buildroot systems.

Designed for seamless integration, the board provides dual 4-lane MIPI CSI interfaces for stereo vision or multi-camera setups, alongside a MIPI DSI display output. Its extensive I/O includes a PoE-capable Gigabit Ethernet port, Wi-Fi 6, Bluetooth 5.4, USB 3.0, and a 40-pin GPIO header compatible with Raspberry Pi HATs, making it a versatile base for robotics, industrial automation, smart gateways, and multimedia streaming projects.

Key Features

  • High-performance edge AI platform with a dedicated 3 TOPS NPU supporting INT4/INT8/INT16/FP16 precision.
  • Robust multimedia engine supporting 4K@30fps H.264/H.265 video encoding and decoding for streaming and recording.
  • Dual 4-lane MIPI CSI camera interfaces facilitate advanced stereo vision, depth sensing, and surveillance applications.
  • Professional-grade connectivity suite featuring Wi-Fi 6 (802.11ax), Bluetooth 5.4, and Gigabit Ethernet with Power-over-Ethernet (PoE) capability.
  • Expansive storage and I/O with 64GB eMMC, a microSD (TF) card slot, four USB 2.0 ports, one USB 3.0 Type-C, and a 40-pin GPIO header.
  • Runs full-featured Linux distributions like Debian and Buildroot, providing a familiar environment for software development.
  • Compact 87x56mm form factor with comprehensive cooling options suitable for embedded and industrial enclosures.

Applications

  • Edge AI and computer vision gateways for object detection, facial recognition, and anomaly detection.
  • Industrial IoT controllers and PLCs for automation, monitoring, and data acquisition systems.
  • Multimedia streaming devices and network video recorders (NVR) with 4K encode/decode.
  • Robotics and drone control systems leveraging real-time sensor fusion and motor control.
  • Smart home hubs and high-performance IoT gateways integrating Wi-Fi, Bluetooth, and Ethernet connectivity.

Technical Specifications

ProcessorQuad-core Arm Cortex-A53 @1.6GHz
RAM2GB LPDDR4X
Storage64GB eMMC
NPU Performance3 TOPS (INT8)
Video Codec4K@30fps H.264/H.265 Encode/Decode
Camera InterfaceDual MIPI CSI 4-lane
Display InterfaceMIPI DSI 4-lane (1080p@60fps)
USB Ports4x USB 2.0 Type-A, 1x USB 3.0 Type-C
NetworkWi-Fi 6, Bluetooth 5.4, Gigabit Ethernet (PoE)
GPIO40-pin header (Raspberry Pi compatible)
ExpansionMicroSD (TF) Card Slot
OS SupportBuildroot, Debian
Power Input5V DC
Dimensions87 x 56 mm

Frequently Asked Questions

What operating systems are supported by the Luckfox Aura board?

The Luckfox Aura officially supports Buildroot and Debian Linux distributions. You can download pre-built images from the manufacturer's wiki. Flashing is typically done via a USB-C cable using the Rockchip upgrade tool or dd command to the eMMC, providing a full desktop or headless server environment for application development.

How do I connect cameras and displays to this development board?

Utilize the dual 4-lane MIPI CSI interfaces for connecting compatible cameras (up to 12MP). For display output, the 4-lane MIPI DSI port supports 1080p@60fps. You will need appropriate FPC cables and may need to configure the device tree for your specific sensor or screen. The 40-pin GPIO also allows for additional SPI/I2C display or sensor attachments.

What is the power requirement and how do I enable Power-over-Ethernet?

The board requires a stable 5V DC input via the USB-C port or GPIO header. For Power-over-Ethernet (PoE), you need an external IEEE 802.3af/at PoE injector or switch that delivers 5V output, connected via the provided IPEX-to-SMA cables and an appropriate PoE splitter module compatible with the board's 5V input specification to avoid damage.

Can I use the integrated NPU for TensorFlow Lite or PyTorch models?

Yes, the 3 TOPS NPU supports common AI frameworks through Rockchip's RKNN toolkit. You must convert your TensorFlow Lite or PyTorch model to the proprietary RKNN format using the provided conversion tools on a host PC, then deploy and run the optimized model on the board's NPU via the RKNN runtime library for accelerated inference.

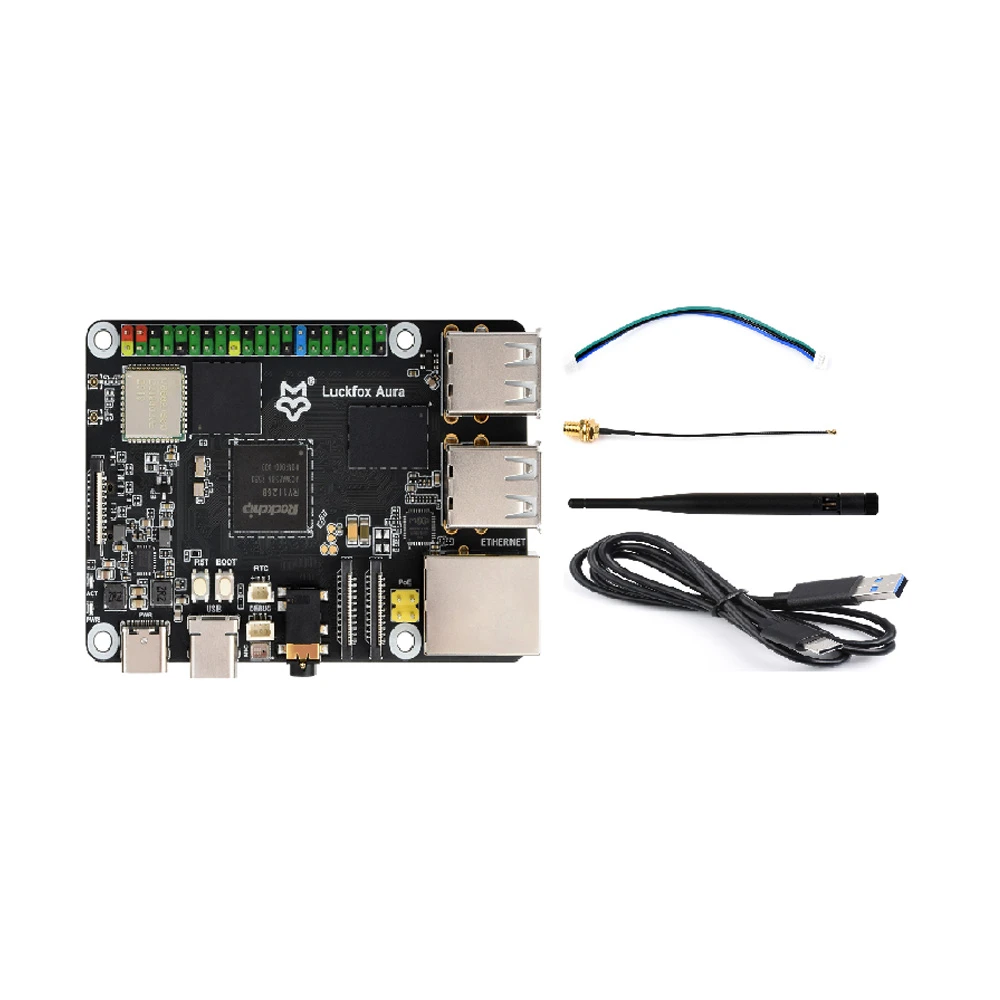

Package Includes

  • 1 x Luckfox Aura Development Board (2GB RAM, 64GB eMMC)
  • 2 x SH1.0 3PIN cable (~100mm)
  • 2 x IPEX 4 to SMA cable
  • 2 x 6dBi Antenna (~17cm)
  • 1 x USB Type-A to Type-C cable (~1m)

Additional Information

Weight 0.155 kg
Dimensions 7 × 10 × 3 cm

Related Products

Out of Stock

Luckfox Aura Linux Dev Board w/ 4GB RAM, 64GB eMMC, NPU

22,299.00
Learn More
Out of Stock

Luckfox Lyra Zero W Micro Linux Board w/ RK3506B, Wi-Fi 6, BT 5.2

3,909.00
Learn More
Out of Stock

AI-Thinker AiPi-Eyes-S2 Dev Board w/ 3.5-Inch Display

2,380.00
Learn More
Out of Stock

Luckfox Aura RV1126 Linux Dev Board 2GB RAM Wi-Fi 6 BLE 5.4

9,439.00
Learn More
Out of Stock

Luckfox PicoKVM Lite IP KVM Remote Management Tool

5,499.00
Learn More
Out of Stock

Waveshare ESP32-P4-WIFI6 3.5in Vision Dev Board without Battery

4,959.00
Learn More
Out of Stock

NXP Semiconductors FRDM-RW612 Cortex-M33 Development Board with USB Cable

4,509.00
Learn More
Out of Stock

Sipeed LonganPi LPi3H Allwinner H618 Dev Board 4K Wi-Fi 6

2,099.00
Learn More
Out of Stock

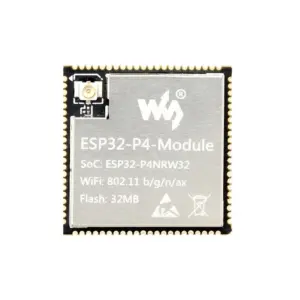

Waveshare ESP32-P4 Module Core Board - ESP32-P4 + C6 Dual-Chip
