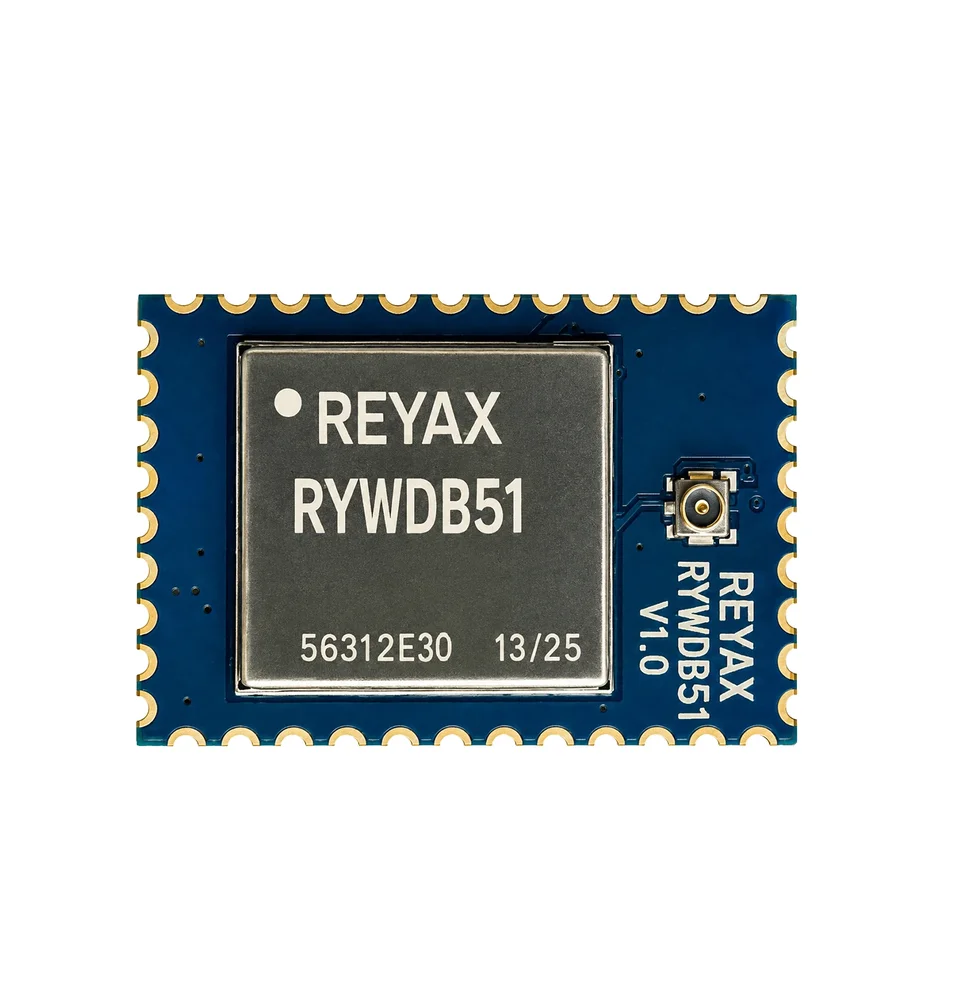

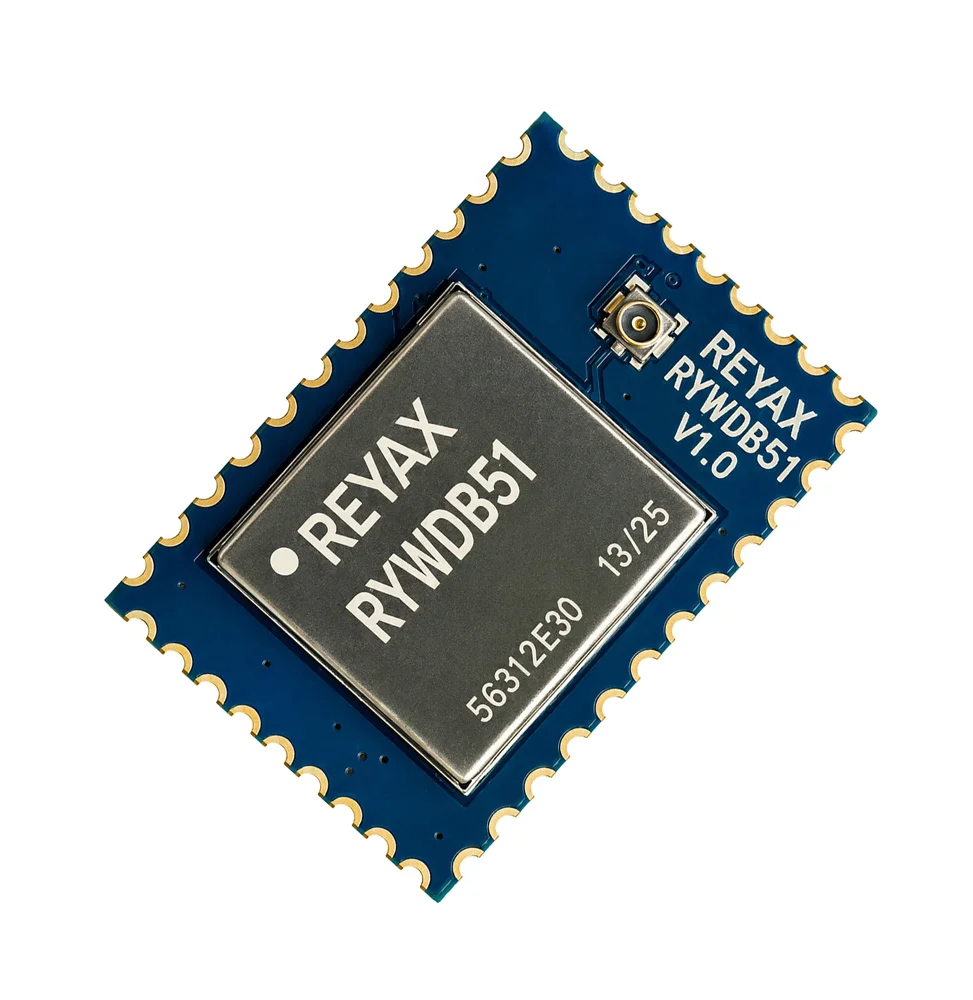

Reyax RYWDB51 Industrial Wi-Fi 6 & BLE 5.4 Module
The Reyax RYWDB51 is an industrial-grade dual-band Wi-Fi 6 and Bluetooth Low Energy 5.4 module based on the Texas Instruments CC3351 chipset, designed for reliable, high-throughput IoT connectivity in embedded systems with Linux or RTOS host support.
Features
- Dual-band Wi-Fi 6 (802.11ax) with OFDMA, MU-MIMO, and WPA3 security for efficient, high-density network performance.
- Bluetooth 5.4 with Long Range (LE Coded PHY), 2M PHY, and extended advertising for robust, low-power peripheral communication.
- Industrial temperature rating (-40°C to +90°C) ensures reliable operation in harsh automation and outdoor environments.
- Flexible host interfaces including 4-bit SDIO and SPI for easy integration with embedded Linux, RTOS, or microcontroller-based systems.
- Ultra-low power management with deep sleep currents down to 12µA, ideal for battery-powered IoT sensors and gateways.
Out of stock
The Reyax RYWDB51 integrates a complete Texas Instruments CC3351 wireless SoC into a compact 17.78 x 12.7 x 2.6 mm surface-mount module, delivering concurrent 2.4GHz/5GHz Wi-Fi 6 and Bluetooth 5.4 connectivity. Engineered for industrial IoT deployments, it supports advanced Wi-Fi 6 features like OFDMA and Target Wake Time (TWT) to manage network congestion and reduce device power consumption in dense node environments.
Its BLE 5.4 stack provides enhanced range via LE Coded PHY and higher data rates with the 2M PHY, enabling reliable data links for telemetry, control, and firmware updates. The module’s robust RF front-end delivers up to 19.5 dBm Wi-Fi and 20 dBm BLE transmit power, coupled with high receiver sensitivity for extended wireless range. Power management is optimized for always-on applications, featuring multiple low-power states with sleep currents as low as 332µA and a shutdown current of 12µA.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 1.778 × 1.27 × 0.26 cm |
