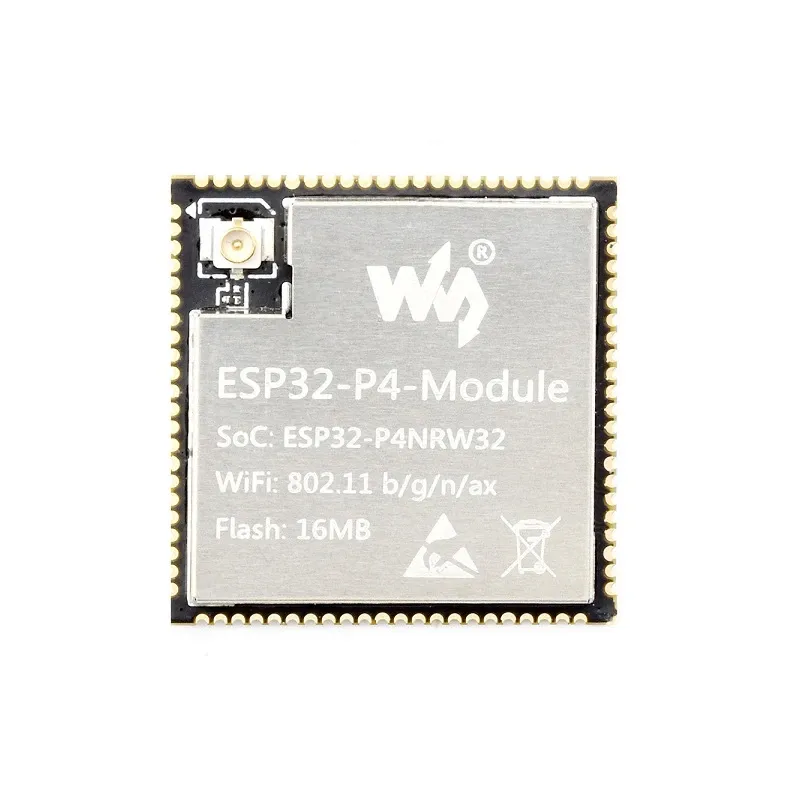

Waveshare ESP32-P4-Module Dual-Chip Core Board - 16MB Flash

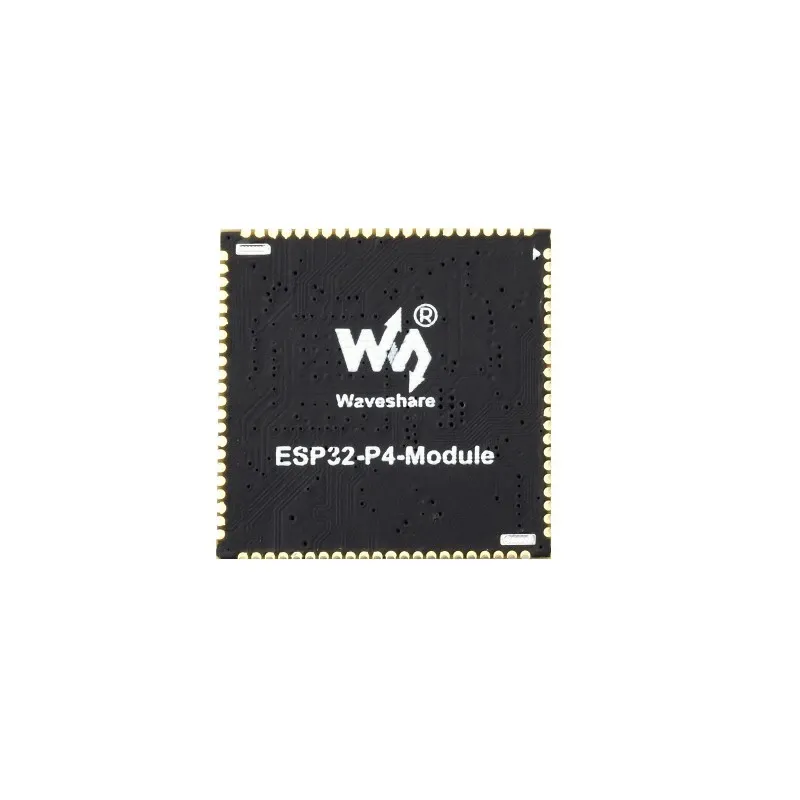

Waveshare ESP32-P4-Module Dual-Chip Core Board - 16MB Flash - Image 2

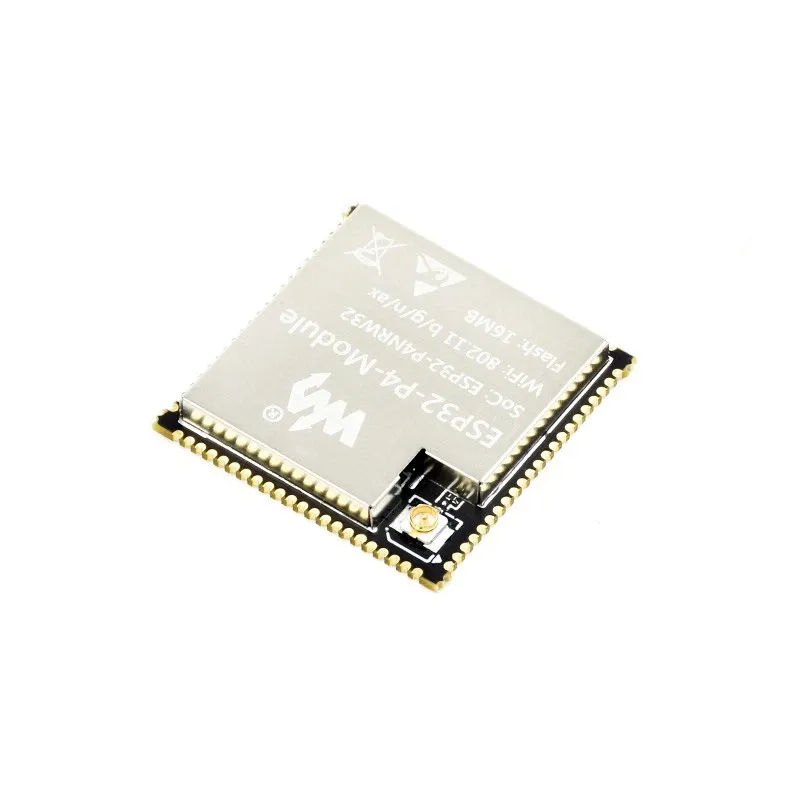

Waveshare ESP32-P4-Module Dual-Chip Core Board - 16MB Flash - Image 3

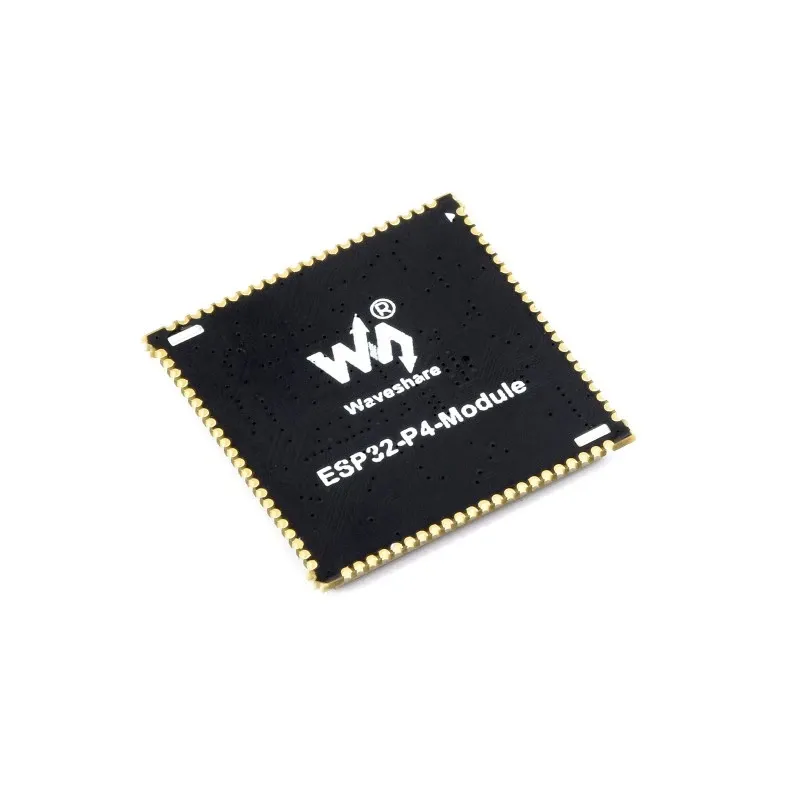

Waveshare ESP32-P4-Module Dual-Chip Core Board - 16MB Flash - Image 4

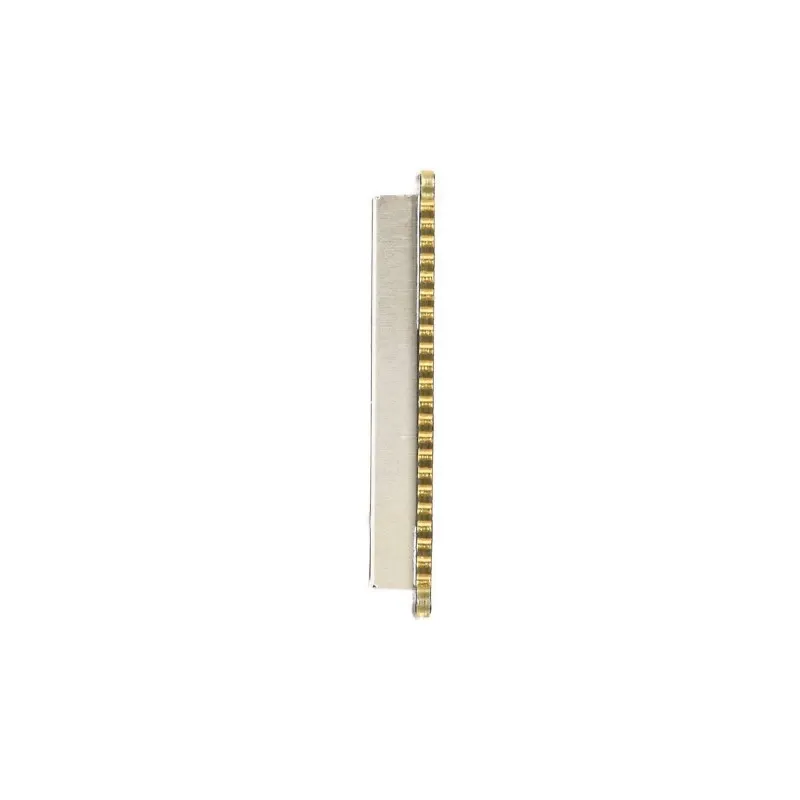

Waveshare ESP32-P4-Module Dual-Chip Core Board - 16MB Flash - Image 5
SKU: SBCD-1517
📋 GST Invoice Available

Waveshare ESP32-P4-Module Dual-Chip Core Board - 16MB Flash

₹1,329.00 (Inclusive of all taxes)
Out of Stock

The Waveshare ESP32-P4-Module Core Board integrates the ESP32-P4 and ESP32-C6 chips, providing a powerful RISC-V dual-core and single-core architecture for advanced AI, IoT, and multimedia applications. It features Wi-Fi 6, Bluetooth 5.3, 32MB PSRAM, and a MIPI LCD interface, enabling high-performance processing and connectivity for embedded designs.

Features

  • Dual-chip design featuring ESP32-P4 (RISC-V dual-core/single-core) and ESP32-C6 for hybrid processing.
  • Integrated 2.4GHz Wi-Fi 6 (802.11ax) and Bluetooth 5.3 for robust wireless connectivity.
  • Equipped with 32MB PSRAM and 16MB Flash for ample memory and storage.
  • Supports MIPI LCD interface, JPEG, ISP, and H264 encoder for multimedia and display applications.
  • Enhanced security features including Secure Boot and Flash Encryption.

Out of stock

Description

The Waveshare ESP32-P4-Module Core Board stands as a powerful, compact solution for demanding embedded applications, leveraging a unique dual-chip architecture. It combines the high-performance ESP32-P4, featuring a RISC-V dual-core and single-core processor, with the ESP32-C6 for advanced wireless communication. This synergistic design delivers exceptional processing capabilities for AI, IoT, and multimedia tasks, supporting complex image and voice processing with dedicated hardware encoders like JPEG, ISP, and H264.

With 32MB of PSRAM and 16MB of Flash memory, the module ensures smooth data handling and sufficient storage for intricate firmware and applications. Connectivity is robust with 2.4GHz Wi-Fi 6 (802.11 b/g/n/ax) and Bluetooth 5.3, providing reliable and high-speed wireless links. The integrated MIPI LCD interface makes it an ideal choice for display-centric projects and human-machine interface (HMI) systems. Furthermore, its built-in security features, including Secure Boot and Flash Encryption, safeguard data integrity and device security. The compact 25x25mm footprint and castellated edge connectors facilitate seamless integration into a wide array of embedded designs.

Key Features

  • Dual-chip design integrating ESP32-P4 for processing and ESP32-C6 for wireless communication.
  • RISC-V dual-core and single-core architecture delivers high-speed performance for demanding tasks.
  • Supports 2.4GHz Wi-Fi 6 (802.11 b/g/n/ax) for efficient and reliable wireless networking.
  • Bluetooth 5.3 connectivity ensures low-power communication with peripherals.
  • Built-in hardware accelerators for JPEG encoding, ISP (Image Signal Processor), and H264 video encoding.
  • 32MB PSRAM (Pseudo Static RAM) provides high-speed, expanded memory for complex applications.
  • 16MB Flash memory offers ample storage for firmware and persistent data.
  • Integrated MIPI LCD interface enables direct connection to various display types.
  • Advanced security features include Secure Boot and Flash Encryption for enhanced system integrity.
  • Compact 25×25mm size with castellated edge connectors for easy integration into custom PCBs.

Applications

  • Edge AI and Machine Learning inference.
  • IoT gateways and smart home devices requiring rich multimedia.
  • Human-Machine Interface (HMI) systems and industrial control panels.
  • Advanced display-based projects and smart wearables.
  • Video streaming and encoding solutions.
  • Robotics and autonomous systems requiring integrated communication and processing.

Technical Specifications

Main ChipESP32-P4NRW32
RF ChipESP32-C6H8
ProcessorRISC-V Dual-Core + Single-Core
PSRAM32MB
Flash16MB
Wi-Fi2.4GHz (802.11 b/g/n/ax)
Bluetooth5.3
Operating Voltage3.3V
ConnectorCastellated edge, 1mm pitch
ROM128KB HP, 16KB LP
SRAM768KB L2MEM, 32KB LP SRAM
TCM8KB
SecuritySecure Boot, Flash Encryption, TRNG
Dimensions25 x 25 x 3.3 mm
Weight15g (approx)

Frequently Asked Questions

What are the main processing units on the ESP32-P4-Module?

The module features a dual-chip design with the ESP32-P4 and ESP32-C6. The ESP32-P4 provides a RISC-V dual-core and single-core architecture, optimized for multimedia, AI, and graphics tasks, while the ESP32-C6 handles advanced wireless communication including Wi-Fi 6 and Bluetooth 5.3 for reliable connectivity.

What wireless connectivity options does this board offer?

The Waveshare ESP32-P4-Module integrates the ESP32-C6 chip, providing comprehensive wireless capabilities. It supports 2.4GHz Wi-Fi 6 (802.11 b/g/n/ax) for high-speed and efficient data transfer, along with Bluetooth 5.3 for low-power communication and peripheral connections, making it versatile for IoT applications.

What are the memory specifications of the ESP32-P4-Module?

This core board is equipped with 32MB of PSRAM, offering ample high-speed memory for complex applications and data buffering. Additionally, it includes 16MB of Flash memory for program storage and non-volatile data, ensuring sufficient resources for advanced embedded projects requiring substantial memory.

Can this module be used for display applications?

Yes, the ESP32-P4-Module is well-suited for display applications due to its dedicated MIPI LCD interface. This enables direct connection to high-resolution displays, making it ideal for human-machine interface (HMI) projects, smart home devices, and other applications requiring advanced graphical output and user interaction.

Package Includes

  • 1 x Waveshare ESP32-P4-Module 16MB Core Board

Additional Information

Weight 0.015 kg
Dimensions 2.5 × 2.5 × 0.33 cm
