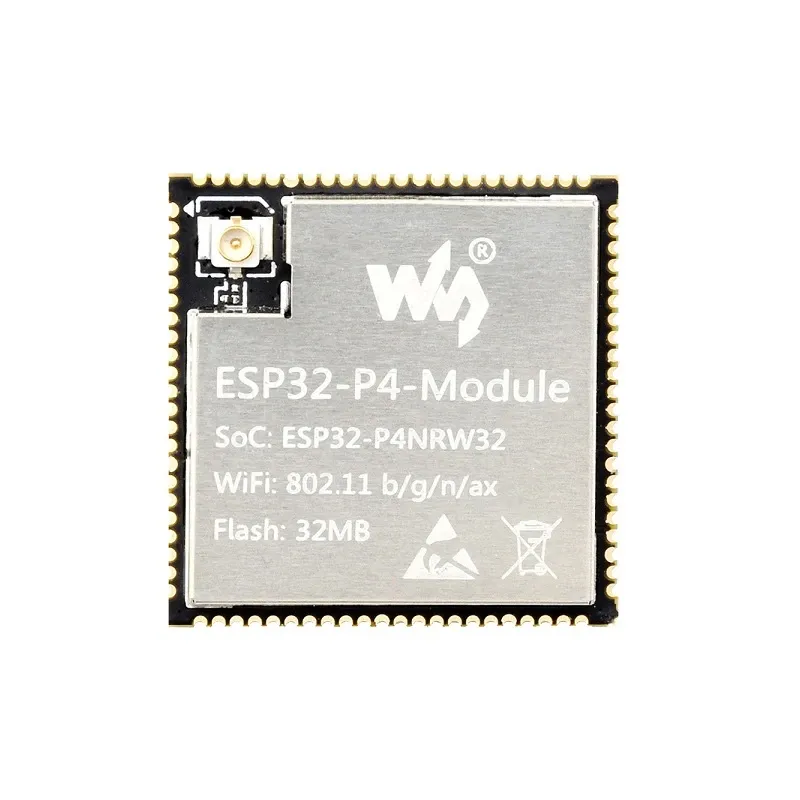

Waveshare ESP32-P4 Module Core Board - ESP32-P4 + C6 Dual-Chip

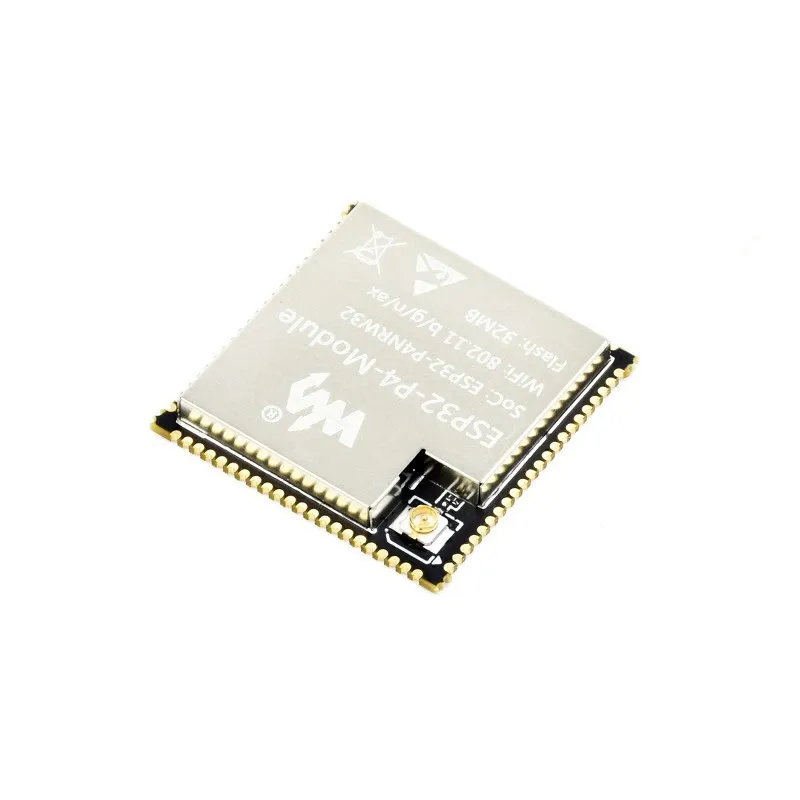

Waveshare ESP32-P4 Module Core Board - ESP32-P4 + C6 Dual-Chip - Image 2

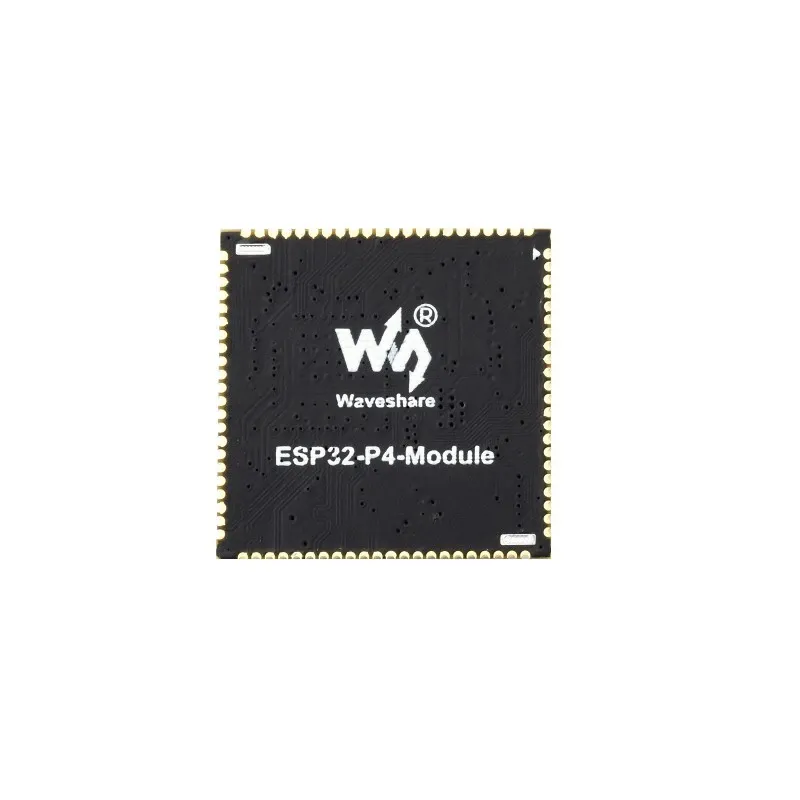

Waveshare ESP32-P4 Module Core Board - ESP32-P4 + C6 Dual-Chip - Image 3

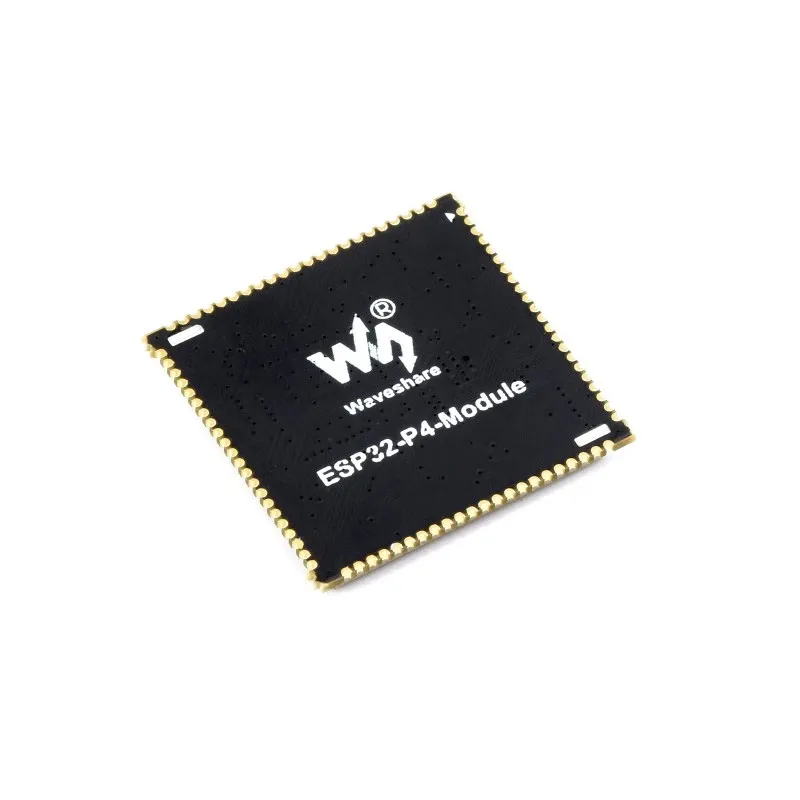

Waveshare ESP32-P4 Module Core Board - ESP32-P4 + C6 Dual-Chip - Image 4

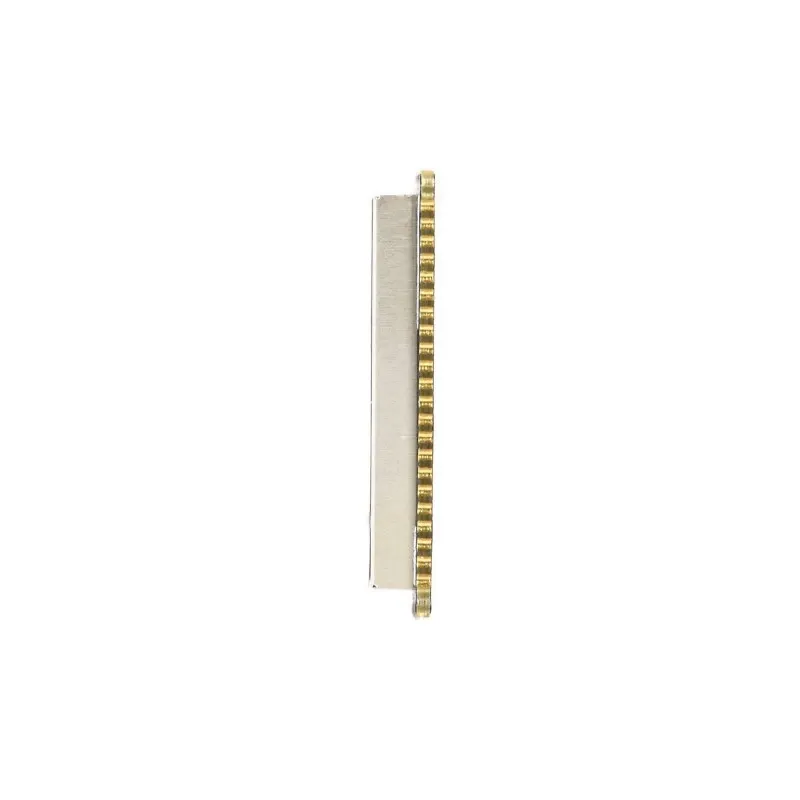

Waveshare ESP32-P4 Module Core Board - ESP32-P4 + C6 Dual-Chip - Image 5
SKU: SBCD-1516
📋 GST Invoice Available

Waveshare ESP32-P4 Module Core Board - ESP32-P4 + C6 Dual-Chip

₹1,429.00 (Inclusive of all taxes)
Out of Stock

The Waveshare ESP32-P4 Module Core Board is a powerful dual-chip solution, integrating a RISC-V dual-core ESP32-P4 with an ESP32-C6 for advanced AI, IoT, and multimedia applications. It offers Wi-Fi 6, Bluetooth 5.3, 32MB PSRAM, and a MIPI LCD interface, making it ideal for high-performance embedded display and HMI projects.

Features

  • Dual-chip architecture featuring ESP32-P4 (RISC-V dual-core) and ESP32-C6 (RISC-V single-core).
  • Integrated 2.4GHz Wi-Fi 6 (802.11 b/g/n/ax) and Bluetooth 5.3 connectivity.
  • Equipped with 32MB PSRAM and 32MB Flash for robust memory and storage.
  • Supports MIPI LCD interface for advanced display-based applications.
  • Includes hardware accelerators for JPEG, ISP, and H264 encoding for multimedia tasks.

Out of stock

Description

The Waveshare ESP32-P4 Module Core Board stands out as a high-performance, dual-chip solution engineered for demanding AI, IoT, and multimedia applications. By combining the processing power of a RISC-V dual-core ESP32-P4 with the robust wireless capabilities of an ESP32-C6, this board delivers exceptional performance for heterogeneous computing tasks. Its architecture is optimized for high-speed data handling, advanced image processing, and voice recognition, making it a versatile platform for next-generation embedded systems.

Connectivity is a core strength, with support for 2.4GHz Wi-Fi 6 (802.11 b/g/n/ax) and Bluetooth 5.3, ensuring reliable and high-throughput wireless communication. The module features 32MB PSRAM for efficient data buffering and 32MB Flash for ample program and data storage. Designed with a MIPI LCD interface, it is perfectly suited for sophisticated display-based projects and Human-Machine Interface (HMI) systems, enabling vibrant and interactive user experiences.

Beyond performance, the ESP32-P4 Module integrates critical security features such as Secure Boot and Flash Encryption to safeguard intellectual property and ensure data integrity. Its compact 25×25mm footprint, coupled with castellated edge connectors, simplifies integration into existing designs or new embedded products. This makes the board an excellent choice for developers seeking a powerful, secure, and compact solution for their advanced projects.

Key Features

  • Dual-chip architecture: ESP32-P4 (RISC-V dual-core) and ESP32-C6 (RISC-V single-core) for heterogeneous computing.
  • High-performance wireless connectivity with 2.4GHz Wi-Fi 6 (802.11 b/g/n/ax) and Bluetooth 5.3.
  • Integrated multimedia acceleration including JPEG, ISP (Image Signal Processor), and H264 encoder.
  • Equipped with 32MB PSRAM and 32MB Flash for ample program and data storage.
  • MIPI LCD interface support, enabling advanced display and HMI development.
  • Robust security features like Secure Boot, Flash Encryption, and True Random Number Generator (TRNG).
  • Compact 25×25mm form factor with castellated edge connectors for easy surface-mount integration.
  • Optimized for AI, IoT, and multimedia applications requiring high processing and connectivity.

Applications

  • Advanced Human-Machine Interface (HMI) development with MIPI LCD.
  • Edge AI inference and vision processing applications.
  • Multimedia streaming and encoding solutions.
  • High-performance IoT gateways and industrial control.
  • Smart home devices requiring robust connectivity and display capabilities.

Technical Specifications

Main ChipESP32-P4NRW32
RF ChipESP32-C6H8
ProcessorRISC-V Dual-Core (ESP32-P4) + RISC-V Single-Core (ESP32-C6)
PSRAM32MB
Flash32MB
Wi-Fi2.4GHz (802.11 b/g/n/ax)
Bluetooth5.3
Operating Voltage3.3V
ConnectorCastellated edge, 1mm pitch
ROM128KB HP, 16KB LP
SRAM768KB L2MEM, 32KB LP SRAM
TCM8KB
SecuritySecure Boot, Flash Encryption, TRNG
Dimensions25 x 25 x 3.3 mm

Frequently Asked Questions

What is the primary advantage of the ESP32-P4 + ESP32-C6 dual-chip architecture?

This dual-chip design provides a powerful combination for heterogeneous computing. The ESP32-P4 offers robust processing for intensive tasks like AI and multimedia, while the ESP32-C6 handles advanced wireless communication (Wi-Fi 6, Bluetooth 5.3), offloading network operations and ensuring efficient data throughput for complex IoT and display applications.

What development environments and toolchains are supported for the ESP32-P4 Module?

The ESP32-P4 Module is primarily supported by Espressif's ESP-IDF (IoT Development Framework), which provides a comprehensive suite of tools, libraries, and examples for firmware development. Developers can also leverage GNU toolchains for RISC-V architecture, enabling flexible programming in C/C++ for custom embedded applications and system-level optimization.

Can this module drive external displays, and what interfaces are available for multimedia?

Yes, the ESP32-P4 Module features a MIPI LCD interface, specifically designed for high-resolution display integration, making it suitable for HMI and media-rich projects. Additionally, it includes built-in hardware accelerators for JPEG encoding, ISP (Image Signal Processing), and H264 video encoding, significantly enhancing its multimedia processing capabilities without heavy CPU load.

What are the power requirements and key security features of this module?

The module operates at a 3.3V supply voltage, typical for embedded systems, and is designed for low-power applications when not under heavy load. For security, it integrates Secure Boot to ensure only authenticated firmware runs, Flash Encryption to protect sensitive data at rest, and a True Random Number Generator (TRNG) for robust cryptographic operations.

Package Includes

  • 1 x Waveshare ESP32-P4-Module 32MB Core Board

Additional Information

Weight 0.05 kg
Dimensions 2.5 × 2.5 × 0.33 cm
