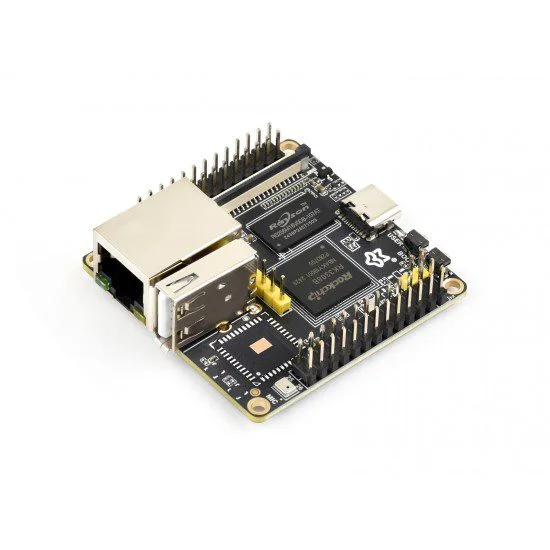

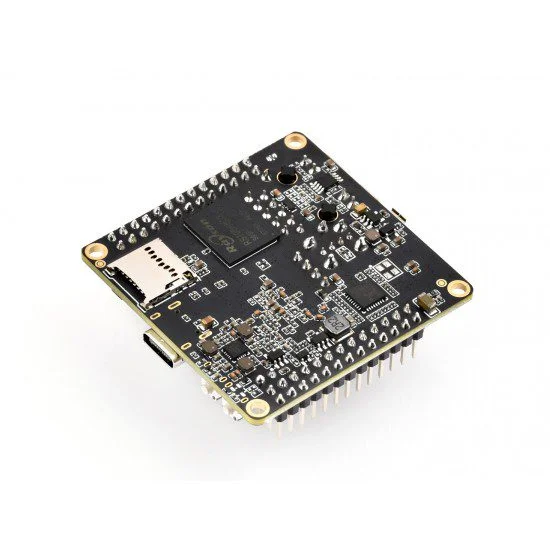

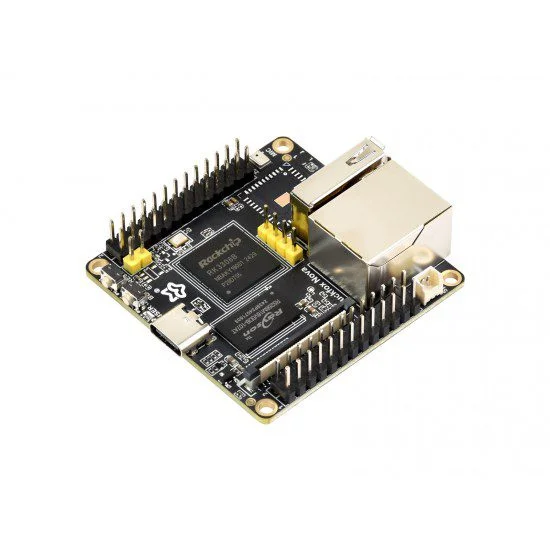

Luckfox Nova Micro Development Board, Rockchip RK3308B, 8GB eMMC, Audio Codec

The Luckfox Nova development board typically runs a custom Buildroot-based Linux distribution provided by Luckfox. You can download the official system image and toolchain from the Luckfox Wiki. The board boots from its onboard 8GB eMMC storage, which comes pre-flashed with a baseline Linux OS. Developers can modify the kernel, root filesystem, and applications using the provided SDK to create custom embedded solutions for voice, vision, or gateway applications.

Audio input is handled via the onboard audio codec's 8-channel microphone input lines, accessible through the MX1.25 2-pin connector and specific GPIO pins for array configurations. You will need compatible microphone modules with matching interfaces. For audio output, the codec also supports speaker connections. Detailed pin mapping and example schematics for connecting digital MEMS microphones or analog mic arrays are provided in the hardware design documentation from Luckfox to ensure proper signal integrity and bias voltage.

Yes, the board features a MIPI CSI-2 2-lane camera interface, allowing you to connect compatible image sensors. You will need a camera module with a matching MIPI CSI-2 interface, such as those commonly used with Raspberry Pi. Driver support for popular sensors is included in the Luckfox kernel source. After physically connecting the camera via the FPC connector, you can enable it in the device tree and use standard V4L2 tools or higher-level frameworks like OpenCV (compiled for ARM) to capture and process video for your embedded vision application.

The Luckfox Nova board is powered via its USB Type-C port. The typical input voltage is 5V DC. You should use a stable 5V/2A USB power adapter connected to the Type-C port to ensure reliable operation, especially when peripherals are attached. The board does not support Power-over-Ethernet (PoE) by default. You can monitor the system's power consumption via software, but expect idle currents in the hundreds of milliamps and higher under full CPU load, making it suitable for mains-powered or large-battery applications.

The board's dual 26-pin headers provide access to multiple GPIOs, UARTs, SPI, and I2C buses. Pinout diagrams are available in the Luckfox documentation. For initial setup and serial console access, connect the board's USB Type-C port to your computer. A USB-to-serial bridge on the board creates a COM port. Use a terminal emulator like PuTTY or screen at the correct baud rate (typically 1500000) to access the Linux console. You can then control GPIOs using sysfs or a library like libgpiod, and develop applications in C, Python, or other supported languages.
