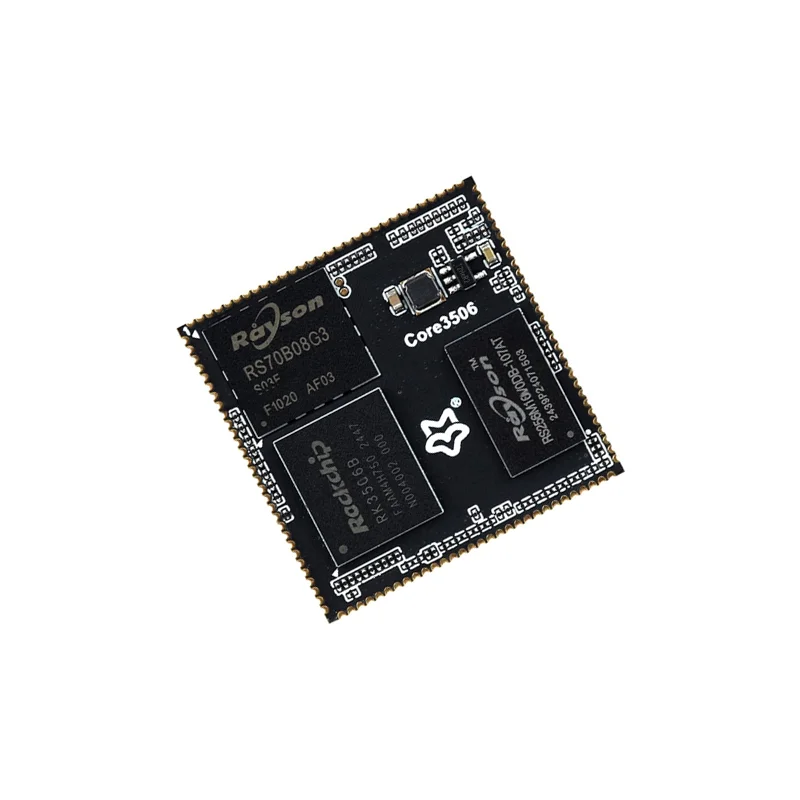

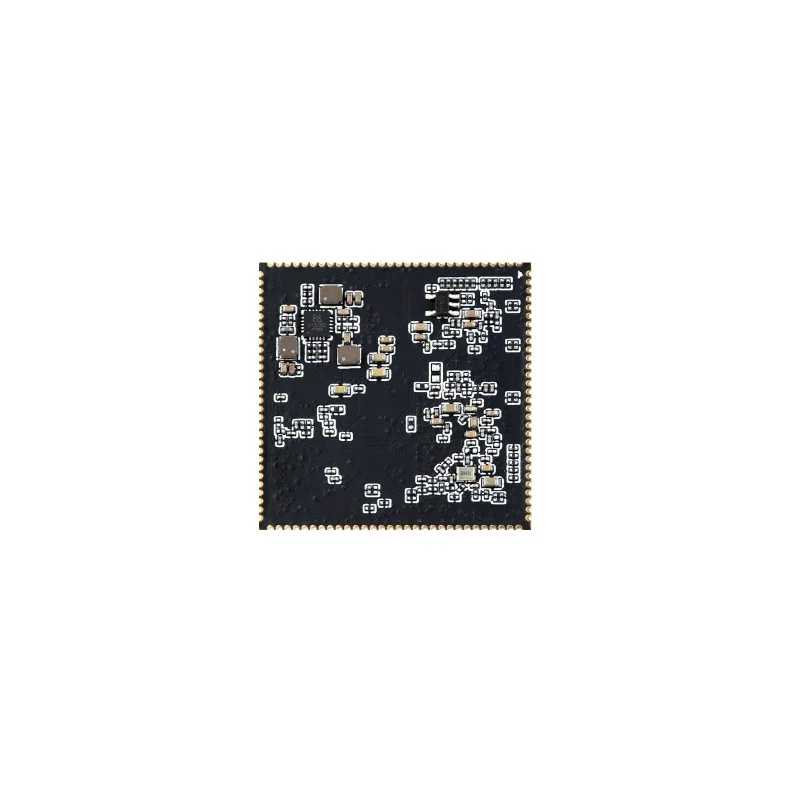

Luckfox Core3506 Core Board w/ RK3506B, 512MB DDR3L, 8GB eMMC
The Luckfox Core3506 is a compact ARM Cortex-A7/M0 core board for embedded AIoT applications, featuring onboard 512MB DDR3L RAM, 8GB eMMC storage, MIPI DSI display output, and extensive multiplexed I/O via Rockchip Matrix IO for rapid prototyping.
Features
- Rockchip RK3506B SoC: Combines a tri-core ARM Cortex-A7 (1.2GHz) with a Cortex-M0 MCU for efficient main processing and real-time control.
- Integrated Memory & Storage: Features onboard 512MB DDR3L RAM and 8GB eMMC flash, eliminating the need for external memory modules.
- Rich I/O & Display Interface: Offers 120 castellated holes with 98 multiplexed signals (UART, SPI, I2C, PWM, I2S) and supports MIPI DSI displays up to 1280×1280 @60fps.
- Dual Connectivity Ports: Includes two USB OTG 2.0 ports and dual 10/100M RMII Ethernet interfaces for versatile network and peripheral connections.
- Ultra-Compact Form Factor: Measures just 32mm x 32mm, making it ideal for space-constrained embedded systems and product integration.
Out of stock
The Luckfox Core3506 Core Board is a highly integrated embedded computing module centered on the Rockchip RK3506B processor. Its hybrid architecture pairs a tri-core ARM Cortex-A7 application processor with a dedicated Cortex-M0 microcontroller, enabling complex Linux-based applications alongside low-power, real-time task handling. This design is optimized for AIoT edge devices requiring substantial local processing and responsive I/O control.

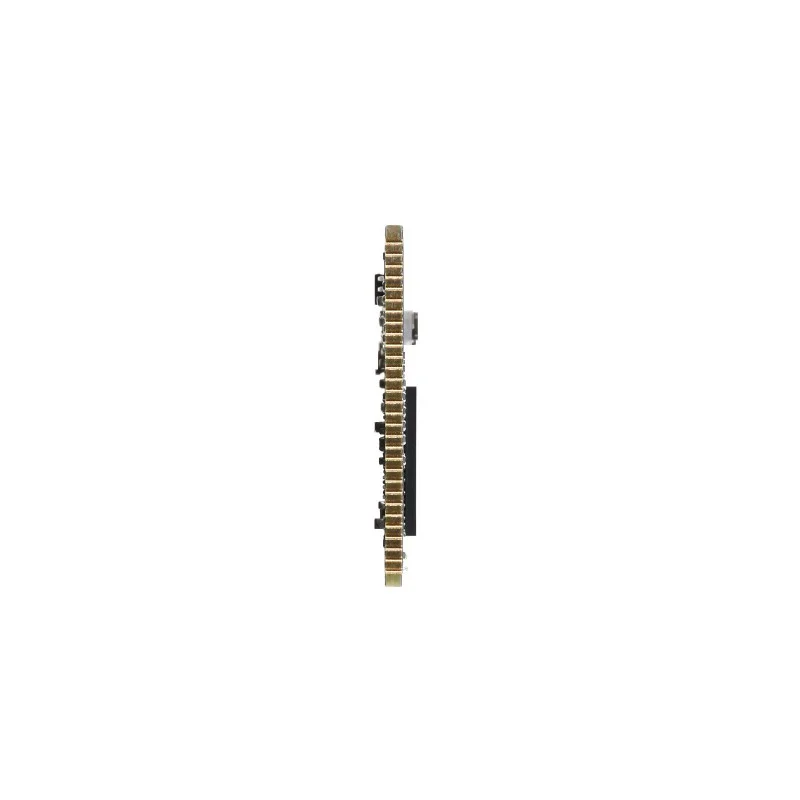

Built with a dense 32x32mm footprint and 120 castellated holes, the board provides direct access to Rockchip’s Matrix IO system, which multiplexes 98 configurable signals for UART, SPI, I2C, PWM, I2S, and GPIO. This flexibility allows developers to interface with a vast array of sensors, actuators, and communication modules without requiring additional signal conditioning hardware. The inclusion of dual RMII Ethernet and USB OTG ports further expands connectivity options for networked or peripheral-heavy deployments.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 3.2 × 3.2 cm |
