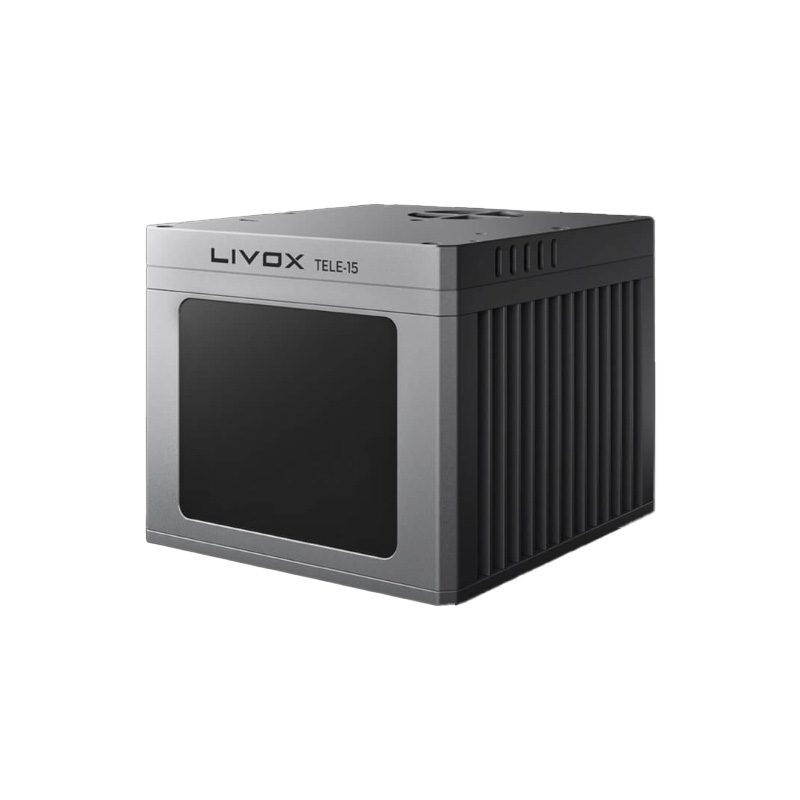

Livox TELE-15 Automotive LiDAR Sensor 500m Range
The Livox TELE-15 is a high-performance automotive-grade LiDAR sensor offering a maximum detection range of 500 meters. It features an integrated IMU, ultra-high angular precision, and a compact, rugged housing designed for integration into autonomous vehicles, robotics, and advanced mapping systems.
Features
- Long-range detection up to 500m (320m @ 10% reflectivity)
- Ultra-high angular precision < 0.03° and range precision of 2 cm
- Compact 14.5° x 16.2° (HxV) field of view with low beam divergence
- Built-in BMI088 IMU for enhanced motion compensation
- Wide input voltage range (10-15V DC) with low average power consumption
Out of stock
The Livox TELE-15 is a solid-state LiDAR sensor engineered for demanding long-range perception applications. Utilizing a 905 nm laser wavelength, it delivers dense, precise point clouds critical for object detection, classification, and localization at extended distances.
Its robust mechanical design and integrated inertial measurement unit (IMU) ensure stable, accurate data collection even in dynamic, high-vibration environments typical of automotive and robotic platforms. The sensor’s optimized optical system provides a focused field of view with minimal beam divergence, maximizing signal integrity over its operational range.
Additional Information
| Weight | 1.5 kg |
|---|---|
| Dimensions | 11.2 × 9.42 × 12.2 cm |
