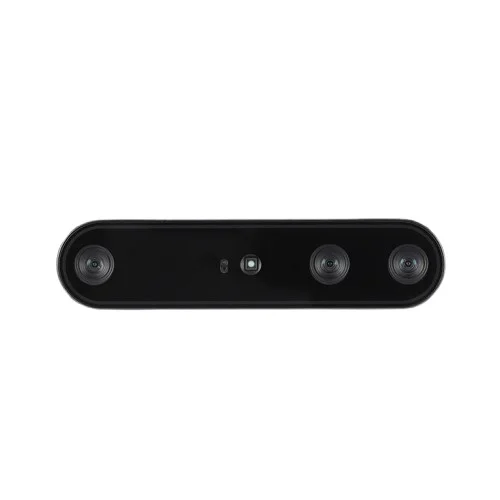

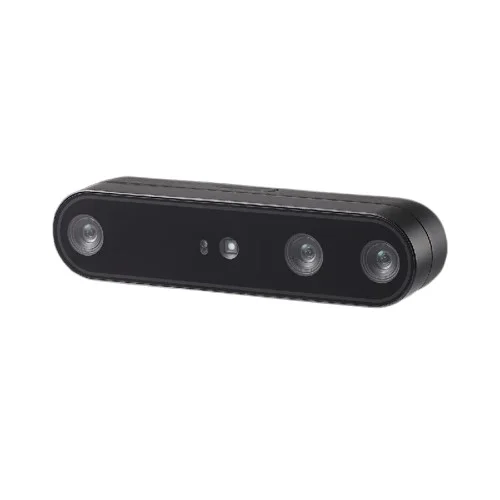

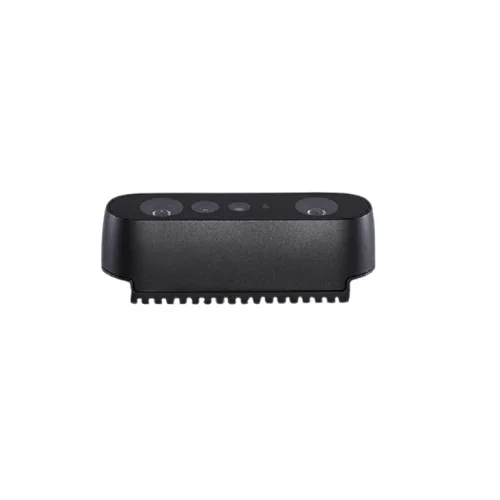

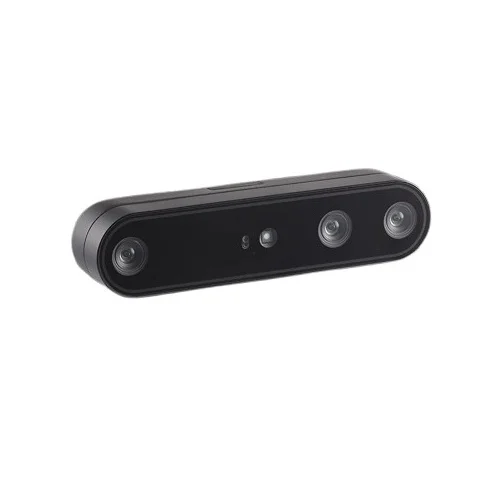

Orbbec Gemini2 Stereo 3D Depth Camera
The Orbbec Gemini2 is an active stereo 3D depth camera featuring a custom ASIC for high-fidelity depth processing, delivering up to 1280×800 resolution at 30 fps via a single USB-C interface for AR/VR, robotics, and spatial computing applications.
Features
- Active Stereo IR Depth Sensing with 101° diagonal FoV for expansive spatial coverage.
- High-resolution depth output up to 1280 x 800 @ 30 fps (or 640 x 400 @ 60 fps) for real-time 3D mapping.
- Global shutter IR sensor ensures precise depth capture in dynamic motion scenarios.
- Single USB-C cable provides both power and high-speed data transfer (USB 3.0).
- Integrated IMU and multi-camera sync support for advanced robotics and motion tracking applications.
Out of stock
The Orbbec Gemini2 Stereo 3D Depth Camera leverages active stereo infrared technology paired with Orbbec’s proprietary ASIC to deliver robust, real-time depth processing. Its 100mm baseline and wide 101° diagonal field of view enable accurate depth measurements from 0.2m to 5m, optimized for environments ranging from low-light indoor settings to semi-outdoor conditions.
Engineered for system integration, the camera features a global shutter IR sensor and a rolling shutter RGB sensor, supporting high-frame-rate depth streaming. The integrated IMU and support for hardware synchronization allow seamless multi-camera setups, essential for volumetric capture, robotic navigation, and interactive installations. Its USB-C interface simplifies connectivity while providing ample bandwidth for uncompressed depth data.
Additional Information
| Weight | 0.273 kg |
|---|---|
| Dimensions | 12 × 20 × 7 cm |
