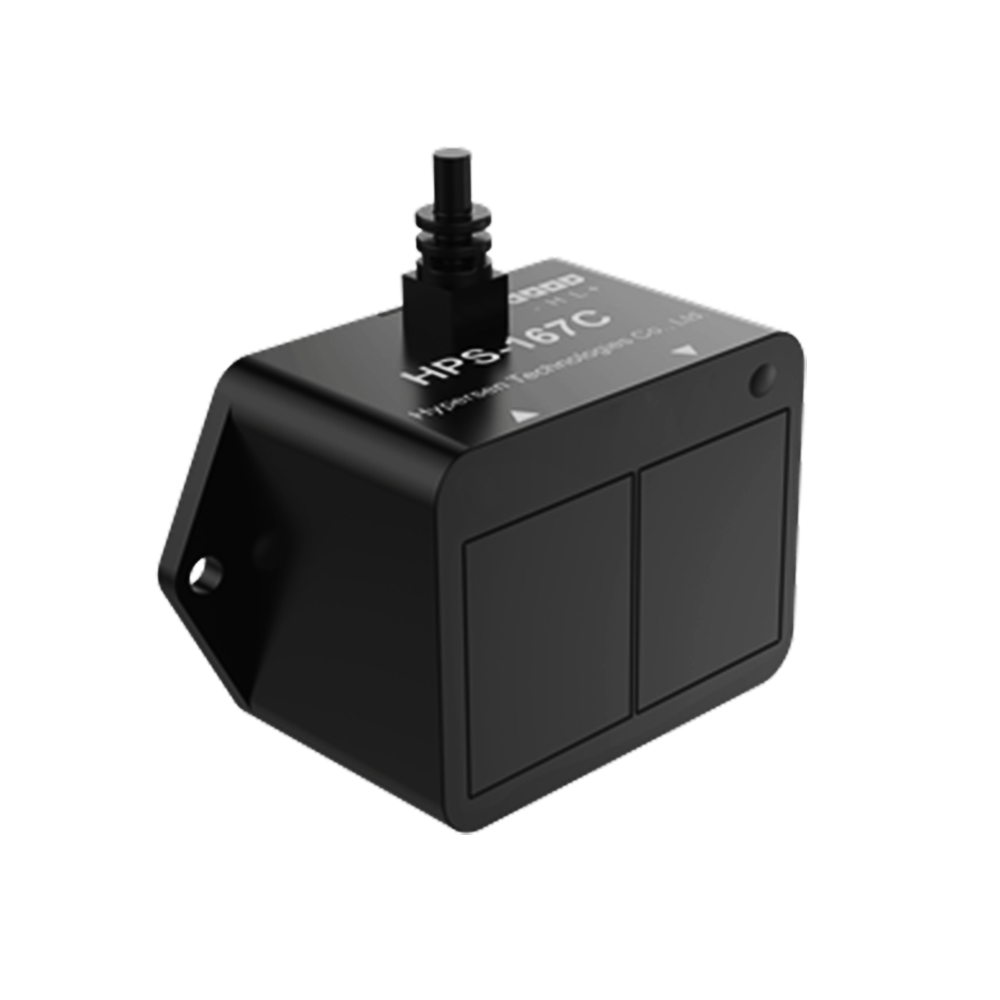

Hypersen HPS-167C ToF Ranging Sensor 18M Range 54Hz CAN Interface
The Hypersen HPS-167C is a high-performance Time-of-Flight (ToF) infrared ranging sensor delivering precise distance measurements from 0.08m to 18m. It features a CAN communication interface and a wide 5-15V DC supply range, making it suitable for integration into industrial systems, drones, and automated platforms.
Features
- High-SNR ToF infrared ranging with 0.08m to 18m measurement capability.
- CAN bus interface for robust, noise-immune communication in industrial networks.
- Adaptive data output rate configurable from 6Hz to 54Hz for optimal performance.
- Integrated ambient light, temperature, and color compensation algorithms for enhanced accuracy.
- Durable ABS and aviation aluminum waterproof housing for reliable operation in varied environments.
Out of stock
The HPS-167C utilizes a Time-of-Flight (ToF) principle with an infrared LED emitter (±1.8° beam angle) to calculate distance by measuring the round-trip time of a modulated light signal. This method provides high signal-to-noise ratio (SNR) and fast, accurate readings independent of target color and ambient light, thanks to its integrated compensation algorithms.
Housed in a robust ABS and aviation aluminum case, the sensor is designed for durability and environmental protection. It operates from a wide 5-15V DC supply, with a maximum power consumption of 1.4W, and communicates via a CAN bus interface, making it ideal for integration into complex, multi-node systems such as drones, automated guided vehicles (AGVs), and industrial automation.
Additional Information
| Weight | 0.04 kg |
|---|---|
| Dimensions | 9 × 9 × 4 cm |
