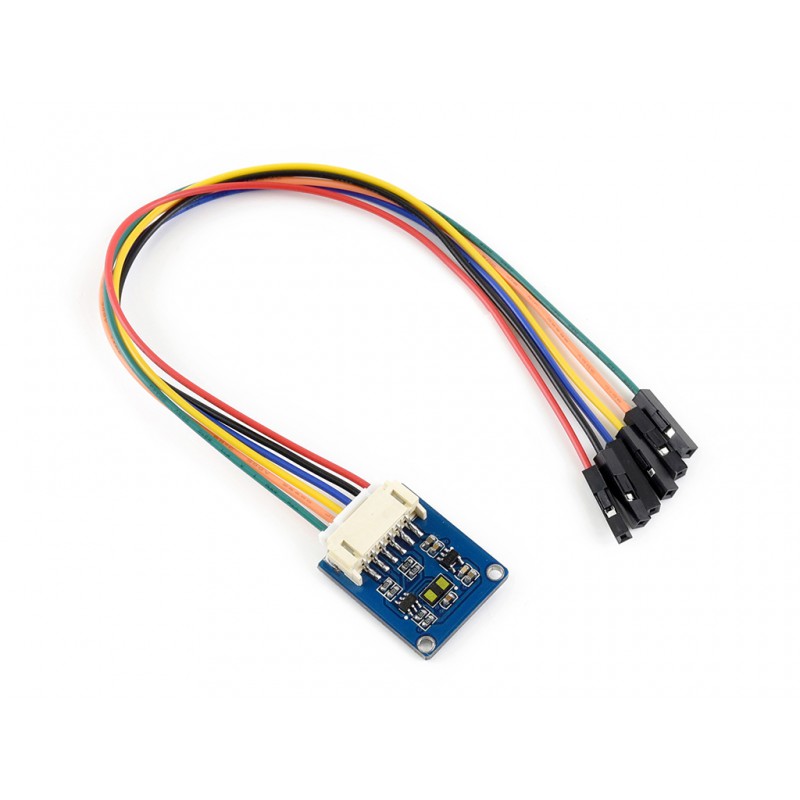

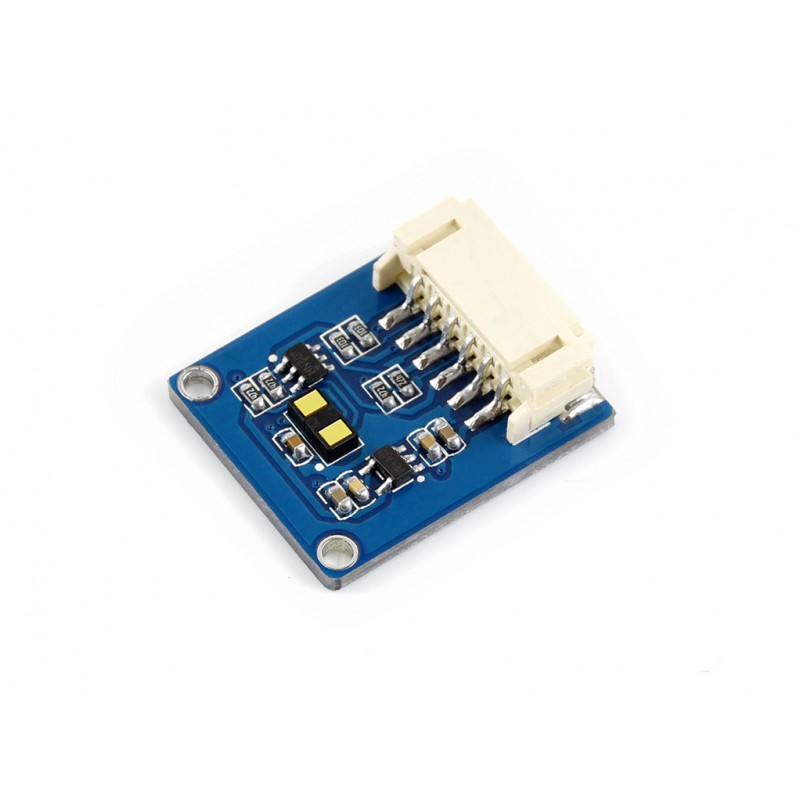

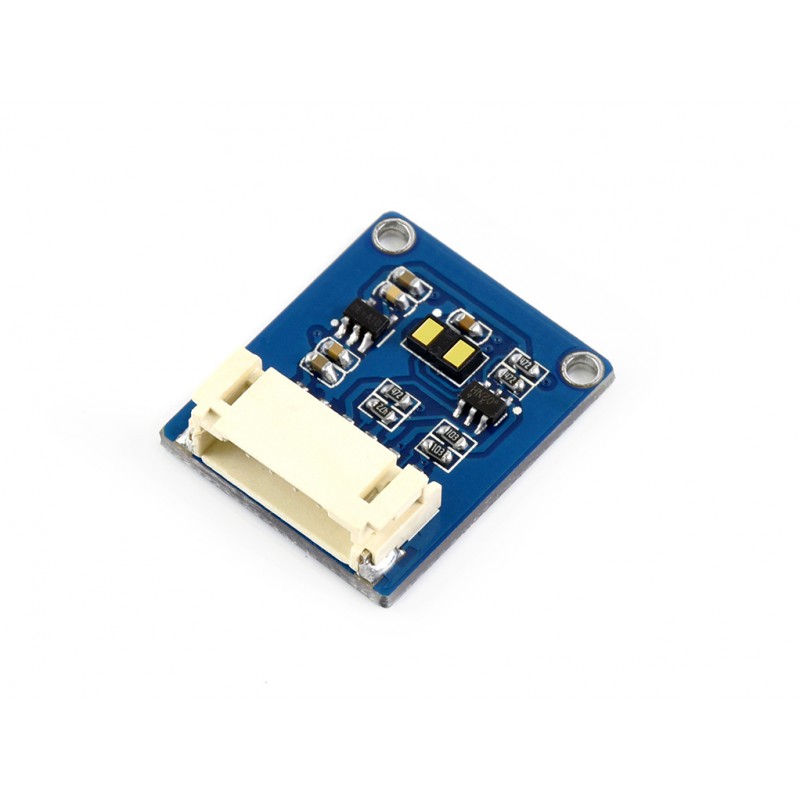

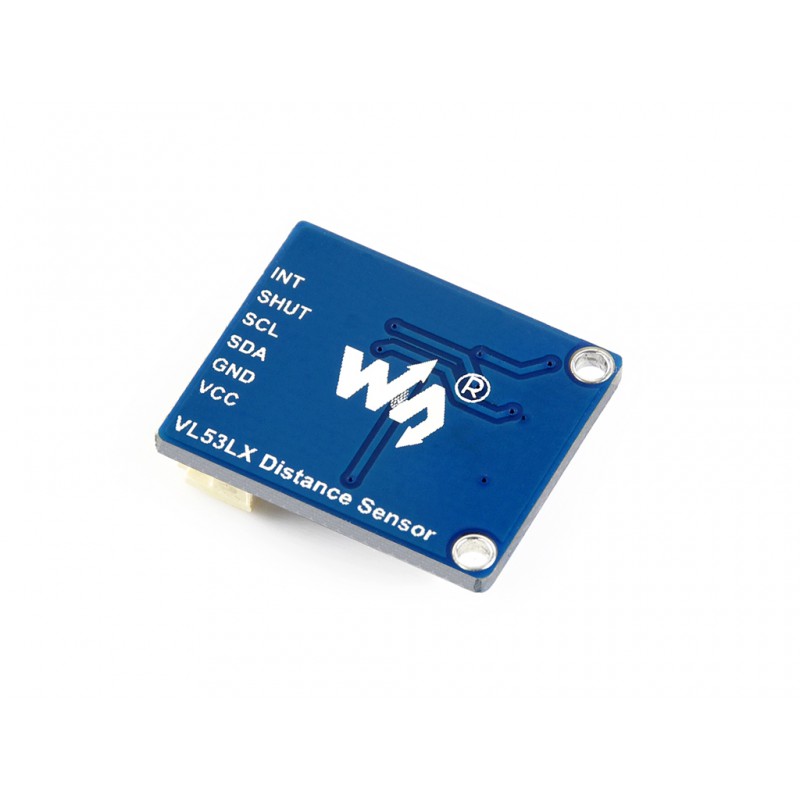

Waveshare VL53L1X ToF Distance Sensor 4m Range - I2C Interface
The Waveshare VL53L1X is a Time-of-Flight (ToF) distance sensor module based on the STMicroelectronics VL53L1X, offering accurate ranging up to 4 meters with a fast 50 Hz update rate. It features an I2C communication interface and onboard voltage translation for seamless compatibility with 3.3V and 5V systems like Arduino, Raspberry Pi, ESP32, and STM32.
Features
- ST VL53L1X-based Time-of-Flight sensor with up to 4m ranging capability.
- I2C interface with onboard voltage translator for 3.3V/5V system compatibility.
- Fast ranging frequency up to 50 Hz with ±5% accuracy.
- Integrated infrared filters and optics for reliable performance across target colors.
- Compact 20mm x 24mm PCB with 2.0mm mounting holes for easy integration.
Out of stock
The VL53L1X sensor module utilizes ST’s third-generation FlightSense ToF technology, which measures the time for infrared laser pulses (940nm) to reflect off a target. This method provides absolute distance measurement independent of target color and reflectance, offering superior performance and anti-interference capability compared to conventional infrared or ultrasonic sensors.
The module includes an onboard voltage level translator, allowing it to operate directly from both 3.3V and 5V logic microcontrollers without external components. It supports multiple ranging modes with configurable timing, enabling optimization for speed or long-distance accuracy, and operates reliably across an industrial temperature range from -20°C to 80°C.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 2 × 2.4 cm |
