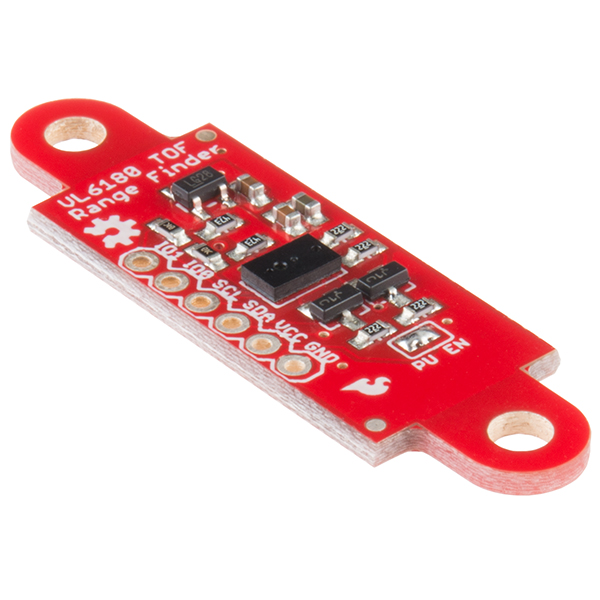

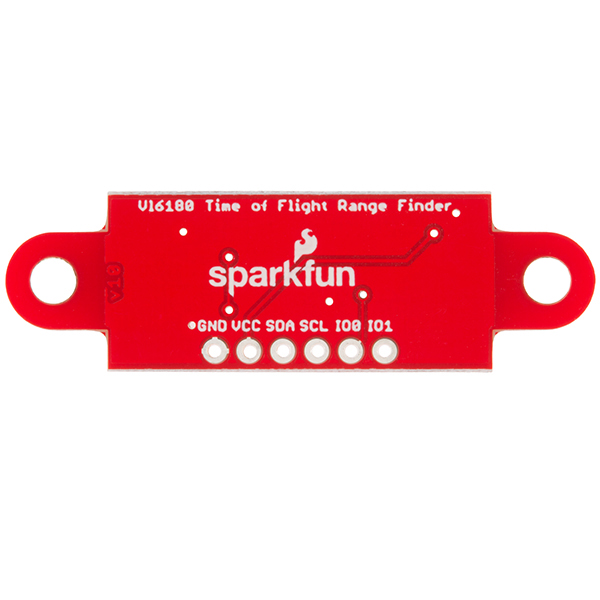

SparkFun VL6180 Time of Flight (ToF) Range Finder Sensor Module
The SparkFun VL6180X Time of Flight (ToF) sensor module provides accurate proximity and ambient light sensing via I2C communication. It is compatible with 3.3V/5V microcontroller platforms like Arduino, Raspberry Pi, and ESP32, offering a compact solution for precise short-range distance measurement.
Features
- VL6180X sensor measures absolute range via direct Time-of-Flight (ToF) principle.
- Integrated 2.8V regulator and I2C level shifter for 3.3V/5V logic compatibility.
- Combines proximity sensing (up to 10cm nominal, tested to ~25cm) and ambient light sensing.
- Compact PCB design with 3.2mm mounting holes for easy integration.
- Simple I2C interface with two programmable GPIO pins for advanced functionality.
Out of stock
The SparkFun VL6180X module utilizes STMicroelectronics’ VL6180X sensor, which employs a direct Time-of-Flight (ToF) measurement principle. Unlike analog or triangulation-based sensors, it uses a precise internal clock to measure the round-trip time of a modulated infrared light pulse, providing accurate, ambient-light-immune distance readings. This method ensures high precision and stability across varying surface colors and textures.
The module includes essential onboard signal conditioning, featuring a 2.8V low-dropout regulator to power the sensor core and a bidirectional I2C level shifter for seamless communication with both 3.3V and 5V logic microcontrollers. Its compact form factor and pre-drilled mounting holes facilitate integration into portable electronics, robotics, and industrial control systems.
Additional Information
| Weight | 0.001 kg |
|---|---|
| Dimensions | 4.43 × 1.35 × 0.3 cm |
