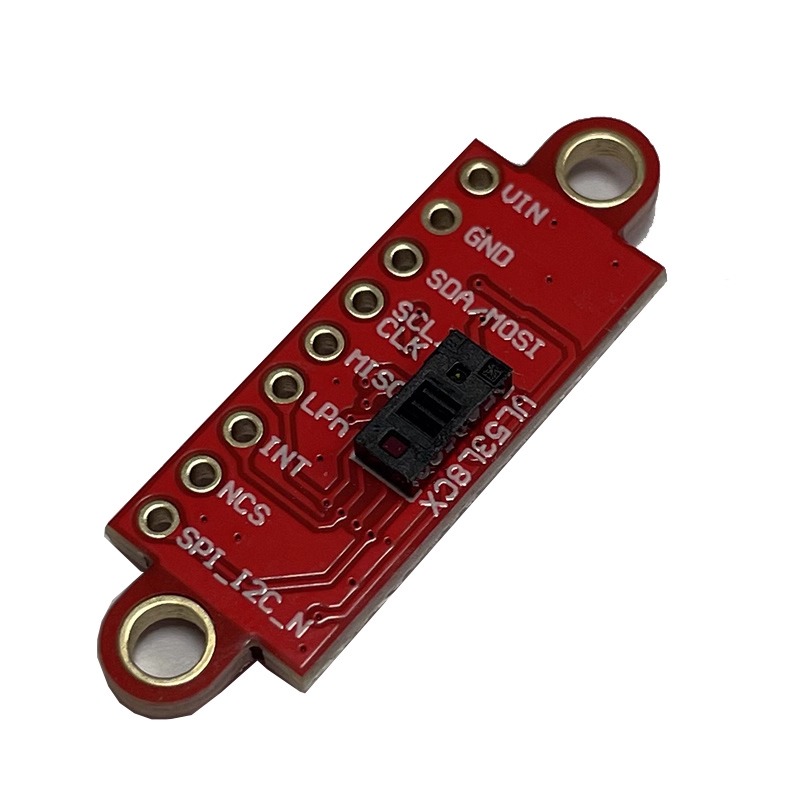

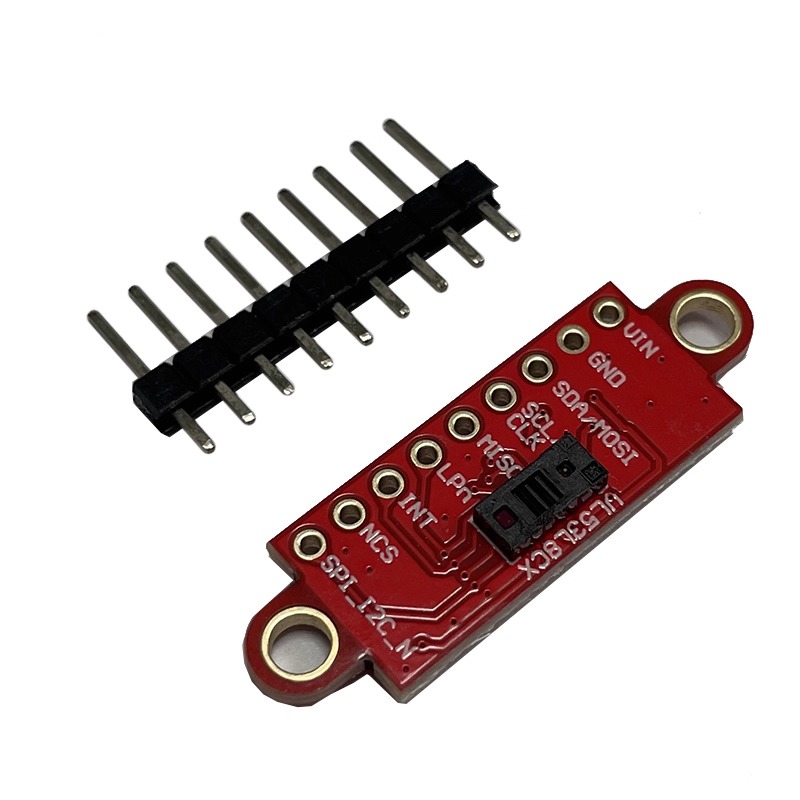

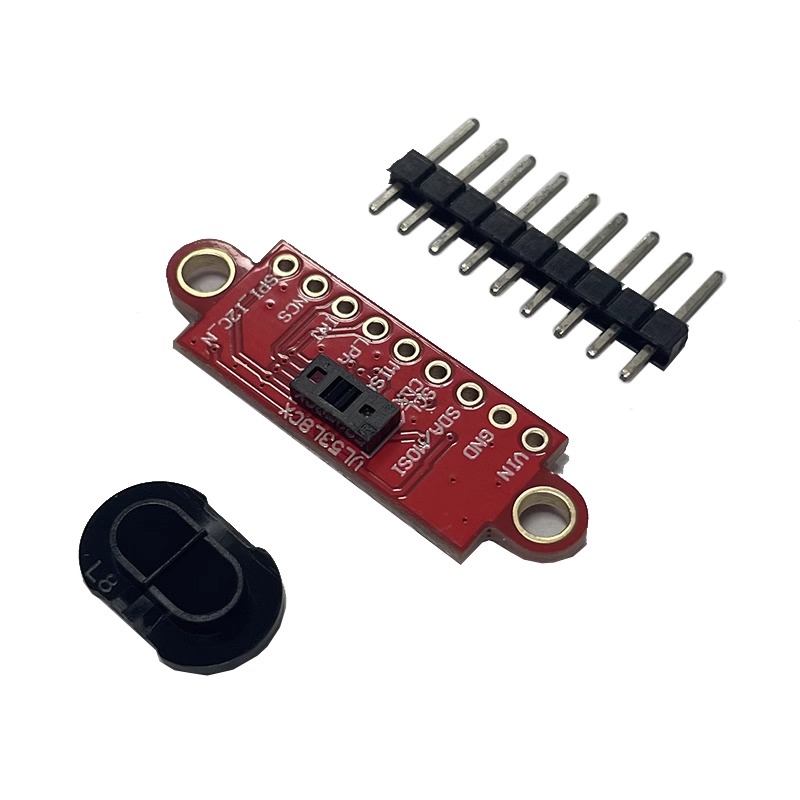

VL53L8CX Laser Ranging Module + VL53L8 Cover Film - 64-Zone ToF Sensor, I2C/SPI Interface
The VL53L8CX is a high-performance multi-zone Time-of-Flight (ToF) laser ranging module, featuring 64 independent ranging zones for precise distance mapping and motion tracking. It integrates seamlessly with microcontrollers like Arduino, Raspberry Pi, and ESP32 via I2C or SPI interfaces, offering a long detection range of up to 4 meters.
Features
- 64-zone (8×8) multi-target distance measurement and motion tracking.
- Long-range detection up to 400 cm with advanced histogram processing for accuracy.
- High-speed 60Hz update rate for real-time spatial awareness applications.
- Operates with an invisible, eye-safe 940nm VCSEL laser, capable of sensing through dark cover glass.
- Dual I2C and SPI communication interfaces for flexible system integration.
Out of stock
The VL53L8CX laser ranging module represents a next-generation Time-of-Flight (ToF) sensor utilizing STMicroelectronics’ advanced histogram algorithms. It provides precise distance measurements across 64 independent zones, enabling detailed spatial mapping and object tracking. The sensor’s sophisticated signal processing minimizes crosstalk and environmental interference, ensuring reliable performance.
Designed for low-power operation with an autonomous mode and interrupt support, it is suitable for battery-powered devices. Its wide 65° diagonal field of view and compact form factor make it an ideal choice for integrating into robotics, smart home automation, and industrial monitoring systems requiring real-time, multi-zone proximity data.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 3.3 × 1 cm |
