Holybro ST VL53L1X Lidar ToF Distance Sensor Module w/ TPU Protective Case

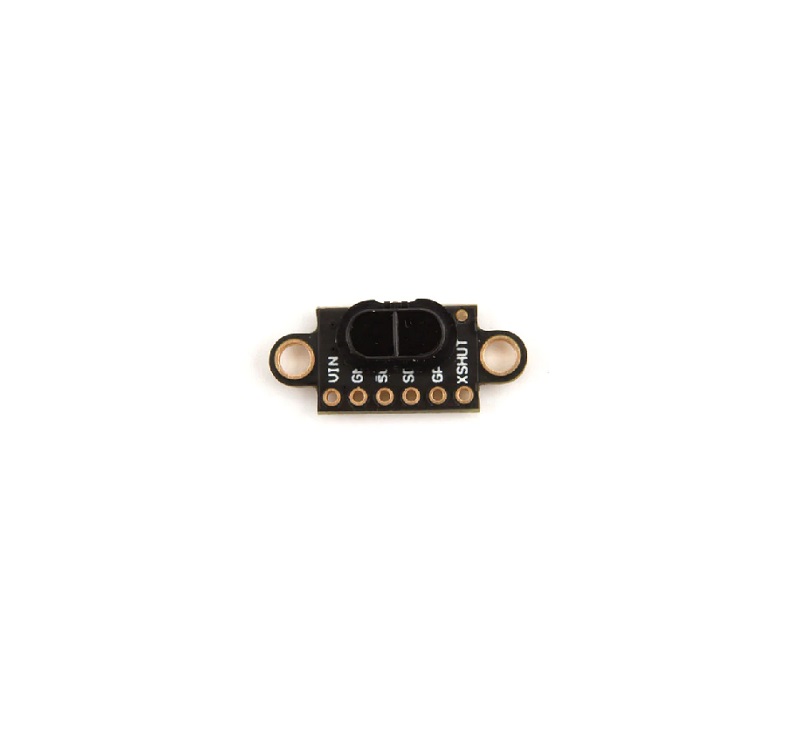

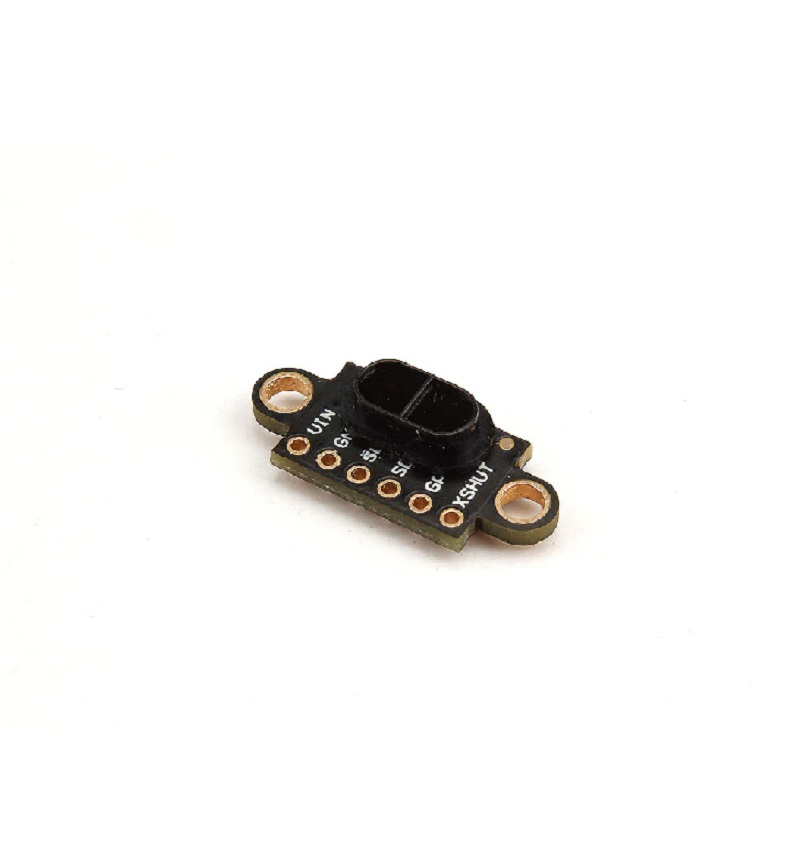

The Holybro VL53L1X is a high-performance Time-of-Flight (ToF) laser-ranging sensor module, compatible with 3.3V/5V logic systems like Arduino, Raspberry Pi, ESP32, and STM32. It provides accurate distance measurements up to 4 meters via I2C interface, ideal for robotics, drones, and proximity sensing applications.
Features
- ST VL53L1X FlightSenseâ„¢ ToF sensor with up to 4m long-distance ranging.
- High-speed I2C interface supports up to 50 Hz ranging frequency for real-time data.
- Wide 27° field of view with programmable region-of-interest (ROI) for flexible zone control.
- Compact 25 x 10.7 x 3.2 mm module with ultra-lightweight 2.4g design.

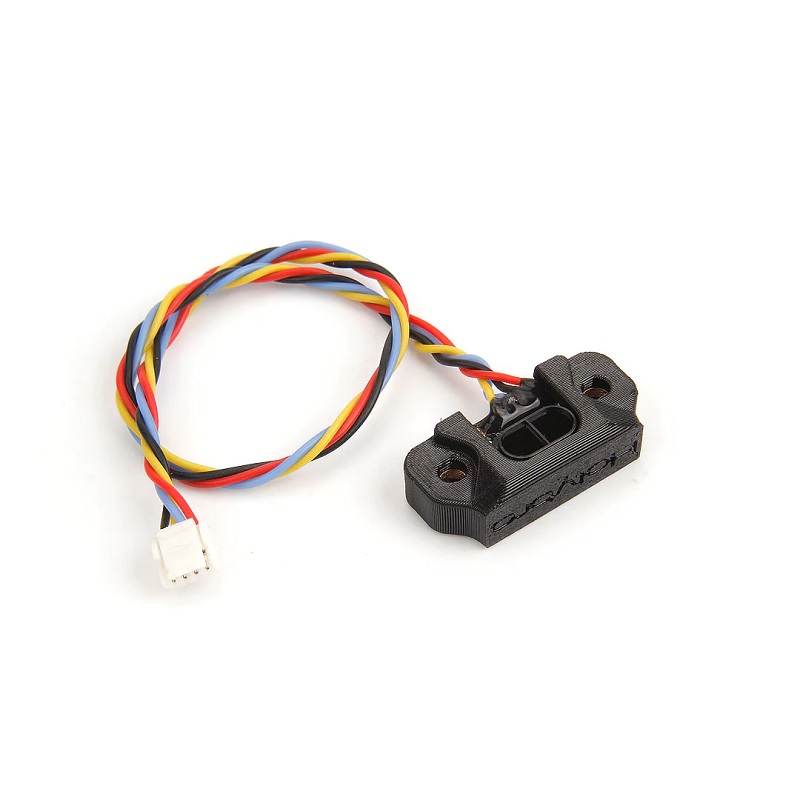

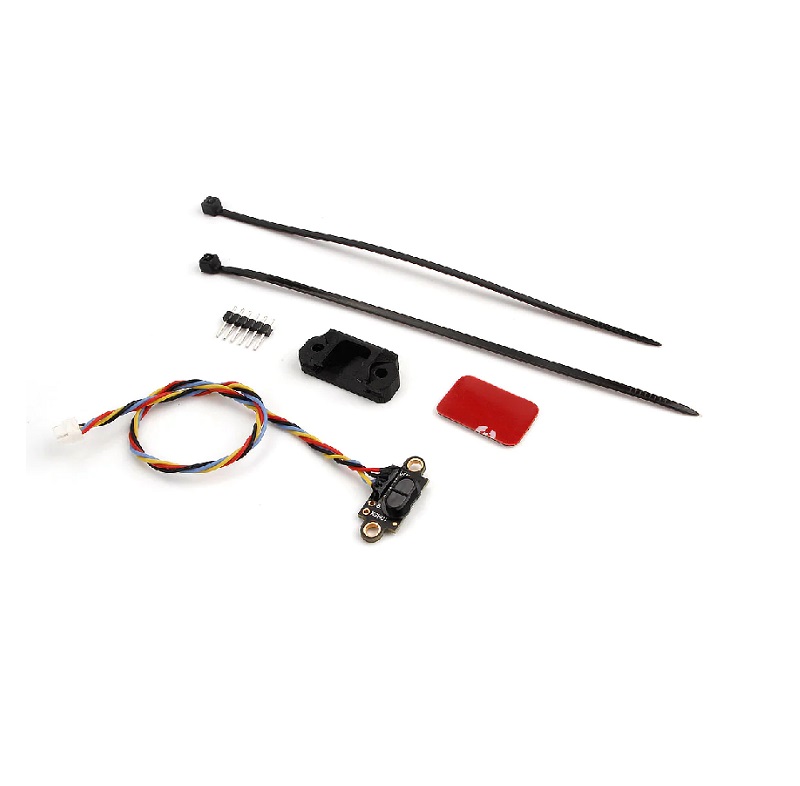

- Includes TPU protective case and pre-installed 200mm GH4P cable for easy integration.
Out of stock
The Holybro VL53L1X Lidar module integrates STMicroelectronics’ advanced FlightSenseâ„¢ Time-of-Flight technology, utilizing a 940nm VCSEL laser emitter and SPAD (Single Photon Avalanche Diode) receiver array. This MEMS-based system measures the time for emitted light pulses to reflect off a target, enabling sub-centimeter accuracy across its full 4-meter range. The sensor features intelligent signal conditioning to minimize ambient light interference and crosstalk.

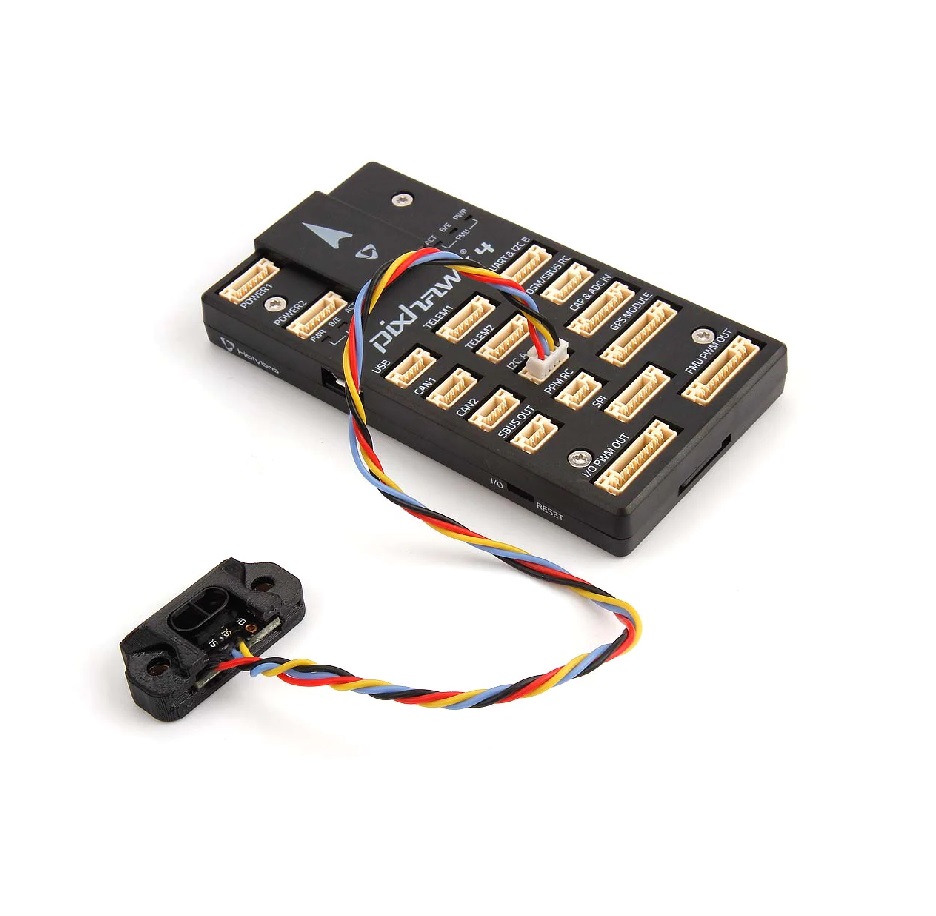

Operating from a 3.3V to 5V DC supply, the module communicates via a standard I2C interface, making it compatible with a wide range of microcontrollers and single-board computers. Its programmable region-of-interest allows the host system to dynamically adjust the sensing field-of-view and implement multi-zone detection schemes, optimizing performance for specific application geometries.
Additional Information
| Weight | 0.0024 kg |
|---|---|
| Dimensions | 2.5 × 1.07 × 0.32 cm |
