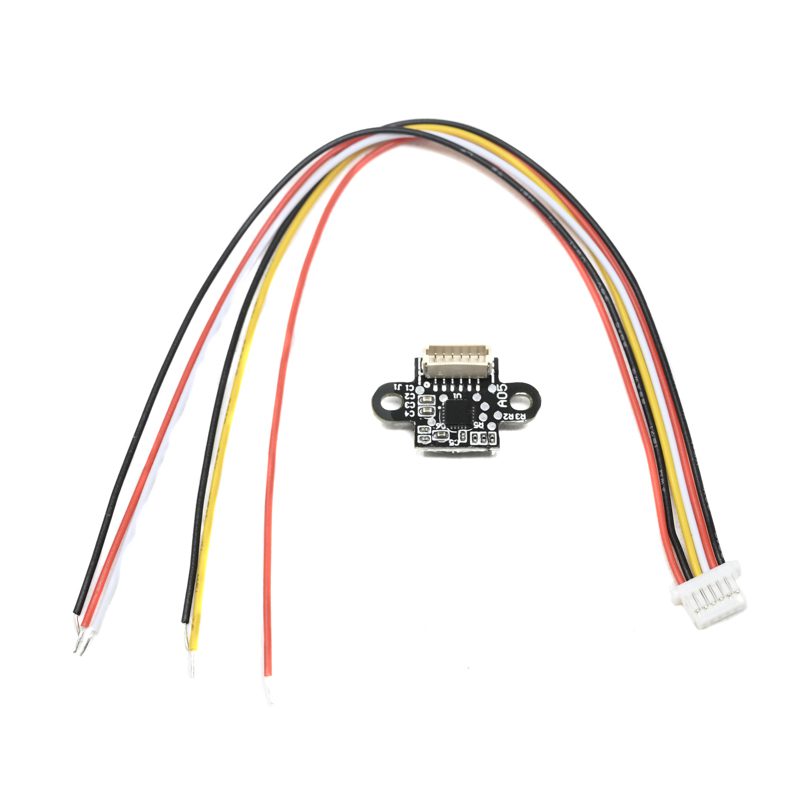

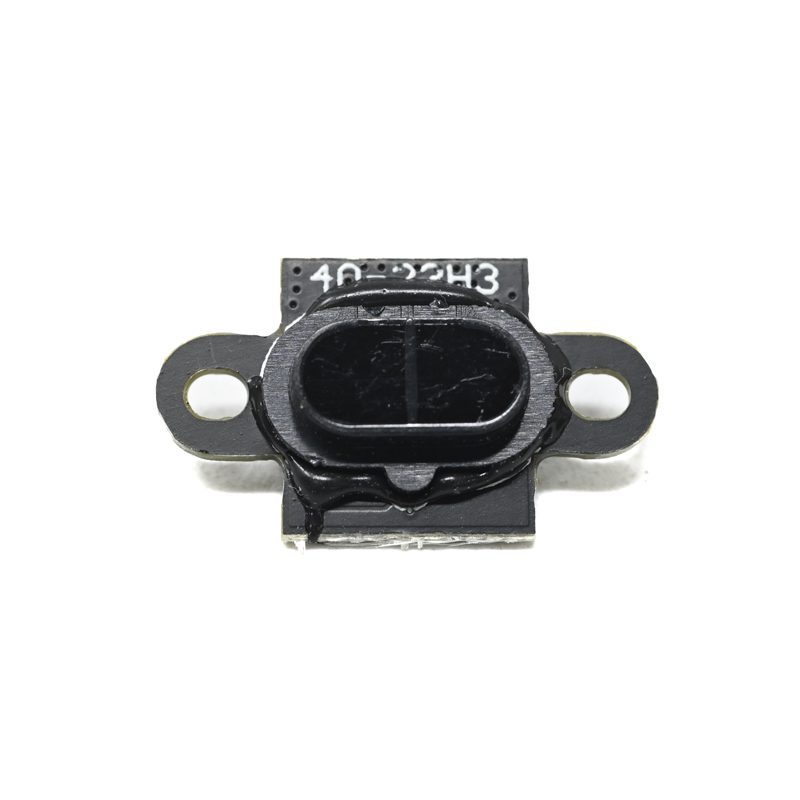

Benewake TF-LC02 LiDAR Range Finder Sensor Module VCSEL DC 3-3.6V, Range: 3cm~200cm
The Benewake TF-LC02 is a compact VCSEL-based LiDAR Time-of-Flight (ToF) sensor module designed for precise distance measurement from 3cm to 200cm. It communicates via a simple UART interface, making it compatible with microcontrollers like Arduino, ESP32, STM32, and Raspberry Pi for robotics, drones, and smart home applications.
Features
- VCSEL-based Time-of-Flight (ToF) LiDAR sensor for accurate distance measurement.
- Operational range of 3cm to 200cm with ±2cm accuracy up to 100cm.
- Fast detection speed of 33ms per measurement cycle.
- Simple UART serial communication interface for easy MCU integration.
- Compact, low-power module suitable for mobile robotics and drones.
Out of stock
The TF-LC02 integrates a high-precision ToF sensor and a built-in Time-to-Digital Converter (TDC) circuit to deliver reliable ranging data. It operates on the principle of measuring the time-of-flight of a modulated infrared light pulse, providing stable and accurate distance readings even in varying indoor ambient light conditions.
Designed for integration into electronic systems, this module is optimized for indoor use. Strong direct sunlight can interfere with its infrared detection, potentially degrading performance. Its robust design supports an operating temperature range from -20°C to 70°C, ensuring reliability in a variety of application environments.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 11 × 7 × 1 cm |
