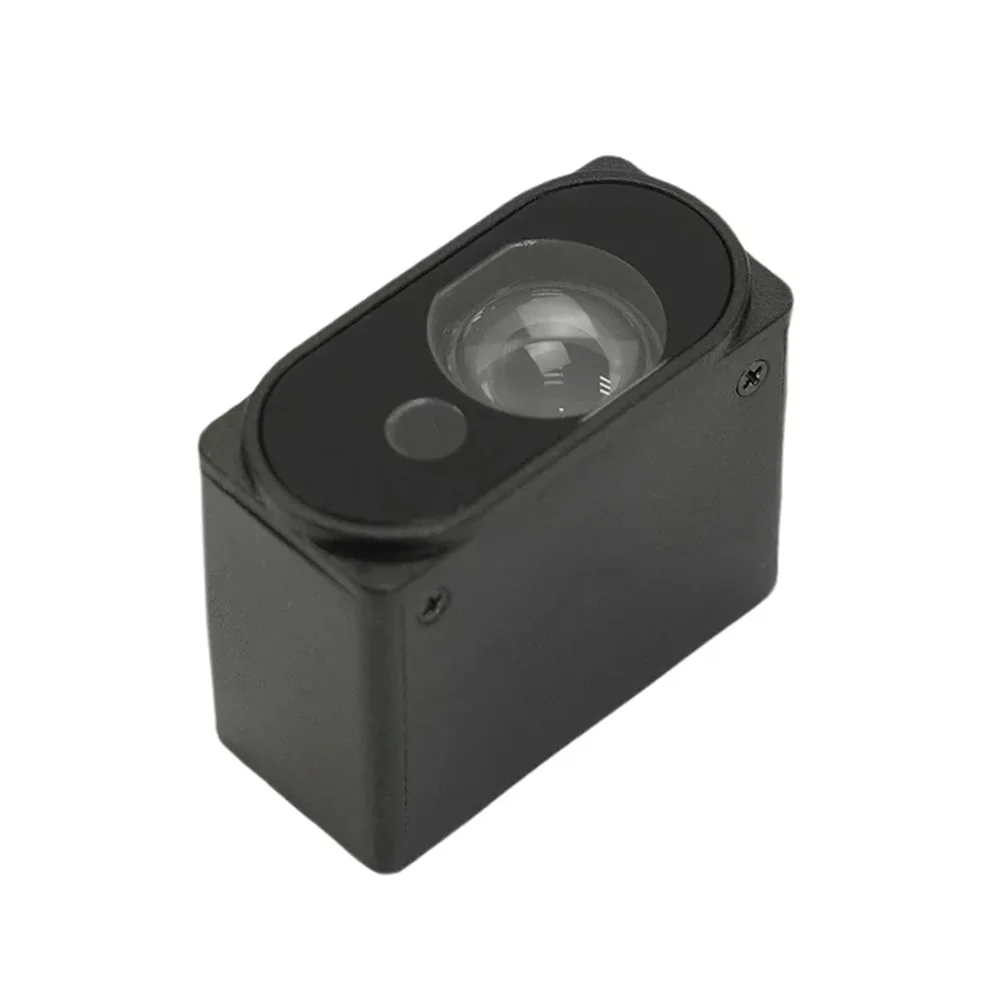

DFRobot 50m TOF Laser Ranging Sensor (±3cm Accuracy, 100Hz, 100K LUX Resistant)
The DFRobot 50m TOF Laser Ranging Sensor is a high-performance dTOF (Direct Time-of-Flight) module offering precise distance measurements up to 50 meters with ±3cm accuracy. It features a 100Hz refresh rate, 100K LUX sunlight resistance, and supports UART, I2C, and GPIO interfaces for seamless integration with Arduino, Raspberry Pi, ESP32, and other microcontroller platforms.
Features
- Extended 50-meter measurement range with ±3cm high accuracy.
- High-speed 100Hz refresh rate for real-time dynamic sensing.
- Robust 100K LUX ambient light resistance for reliable outdoor operation.
- Multi-interface support: UART, I2C, and GPIO for flexible system integration.
- Compact form factor (80mm x 45mm) and lightweight design for versatile mounting.
Out of stock
This sensor employs advanced Direct Time-of-Flight (dTOF) technology, which calculates distance by measuring the precise round-trip time of a modulated laser pulse. This method provides superior accuracy and stability compared to traditional infrared or ultrasonic ranging, especially in varying light conditions. The module’s integrated signal processing ensures consistent performance across its full 0.1m to 50m range.
Engineered for demanding environments, the sensor’s optical system is designed to reject intense ambient light up to 100,000 lux, making it suitable for direct sunlight applications. Its 5V DC operation and digital communication protocols (UART/I2C) allow for straightforward connection to industrial PLCs, robotics controllers, and embedded development systems without requiring complex analog signal conditioning.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 8 × 4.5 cm |
