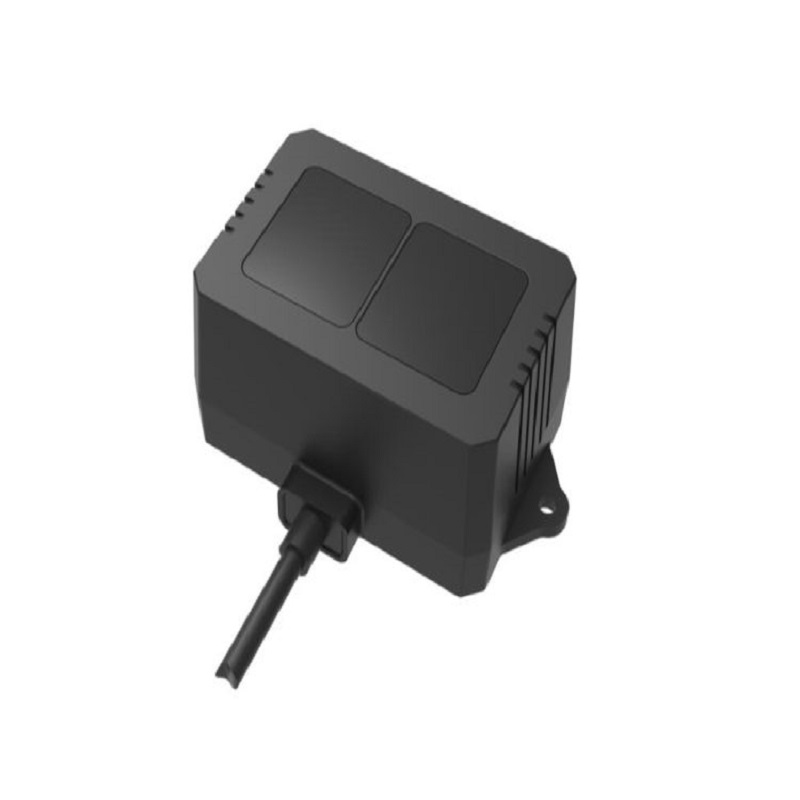

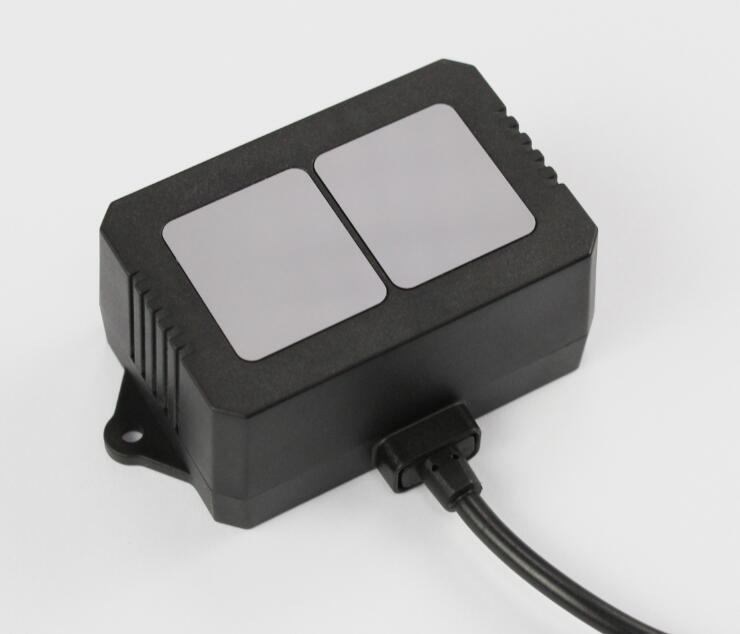

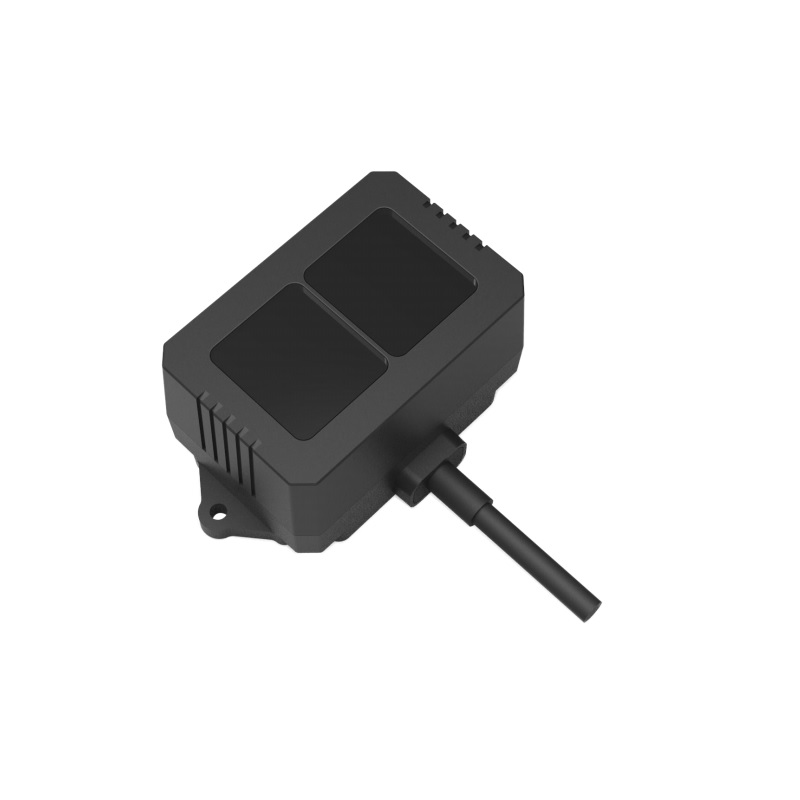

Benewake TF02-i-CAN LiDAR Distance Sensor Module, Range: 0.1m~40m
The Benewake TF02-i-CAN is a single-point Time-of-Flight (ToF) LiDAR distance sensor module designed for industrial and UAV applications. It features a wide 7-30V DC input range, CAN bus communication interface, and IP65-rated environmental protection for reliable operation in demanding conditions.
Features
- Long-range ToF LiDAR with 0.1 to 40 meter measurement capability.
- Industrial CAN bus (Controller Area Network) communication interface.
- Wide 7V to 30V DC input voltage range with reverse polarity protection.
- IP65-rated enclosure provides dust-tight and water-jet resistant protection.
- High ambient light immunity, operating reliably under 100,000 lux conditions.
Out of stock
The TF02-i-CAN sensor utilizes Time-of-Flight (ToF) laser ranging technology to provide accurate, real-time distance measurements. Its narrow 3° field of view ensures precise targeting, while the integrated optical system is housed in a high-transmittance infrared shell for optimal performance. The module is engineered for stability across a wide -20°C to 60°C operating temperature range.
Designed for system integration, the sensor outputs distance data via a robust CAN bus interface, making it suitable for direct connection to industrial PLCs, vehicle ECUs, and flight controllers like Pixhawk and APM. The built-in signal conditioning and protective circuitry ensure reliable operation in electrically noisy environments.
Additional Information
| Weight | 0.183 kg |
|---|---|
| Dimensions | 13 × 10 × 5 cm |
