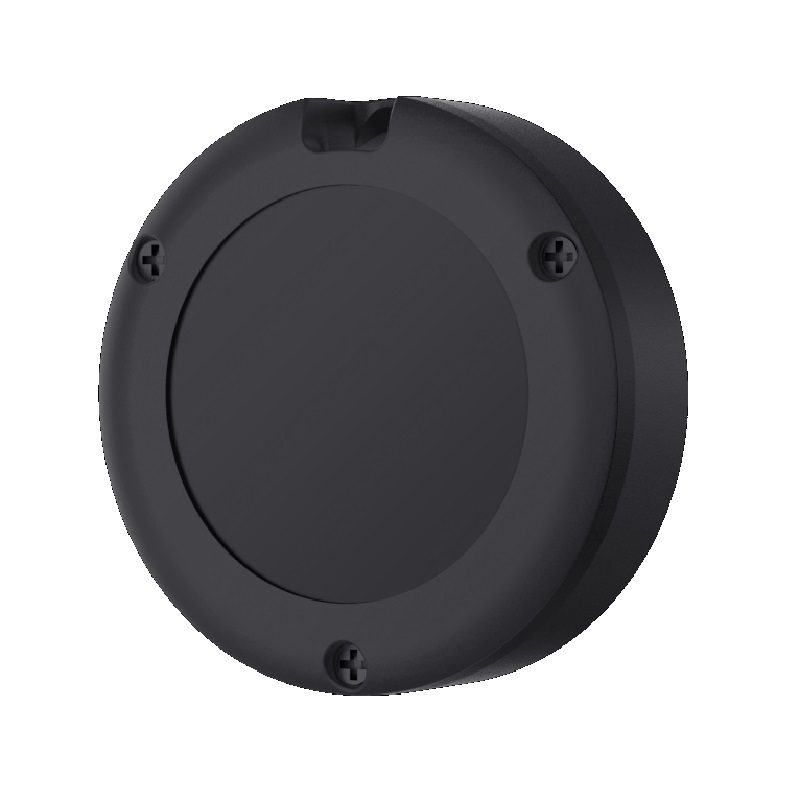

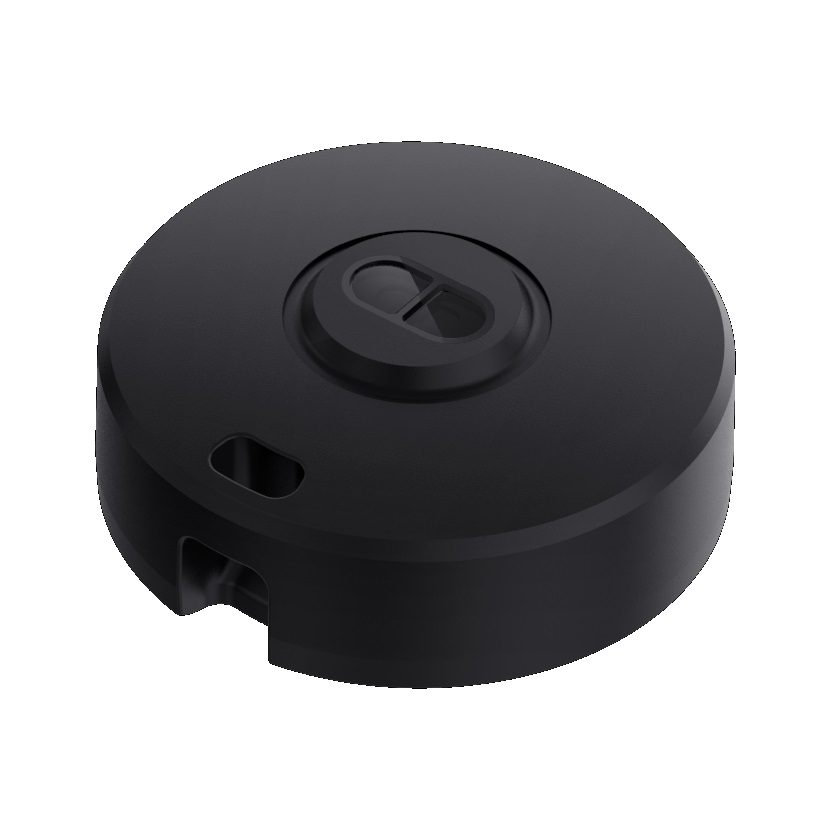

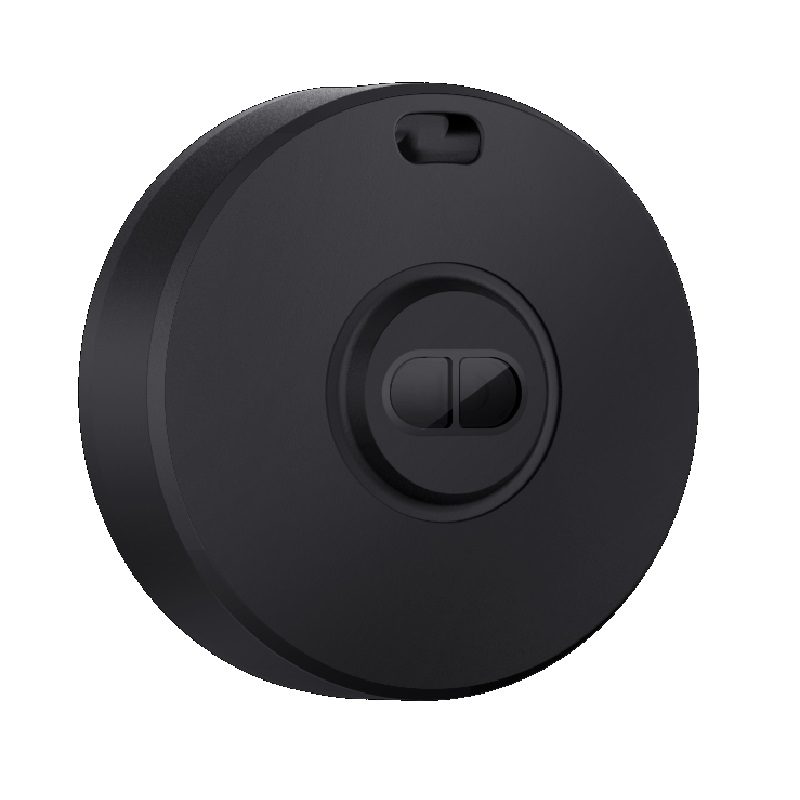

MOKO Smart Smart S02R (3M) TOF Range Sensor Beacon - IP67 Waterproof, BLE 5.1
The MOKO Smart Smart S02R is a compact, IP67-rated Time-of-Flight (TOF) range sensor beacon designed for IoT asset monitoring and proximity detection. It provides precise distance measurement up to 3 meters via Bluetooth 5.1 connectivity, making it compatible with gateways, smartphones, and industrial BLE data loggers.
Features
- IP67 waterproof and dustproof housing for reliable operation in demanding environments.
- Time-of-Flight (TOF) technology delivers precise distance measurement from 40mm to 3000mm.
- Selectable short/long-range modes with ±10mm accuracy in short mode and ±1% in long mode.
- Integrated 600mAh lithium battery provides up to 3 years of operational life in periodic mode.
- Compact, lightweight design (Φ38.0 x 14.5mm, 17g) with 3M adhesive for easy installation.
Out of stock
The MOKO Smart S02R utilizes advanced Time-of-Flight (TOF) sensing technology to measure the round-trip time of a modulated infrared light signal, enabling highly accurate, non-contact distance readings. Its integrated low-power Bluetooth 5.1 radio transmits measurement data to compatible receivers, supporting real-time monitoring and asset tracking in IoT networks.
Engineered for durability, the sensor features an IP67-sealed enclosure that protects its internal electronics from dust ingress and temporary water immersion. An energy-efficient periodic working mechanism and a wide operating temperature range of -20°C to +60°C ensure reliable, long-term performance in diverse indoor and sheltered outdoor applications, from smart offices to industrial facilities.
Additional Information
| Weight | 0.017 kg |
|---|---|
| Dimensions | 3.5 × 3.5 × 1.45 cm |
