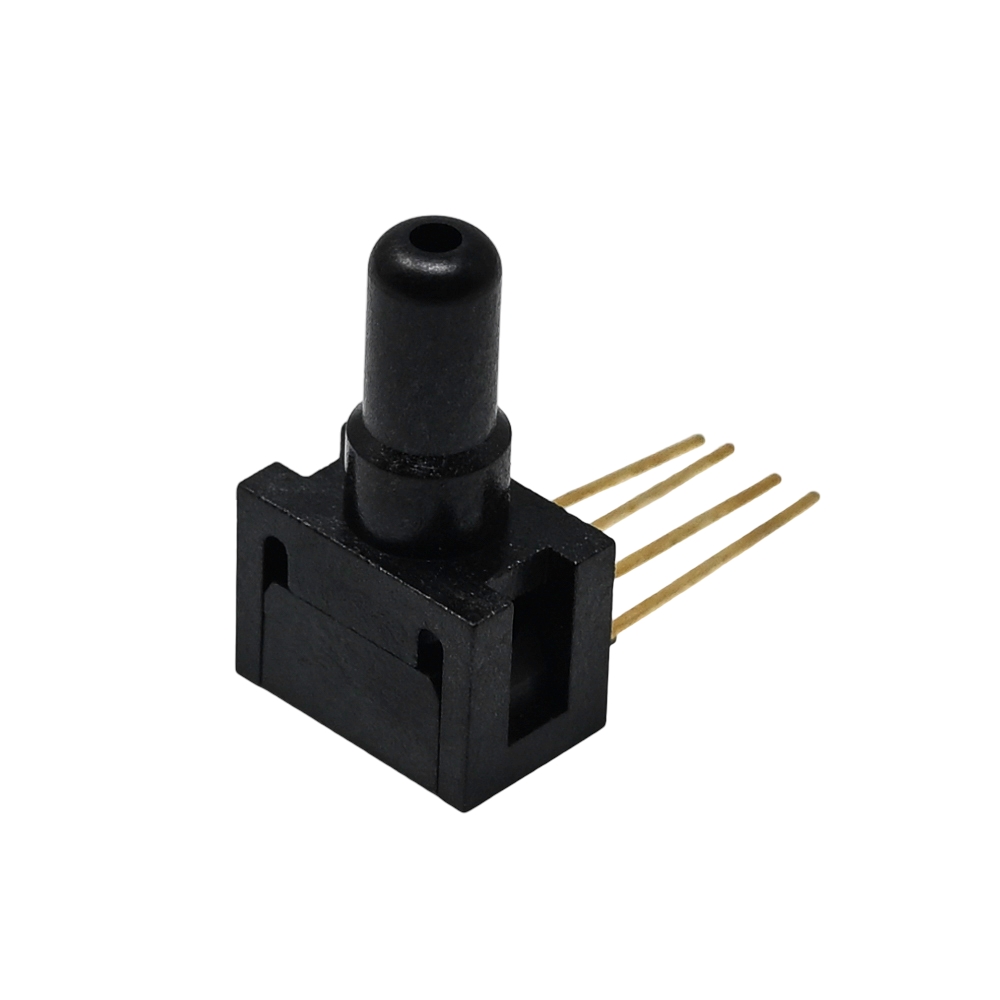

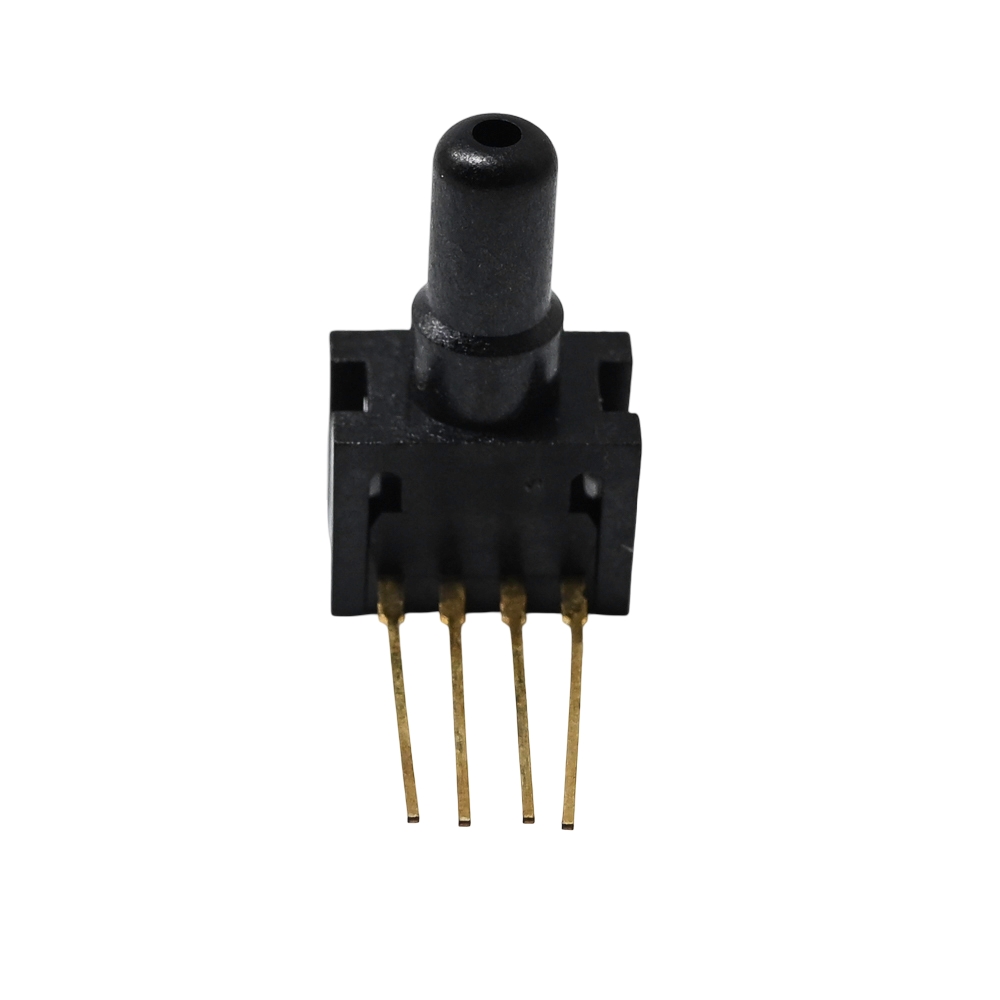

Honeywell 26PCAFA6G Gauge Pressure Sensor 1 psi - Analog Output, Through-Hole Mount
The Honeywell 26PCAFA6G is a board-mount gauge pressure sensor with a 1 psi operating range and 0.25% accuracy, delivering a 10V analog output for integration into industrial PCBs, HVAC systems, and automotive control modules.
Features
- Gauge pressure sensor with a 1 psi operating range and 0.25% accuracy.
- Provides a 10V full-scale analog voltage output for direct ADC interfacing.
- Robust operating temperature range from -40°C to 80°C for harsh environments.
- Through-hole PCB mounting for automated assembly and reliable solder joints.
- Compact, board-level design ideal for space-constrained applications.
Out of stock
The Honeywell 26PCAFA6G is a piezoresistive silicon micromachined pressure sensor configured for gauge pressure measurement. It translates a 1 psi full-scale pressure input into a proportional 10V analog output, enabling straightforward connection to microcontrollers, PLCs, or data acquisition systems via an ADC. The sensor’s internal signal conditioning provides a calibrated, temperature-compensated output for stable readings.
Encapsulated in a robust package, the 26PCAFA6G is designed for through-hole PCB mounting, facilitating automated manufacturing and ensuring mechanical stability. Its specified operating temperature range of -40°C to 80°C allows for deployment in demanding industrial, HVAC, and automotive environments where reliable pressure monitoring is critical for system control and safety.
Additional Information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 6 × 8 × 3 cm |
