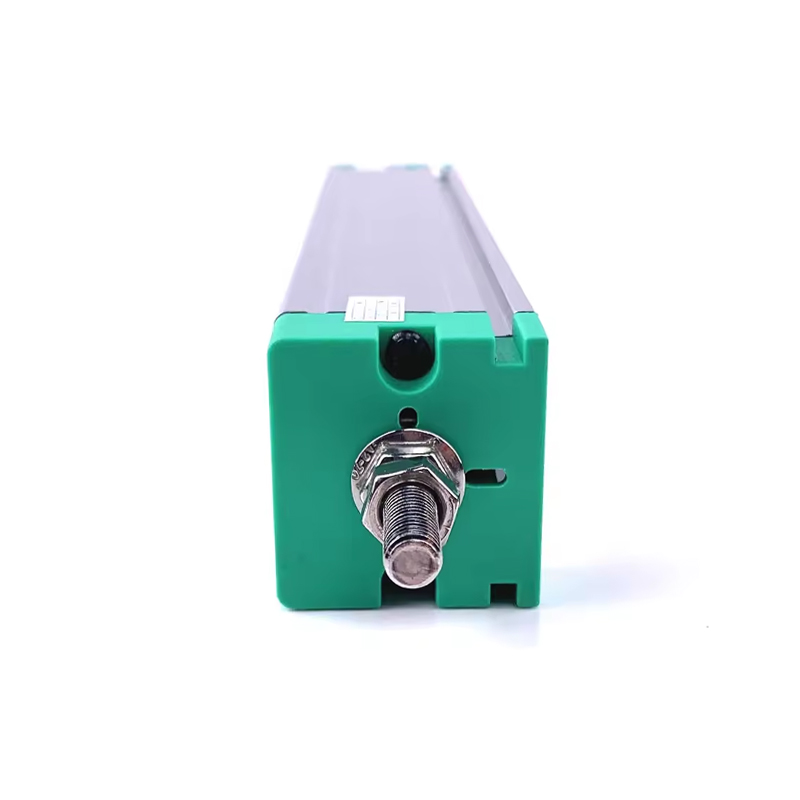

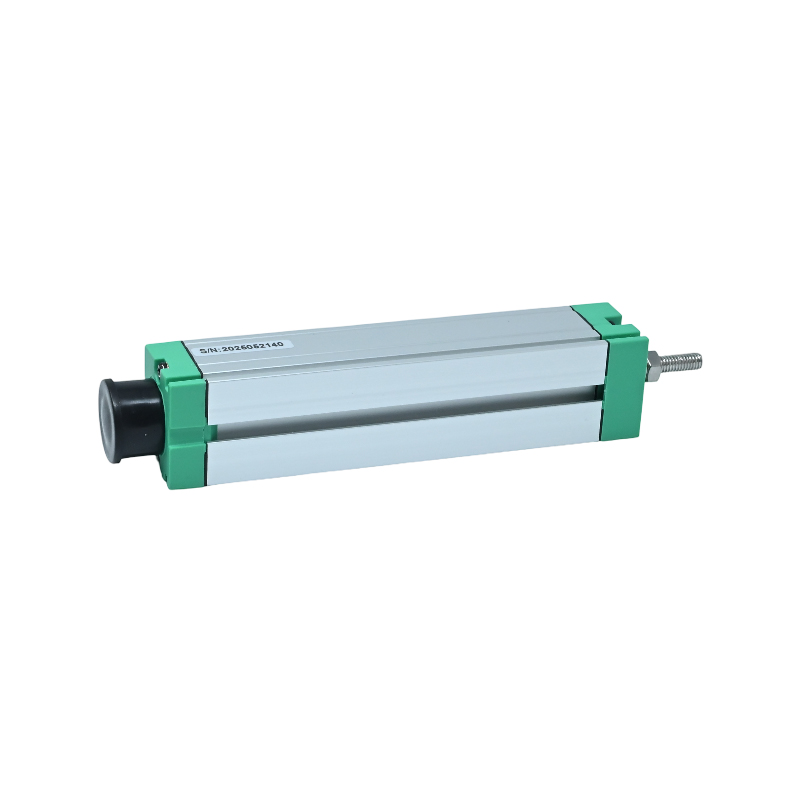

MIRAN LS2-75MM Mini Linear Displacement Sensor - 0-24V DC Analog Output
The MIRAN LS2-75MM is a compact, rod-pull type linear displacement sensor delivering a precise analog resistance output proportional to its 75mm stroke, compatible with industrial PLCs and 0-24V DC control systems for position feedback in automated machinery.
Features
- 75mm linear stroke with ±0.1% high linearity accuracy
- Conductive plastic resistive potentiometer for stable analog output
- Wide operating voltage range of 0 to 24V DC

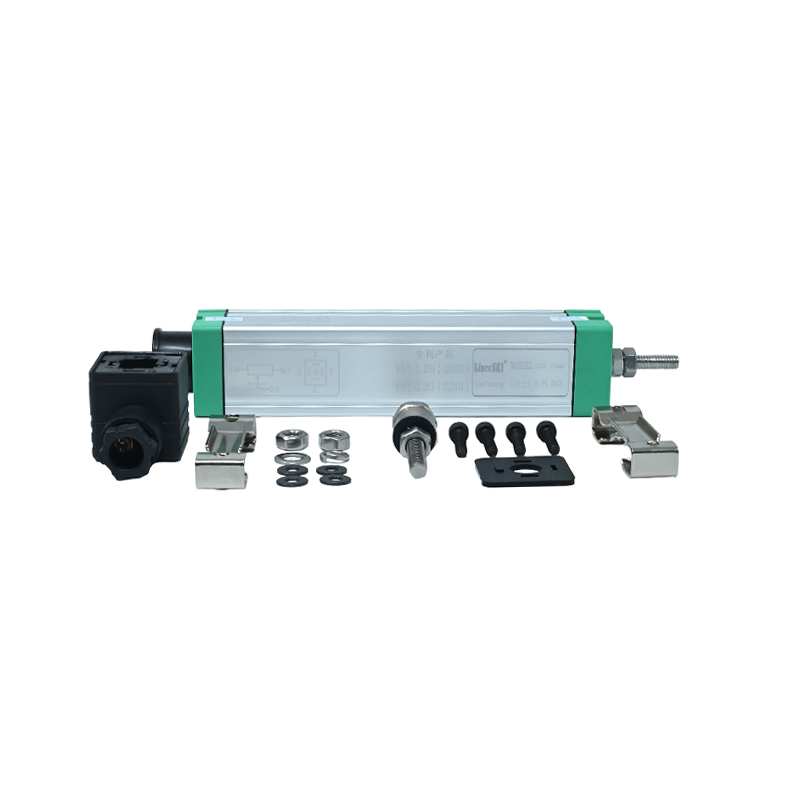

- Mini rod-pull type with flange/bracket mounting for compact installations
- Durable construction ensures long mechanical life in industrial environments
Out of stock
The MIRAN LS2-75MM Mini Linear Displacement Sensor operates on a conductive plastic resistive potentiometer principle. As the internal rod is displaced, it changes the electrical resistance, providing a smooth, proportional analog output signal that corresponds directly to the linear position over its 75mm stroke. This design ensures high repeatability and minimal signal noise for precise motion control feedback.
Engineered for industrial automation, the sensor’s miniature rod-pull structure and robust internal components are built to withstand continuous operation in machinery such as injection molding machines and automated test equipment. Its wide 0-24V DC supply voltage compatibility allows for flexible integration into various control system architectures without requiring additional signal conditioning.
Additional Information
| Weight | 0.194 kg |
|---|---|
| Dimensions | 19 × 3.3 cm |
