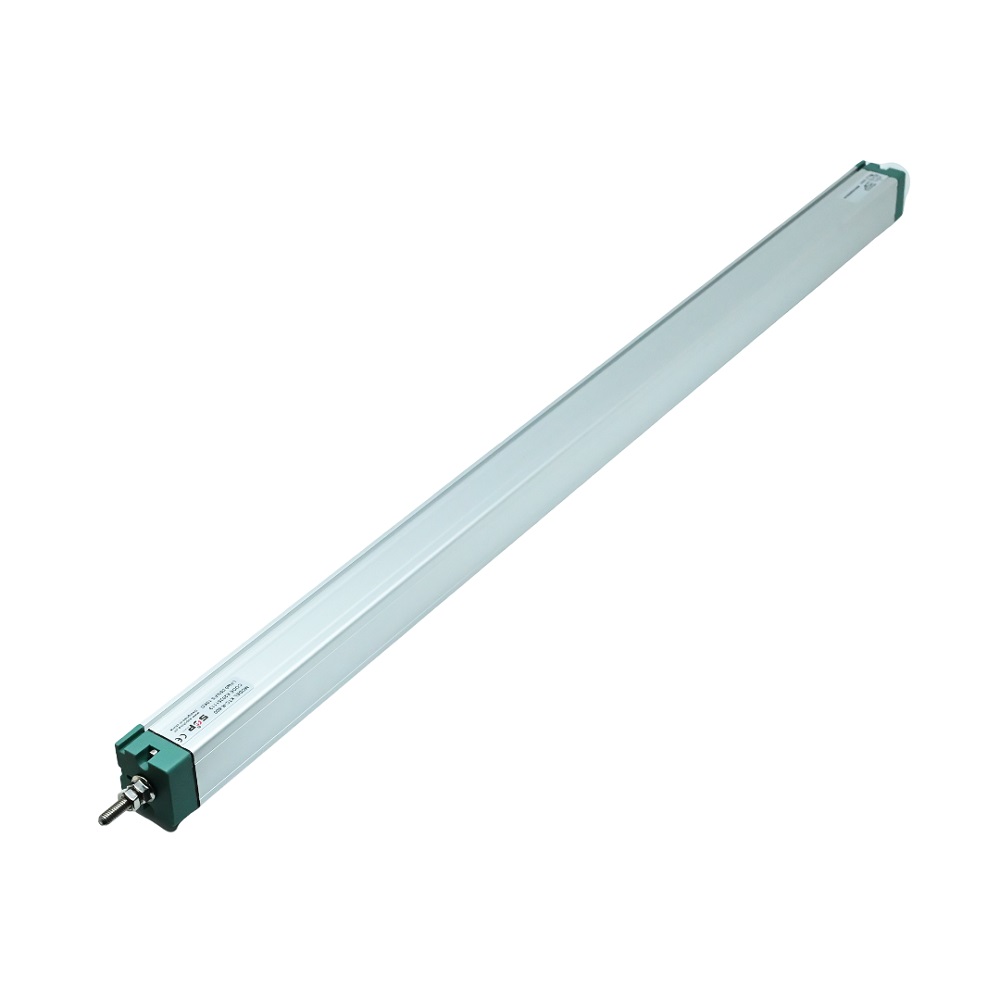

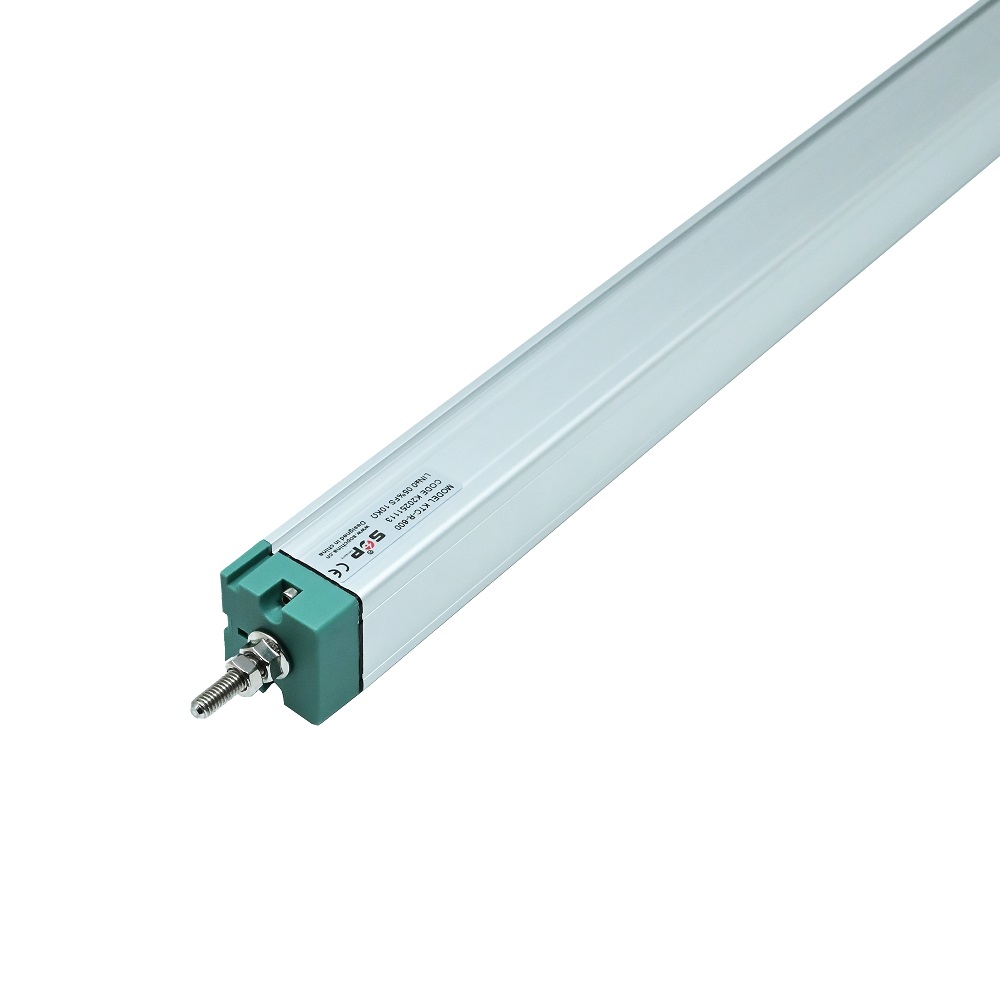

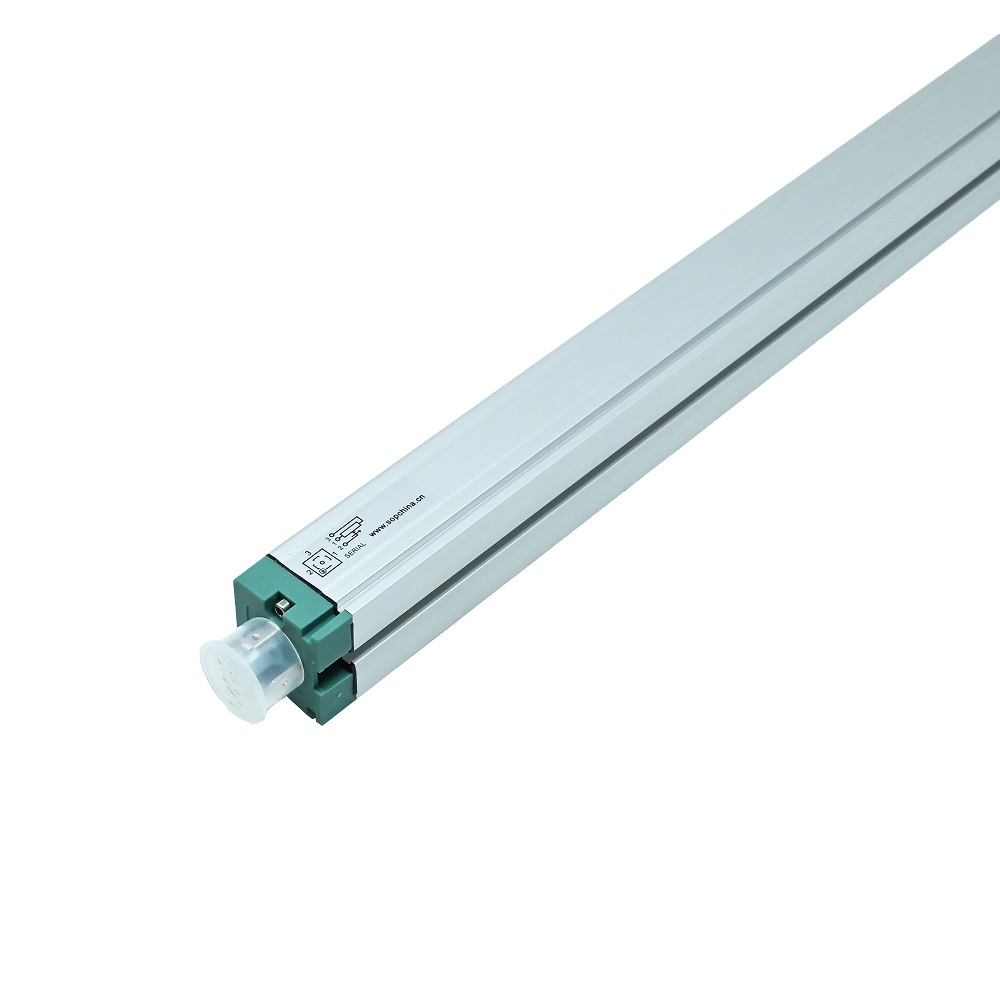

SOP KTC-R-600mm Linear Displacement Sensor, 10KΩ Resistance, ≤28VDC, Rod-Type Flange Mount
The SOP KTC-R-600mm is a rod-type linear displacement sensor utilizing a 10KΩ resistive potentiometer for precise analog position feedback. Designed for industrial control systems, it operates at ≤28VDC and is engineered for integration with hydraulic cylinders, injection molding machines, and PLC-based automation.
Features
- 600mm stroke length for long-range linear position measurement
- 10KΩ resistive potentiometer provides direct analog resistance output

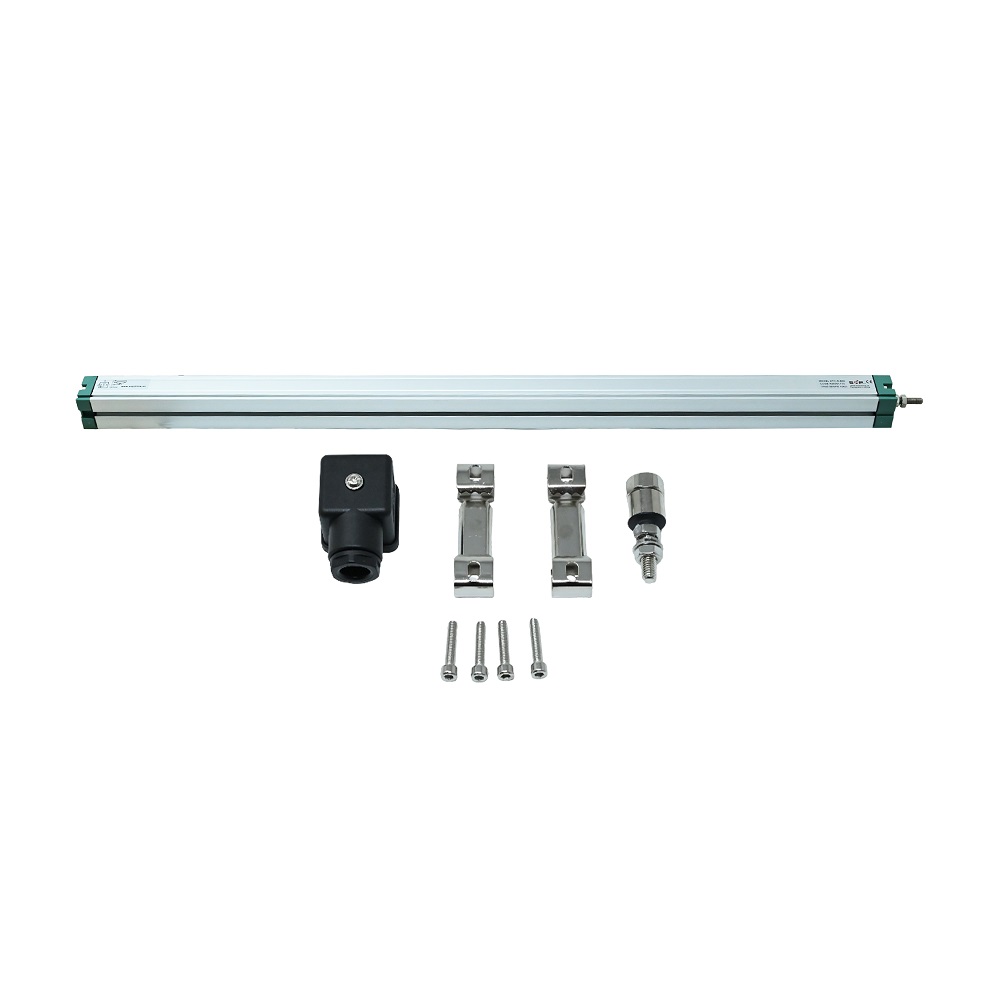

- Robust rod-type mechanical structure with flange mounting
- Operates at ≤28VDC supply voltage with low 5µA working current
- Designed for heavy-duty industrial environments and machine-tool feedback
Out of stock
The SOP KTC-R series linear displacement sensor employs a precision resistive potentiometer technology to translate mechanical rod movement into a corresponding electrical resistance change. This provides a reliable, non-amplified analog signal proportional to position over its full 600mm stroke.
Engineered for durability in harsh industrial settings, its mechanical construction ensures smooth linear response and high repeatability. The sensor is designed for direct integration into systems requiring accurate, real-time position feedback for control and monitoring applications.
Additional Information
| Weight | 0.792 kg |
|---|---|
| Dimensions | 72 × 3.2 cm |
