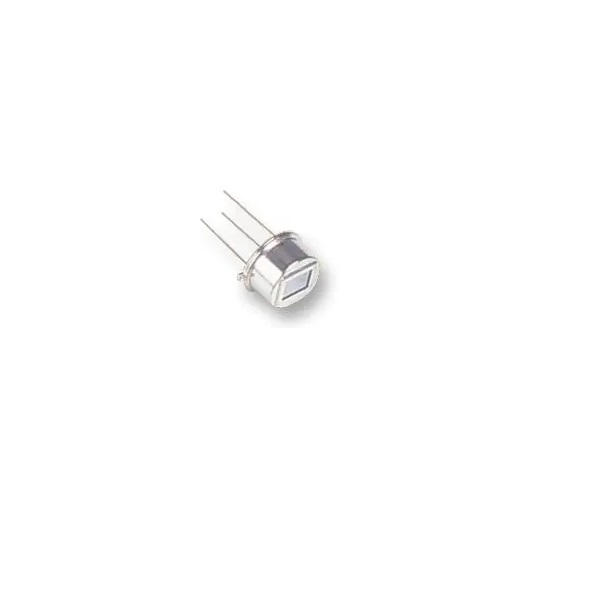

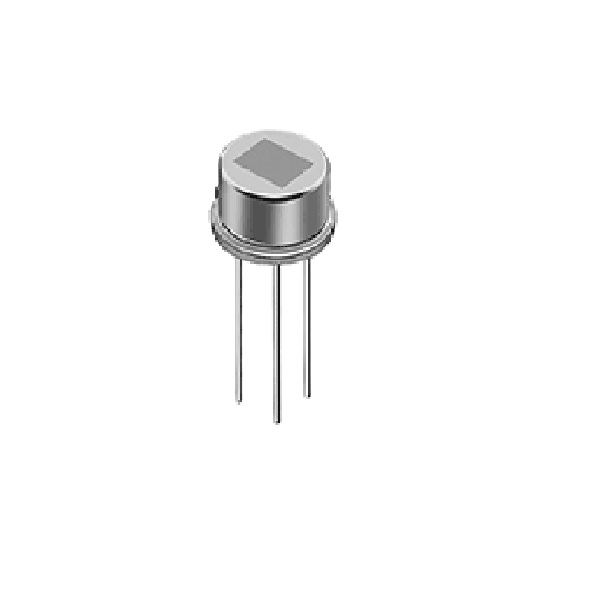

Murata IRA-S210ST01 PIR Sensor, Lead Type, 45° FOV, IRA-S Series
The Murata IRA-S210ST01 is a lead-type pyroelectric infrared (PIR) sensor designed for motion detection in security systems and consumer electronics. It operates from a 2-15V DC supply and features a 45° field of view, delivering reliable performance across an industrial temperature range of -40°C to 70°C.
Features
- Pyroelectric infrared sensor with high sensitivity and excellent S/N ratio.
- Wide operating voltage range from 2V to 15V DC for flexible system integration.
- 45° symmetrical field of view (theta1=theta2=45°) for consistent detection coverage.
- Industrial-grade operating temperature range from -40°C to +70°C.
- Lead-type package with dual (2.0×1.0mm) electrodes for reliable soldering.
Out of stock
The IRA-S210ST01 leverages Murata’s advanced ceramic technology to provide a robust and sensitive pyroelectric infrared sensing element. It detects changes in infrared radiation caused by moving objects, making it ideal for passive infrared (PIR) motion detection applications. The sensor’s internal construction ensures high responsivity and stability.
Designed for long-term reliability, it features a 5-micrometer long-pass optical filter to focus on the relevant IR spectrum and reject unwanted noise. Its wide supply voltage compatibility allows for direct integration into both 3.3V and 5V logic systems, as well as higher-voltage industrial controls, without requiring a dedicated regulator.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 9 × 7 × 1 cm |
