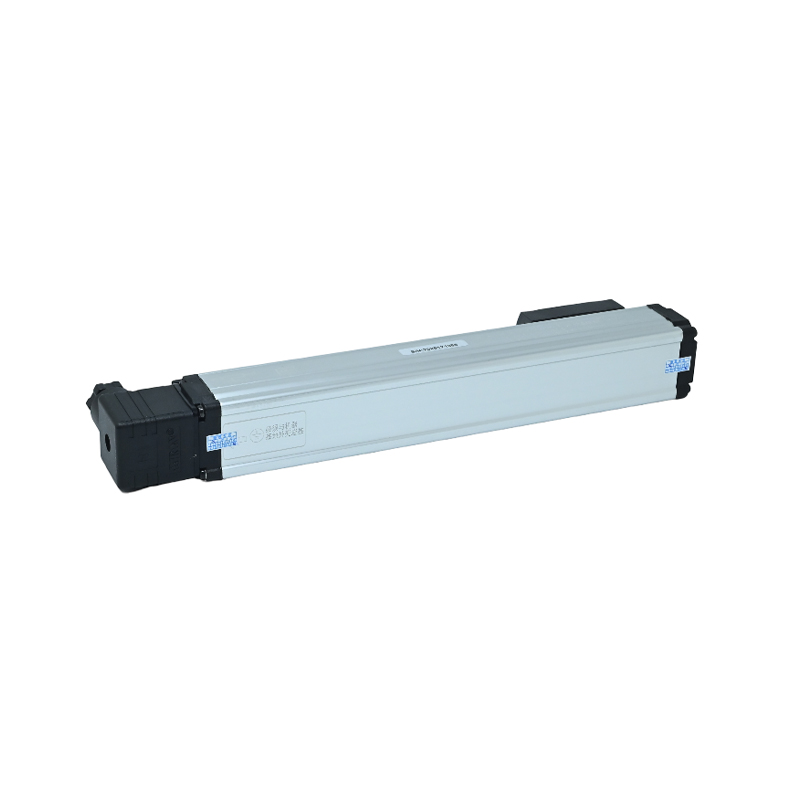

MIRAN KTF1-130MM Slider Type Linear Displacement Sensor - 130mm Stroke, Potentiometer, 28V DC

The primary output is an analog resistance that varies proportionally with the slider position, representing 0-100% of the applied supply voltage. For integration with standard industrial controllers, this resistance output can be converted to 0-5V, 0-10V, or 4-20mA signals using an external signal conditioning module or a built-in converter if specified.

The sensor is rated for a supply voltage of up to 28V DC. It is crucial not to exceed this voltage to prevent damage to the internal conductive plastic track and wiper mechanism. The sensor draws a very low working current of approximately 10µA.

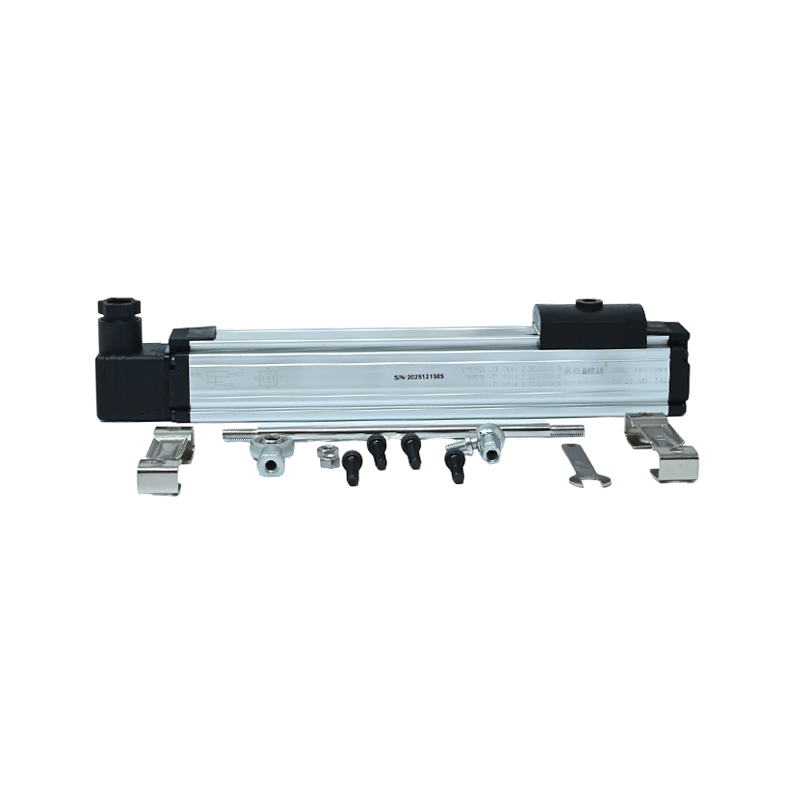

The KTF1-130MM features a slider-type mechanical structure designed for linear-guide or bracket mounting. The sensor body is fixed, and the slider is attached to the moving part whose displacement is to be measured. Ensure the mounting is rigid and aligned to prevent binding and ensure accurate, repeatable position feedback.

Yes, the potentiometer-based design provides a continuous analog output corresponding to the exact slider position across the entire 130mm stroke. This makes it ideal for real-time, continuous position monitoring and closed-loop control applications in industrial automation, such as controlling actuator extension or monitoring material feed length.
