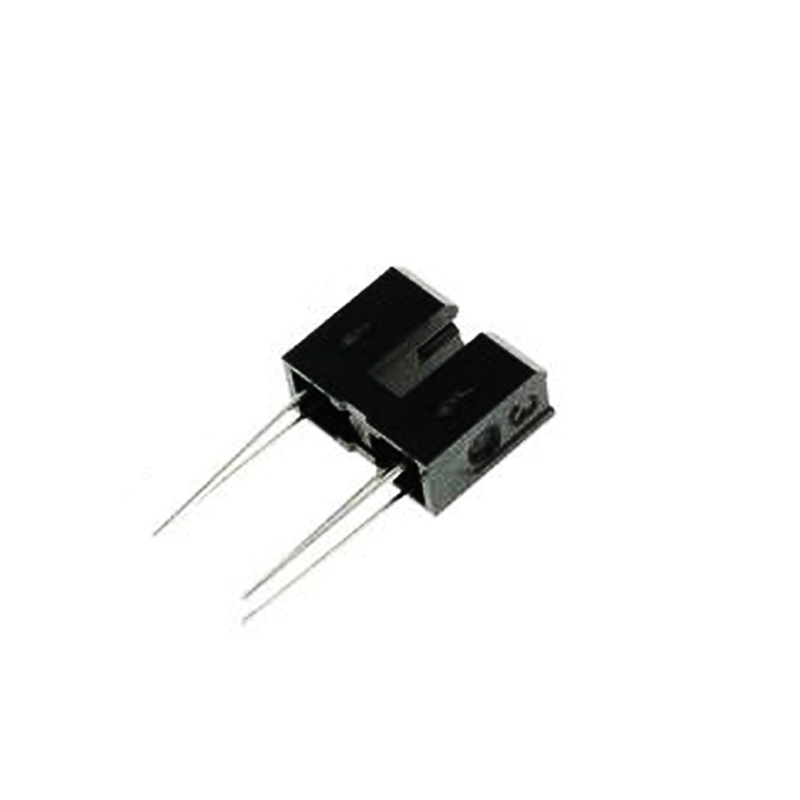

Sharp Microelectronics GP1S53VJ000F Transmissive Photointerrupter Sensor, 5mm Gap, 0.5mm Slit, Phototransistor Output
The Sharp Microelectronics GP1S53VJ000F is a transmissive photointerrupter module featuring a 5mm sensing gap and phototransistor output, designed for precise non-contact object detection in industrial controls, encoders, and position sensing systems.
Features
- Transmissive optical design with integrated IR emitter and phototransistor detector
- 5.0 mm wide sensing gap with a 0.5 mm vertical slit for precise edge detection
- Through-hole (DIP) mounting for robust mechanical integration
- Wide operating temperature range from -25°C to +85°C
- Compact molded package measuring 13.7 x 10 x 5.2 mm
Out of stock
The GP1S53VJ000F is a transmissive photointerrupter where an infrared LED emitter and a phototransistor detector are precisely aligned within a single molded housing, separated by a 5mm air gap. When an opaque object passes through this gap, it interrupts the IR beam, causing a corresponding change in the phototransistor’s output current. This provides a reliable digital or analog signal for position, speed, or end-stop detection.
Its vertical slit design on the detector side (0.5mm width) enhances resolution for detecting fine edges or alternating motion patterns, such as in rotary encoders or linear position feedback systems. The through-hole package ensures secure soldering and high mechanical strength, suitable for vibration-prone industrial and automotive environments.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 1.37 × 1 × 0.52 cm |
