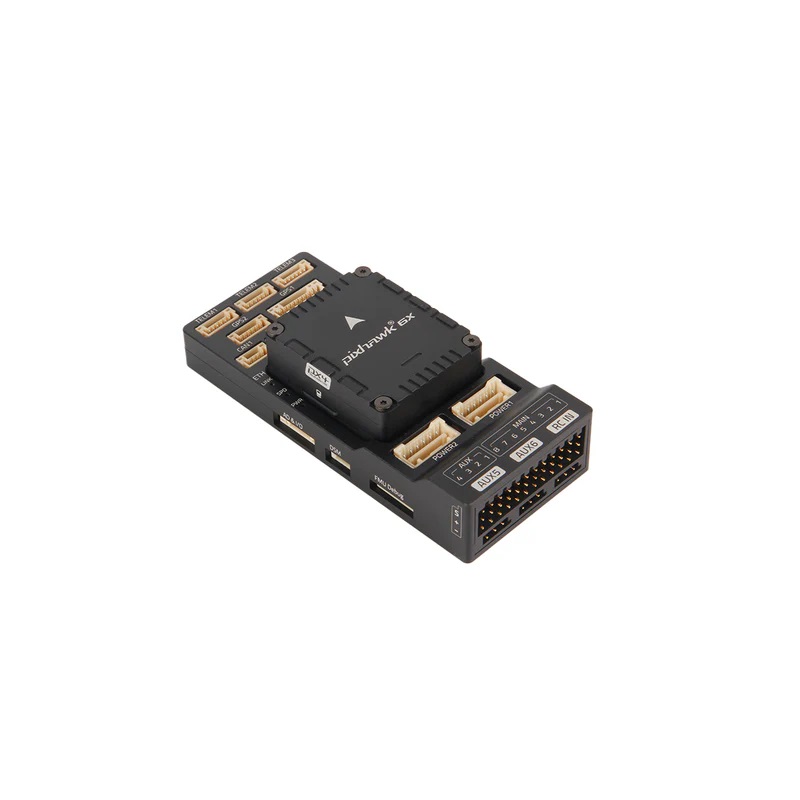

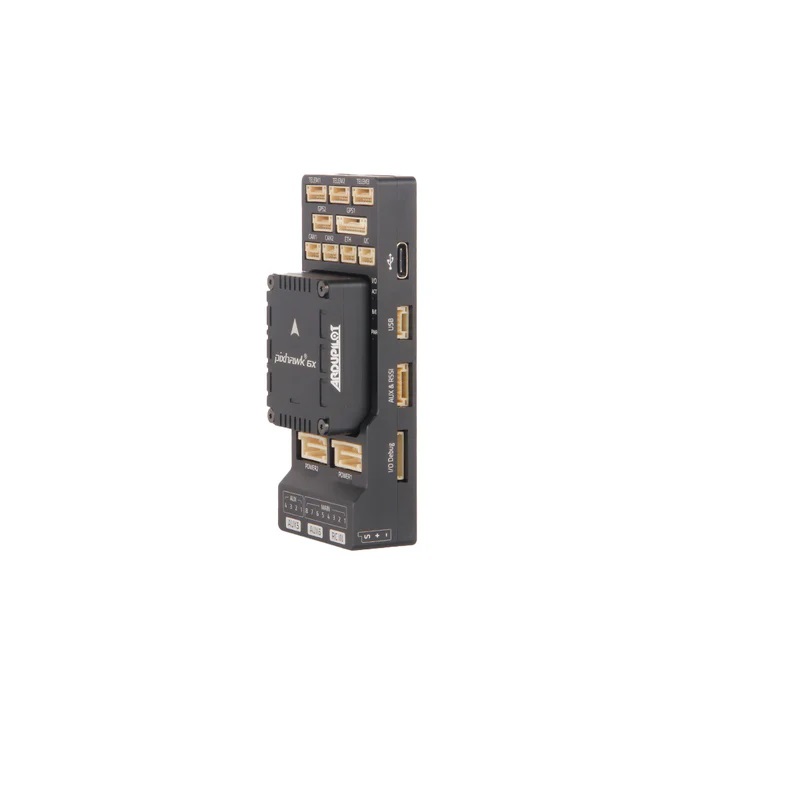

Holybro Pixhawk 6X Standard Set v2A + M10 GPS
The Holybro Pixhawk 6X Standard Set v2A is a high-performance flight controller system featuring a STM32H753 processor, triple-redundant IMUs, dual barometers, and an integrated NXP Semiconductors EdgeLock SE050 secure element. Designed for industrial and commercial UAVs, it includes a vibration-isolated module, PM02 power module, and an M10 GPS for precise navigation and robust operation.
Features
- STM32H753 main processor (480 MHz) with separate STM32F103 IO processor for high-performance computing.
- Triple-redundant ICM-45686 IMUs with BalancedGyroâ„¢ Technology and dual barometers (ICP20100 & BMP388) for maximum sensor reliability.
- Integrated NXP Semiconductors EdgeLock SE050 secure element for encrypted data handling and secure boot.
- Vibration-isolated sensor module with custom-formulated damping material for optimal performance in harsh flight conditions.

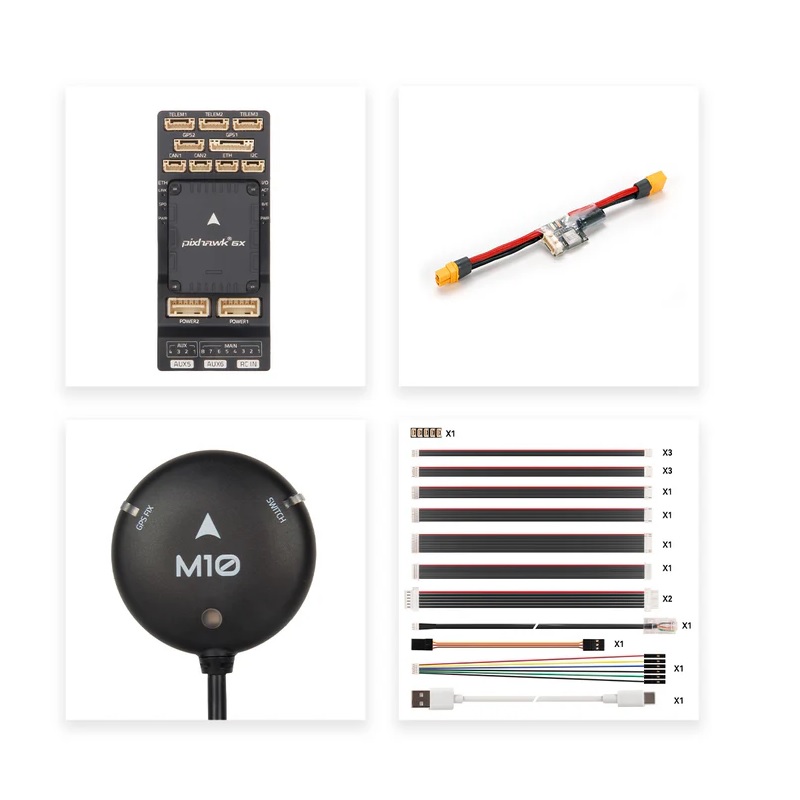

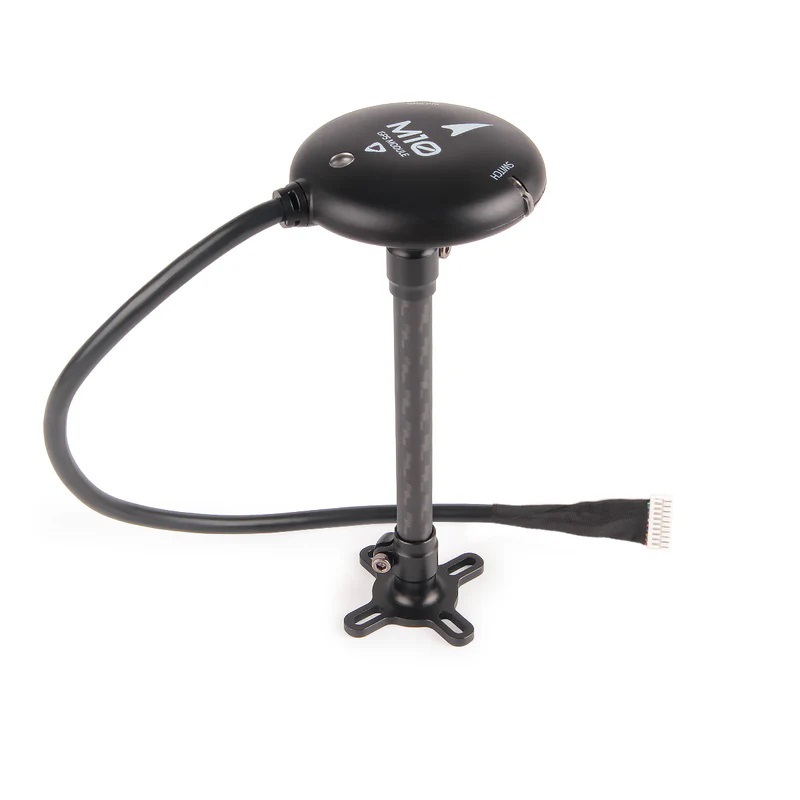

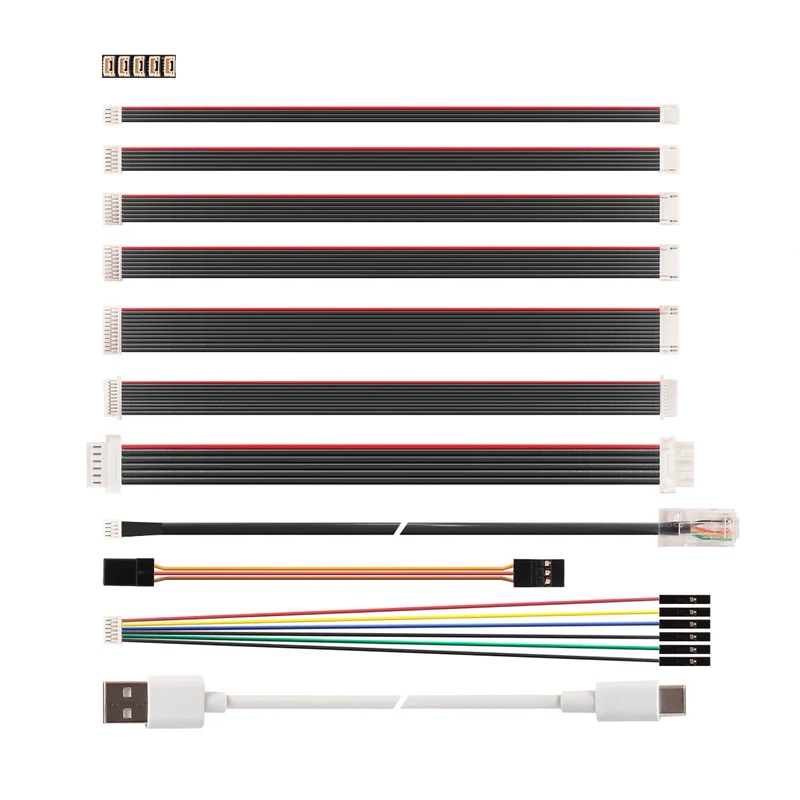

- Complete standard set includes Pixhawk 6X module, v2A baseboard, PM02 power module, cable set, and M10 GPS module.
Out of stock

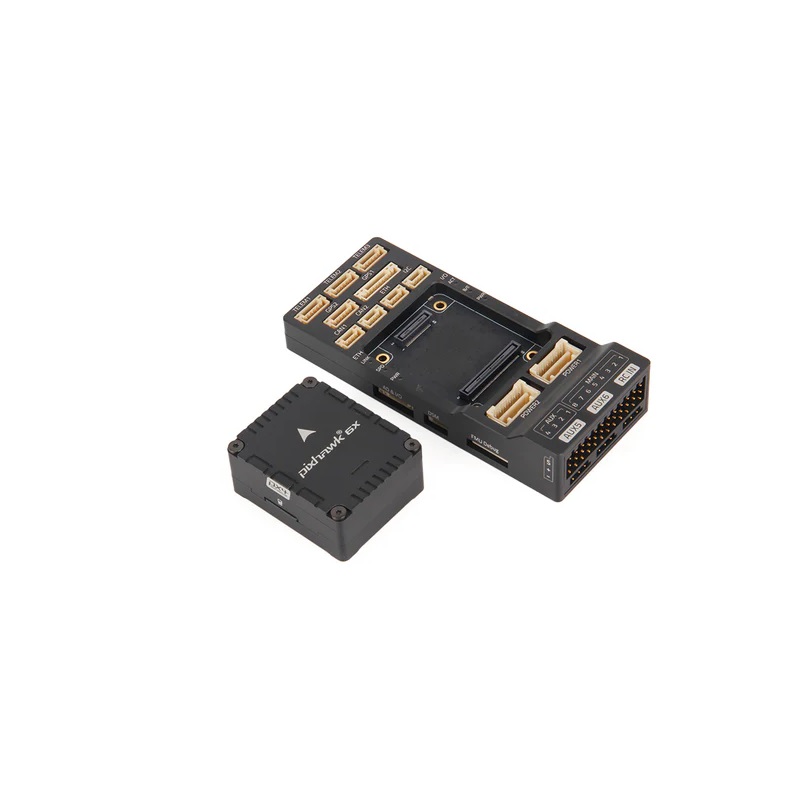

The Pixhawk 6X Standard Set v2A is engineered for demanding UAV applications requiring high computational power and exceptional sensor redundancy. Its modular design separates the vibration-isolated flight controller module from the baseboard, protecting critical inertial sensors from motor and propeller vibrations. This isolation, utilizing the same material as the Pro variant, ensures stable flight data even on larger, high-vibration platforms.

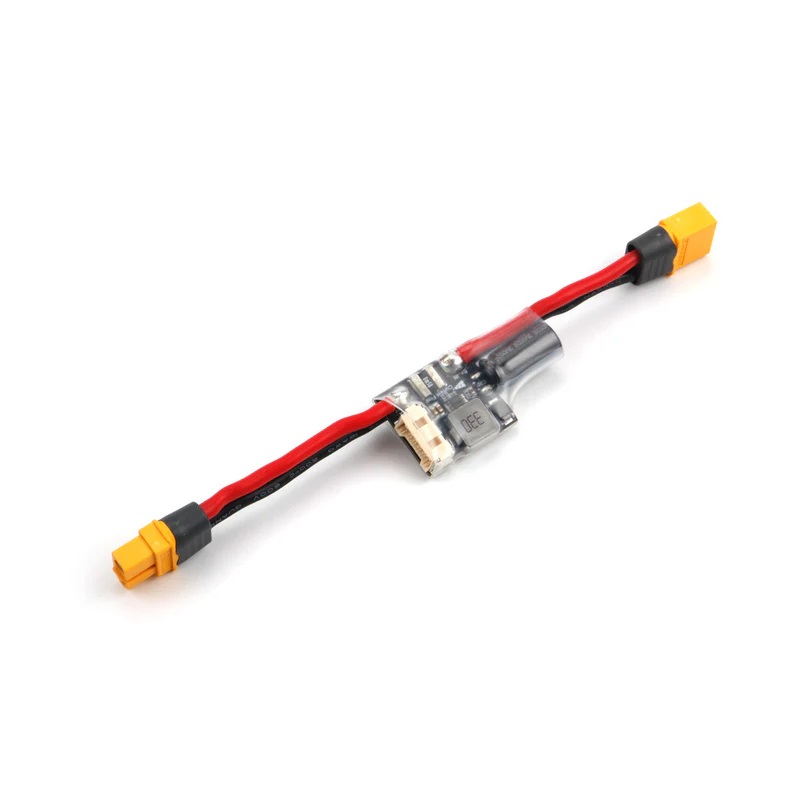

Power management is handled by the included PM02 module, which provides clean power and current sensing. The system accepts multiple input sources: a 6V servo rail, a 0–36V wide-range input, and standard USB power. This flexibility supports integration into complex multi-rotor, fixed-wing, and VTOL systems running ArduPilot or PX4 firmware, where reliability and precision are paramount.
Additional Information
| Weight | 0.327 kg |
|---|---|
| Dimensions | 10 × 14 × 7 cm |
