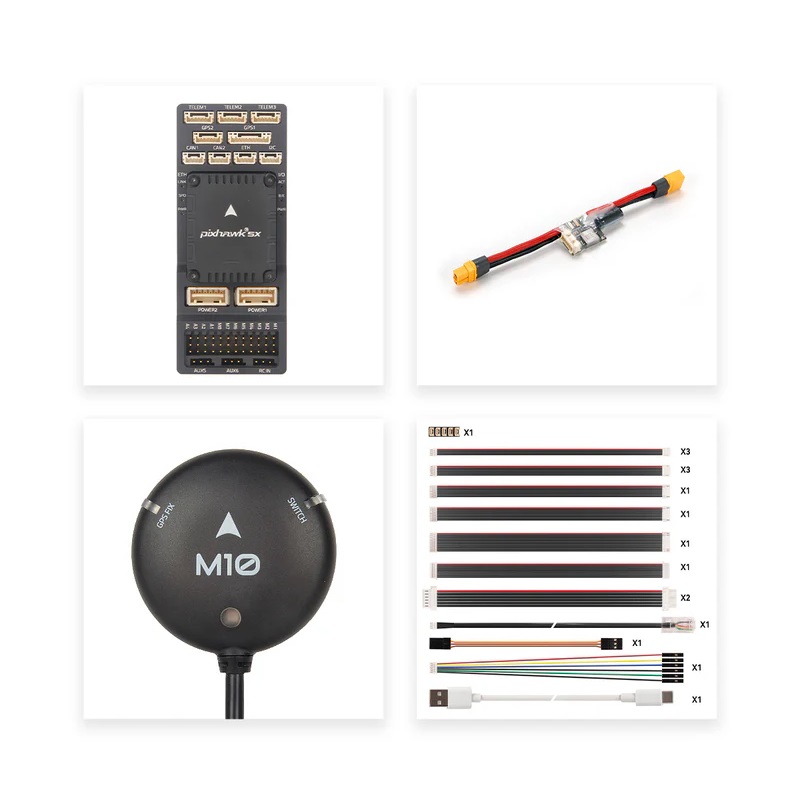

Holybro Pixhawk 5X Standard Set v2B+M10 GPS
The Holybro Pixhawk 5X Standard Set v2B+M10 GPS is a professional-grade autopilot system built on the Pixhawk FMUv5X open standard, featuring triple-redundant IMUs, dual barometers, and an STM32F7 processor for robust autonomous vehicle control. It comes pre-installed with PX4 Autopilot firmware and is fully compatible with ArduPilot, making it suitable for advanced academic, commercial, and industrial UAV applications.
Features
- Triple-redundant, low-noise IMUs (ICM-20649, ICM-42688P, ICM-20602/BMI088) with advanced vibration isolation.
- Dual BMP388 barometers and independent power control for enhanced sensor reliability and failover.
- STM32F765 FMU processor with 2MB flash and 512KB RAM for complex algorithm execution.
- Integrated SPI5 external sensor bus with dual chip select and Ethernet PHY for mission computer connectivity.
- Dual SMBus smart battery ports with INA226 support for comprehensive power monitoring.
Out of stock
The Pixhawk 5X represents the latest evolution in the Pixhawk flight controller lineage, delivering a hardened sensor domain with triple-redundant inertial measurement units and dual barometers. Each sensor set is powered by separate low-dropout regulators (LDOs) and features advanced mechanical isolation to filter high-frequency vibrations, ensuring precise attitude and altitude data even in demanding flight conditions.
Architected around the powerful STM32F765 microcontroller, the system provides substantial computational headroom for running the PX4 or ArduPilot firmware stacks. The inclusion of an SPI5 bus with dedicated chip select lines and an integrated Microchip Technology LAN8742AI-CZ-TR Ethernet PHY facilitates seamless integration of external peripherals and high-bandwidth communication with companion computers, enabling complex autonomous missions and data-intensive applications.
Additional Information
| Weight | 0.299 kg |
|---|---|
| Dimensions | 9 × 15 × 8 cm |
