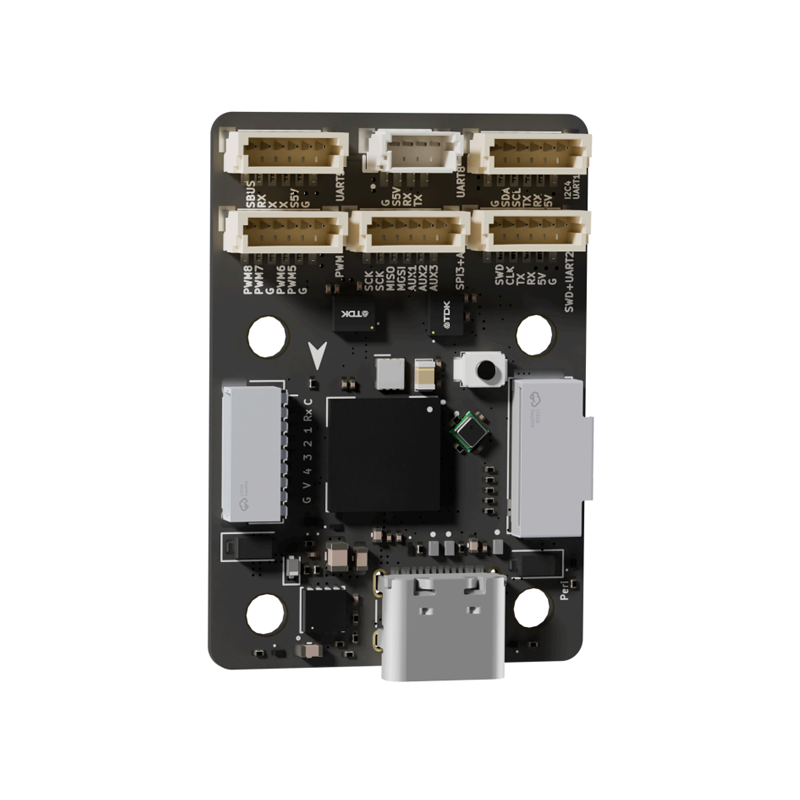

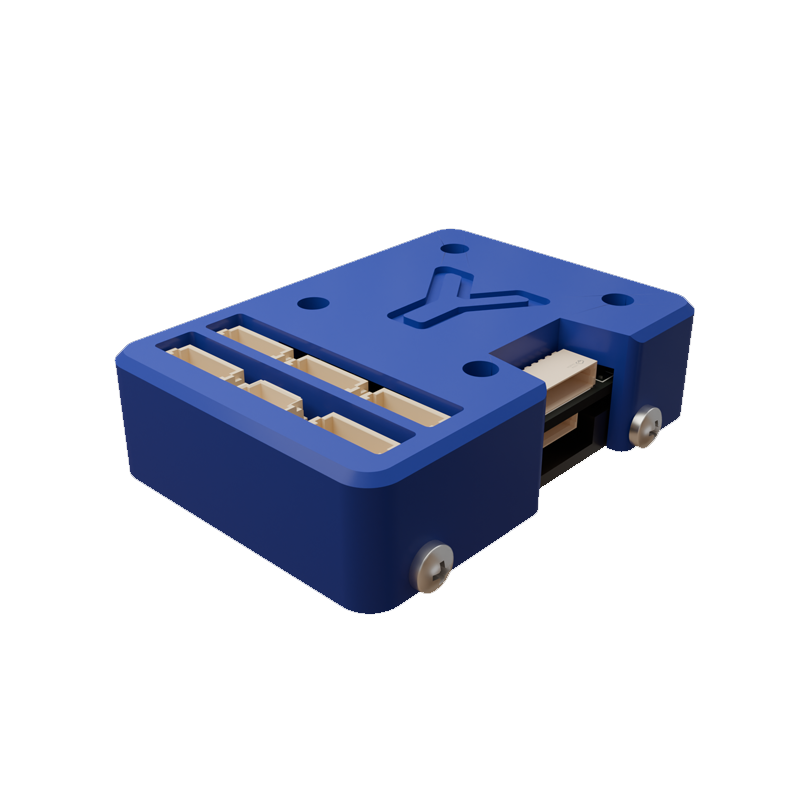

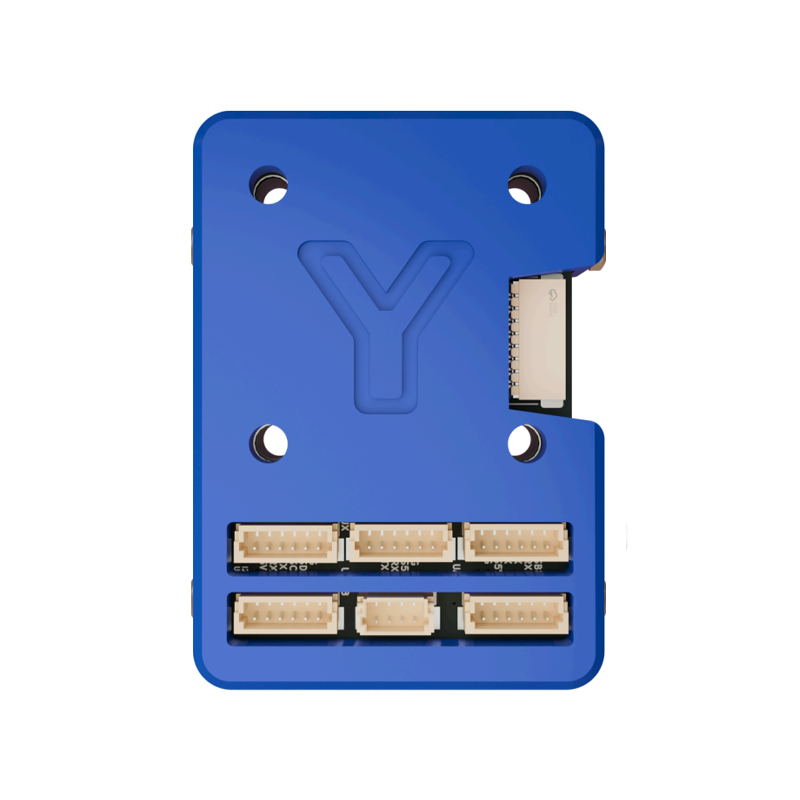

Syncore U1 High Performance Flight Controller
The Syncore U1 is a high-performance flight controller built around the powerful STM32H743VIH6 480MHz MCU, designed for professional UAV and drone applications requiring precision and stability. It features dual IIM-42652 IMUs, an ICP20100 barometer, and supports Ardupilot and PX4 firmware for advanced flight control.
Features
- Powered by STM32H743VIH6 480MHz MCU with 2MB Flash for demanding flight algorithms.
- Dual IIM-42652 IMUs and ICP20100 barometer provide enhanced sensor fusion and altitude accuracy.
- High-voltage input range (24-26V) with regulated 5V/2.5A and 12V/2.5A BEC outputs for peripherals.
- Extensive connectivity with 7 UARTs, SPI, I2C, and support for SBUS/CRSF protocols and DShot.
- Compact 45x32mm form factor designed for integration into professional and industrial UAV builds.
Out of stock
The Syncore U1 Flight Controller is engineered for embedded UAV systems where reliability and computational power are critical. Its core architecture leverages the STM32H743VIH6 processor to handle complex navigation and stabilization tasks, while the dual IMU configuration provides redundancy and improved attitude estimation. The board’s robust power architecture ensures stable operation for all connected components, from FPV video transmitters to high-precision GPS modules.
Designed for 24-26V power systems, the U1 integrates efficient DC-DC converters to deliver clean, regulated power to sensitive electronics. Its comprehensive I/O suite, including multiple UARTs and PWM outputs with DShot support, allows for flexible integration with a wide array of ESCs, telemetry radios, and payloads. This makes it an ideal foundation for advanced aerial platforms running Ardupilot or PX4 autopilot software.
Additional Information
| Weight | 0.045 kg |
|---|---|
| Dimensions | 4.5 × 3.2 cm |
