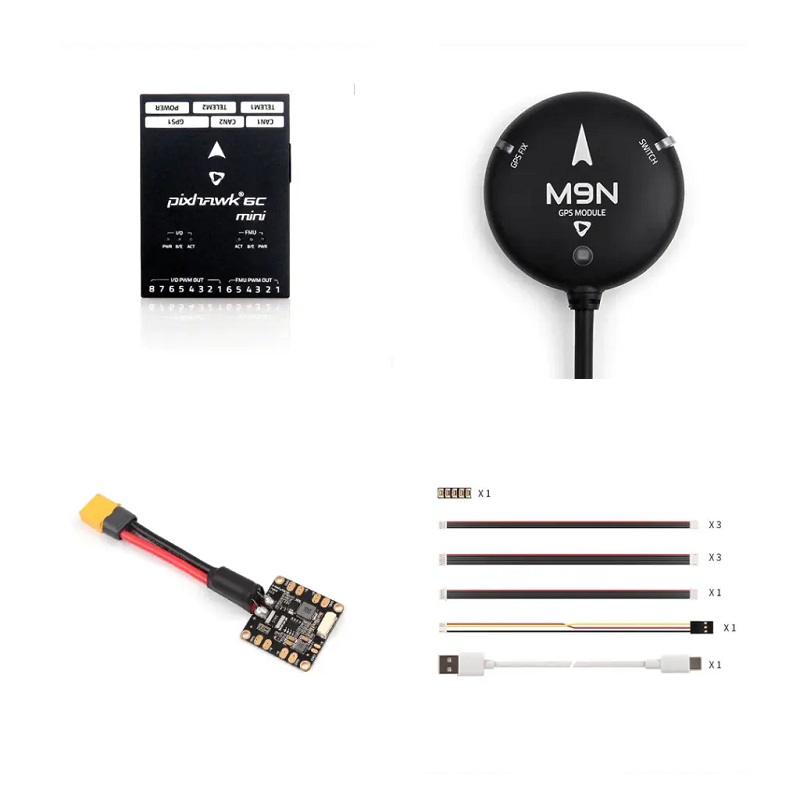

Holybro Pixhawk 6C Mini and PM06-14S and M9N GPS Combo
The Holybro Pixhawk 6C Mini is a compact, high-performance flight controller based on the Pixhawk FMUv6C standard, pre-loaded with PX4 Autopilot for autonomous vehicle control. This combo includes the PM06-14S 12S power module and an M9N GPS for a complete navigation solution.
Features
- STM32H743 FMU processor with Arm Cortex-M7 core running at 480 MHz for complex algorithm execution.
- Dual redundant IMUs (ICM-42688-P & BMI055) with temperature control and integrated vibration isolation.
- Supports PX4 and ArduPilot firmware for versatile autonomous applications.
- Includes PM06-14S power module supporting up to 14S LiPo batteries.

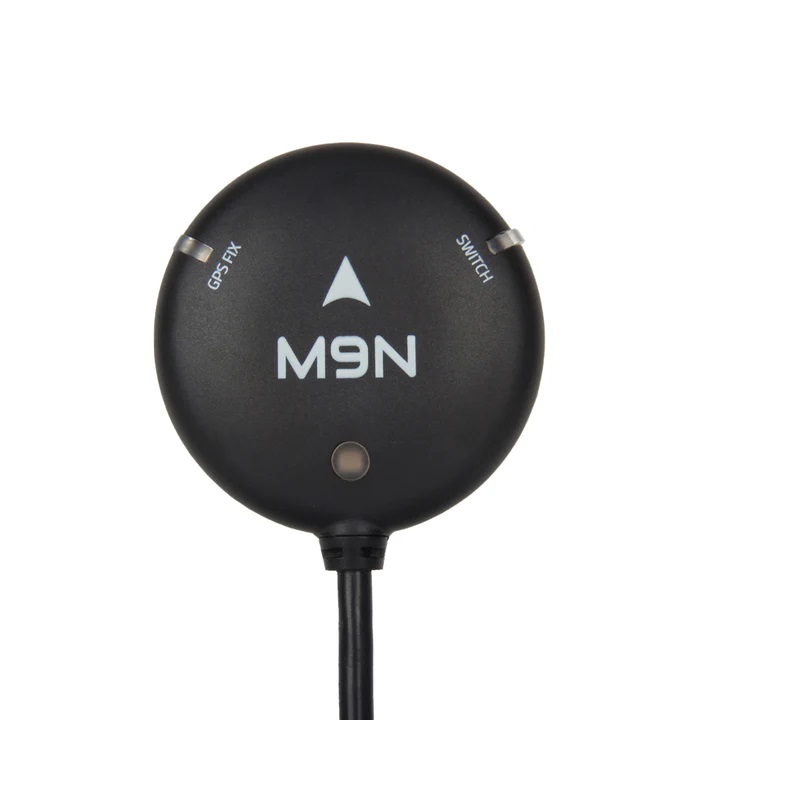

- Comes with M9N multi-GNSS GPS module for precise global positioning.
Out of stock
The Pixhawk 6C Mini builds upon the proven Pixhawk open standard, delivering a robust and compact flight management unit (FMU) designed for demanding autonomous systems. Its STM32H743 processor provides substantial computational headroom with 2MB of flash and 1MB of RAM, facilitating the development and deployment of advanced navigation and control algorithms.
Engineered for reliability, the system incorporates a redundant sensor suite from Bosch and InvenSense. The primary and secondary IMUs are actively temperature-stabilized and mounted on a dedicated vibration-damping system to ensure accurate readings in high-vibration environments typical of multirotor and fixed-wing platforms.
Additional Information
| Weight | 0.235 kg |
|---|---|
| Dimensions | 11 × 14 × 7 cm |
