Holybro Pixhawk 6X Standard Set v2A
The Holybro Pixhawk 6X Standard Set v2A is a high-performance autopilot system featuring a dual-processor architecture (STM32H753 FMU, STM32F103 IO), advanced vibration-isolated sensors, and a wide input voltage range for demanding industrial, commercial, and autonomous UAV applications.
Features
- Dual-processor design with STM32H753 FMU and STM32F103 I/O coprocessor for robust flight control and peripheral management.
- Advanced vibration isolation system using a custom-formulated damping material for precise sensor readings in high-vibration environments.
- Triple-redundant ICM-45686 IMUs and dual barometers (ICP20100 & BMP388) for enhanced sensor reliability and fault tolerance.
- Wide power input range: 6V regulated input via power module, 4.75-5.25V via USB, and servo rail support from 0 to 36V.
- Includes NXP Semiconductors EdgeLock SE050 secure element for encrypted data handling and enhanced system security.
Out of stock
The Holybro Pixhawk 6X Standard Set v2A is engineered as a robust, production-ready autopilot solution for professional UAV platforms. Its architecture is built around completely isolated sensor domains and separate power control circuits, minimizing electrical noise and ensuring data integrity. The custom vibration damping system provides a higher resonance frequency, making it particularly effective for larger drones and industrial applications where vibration levels are significant.

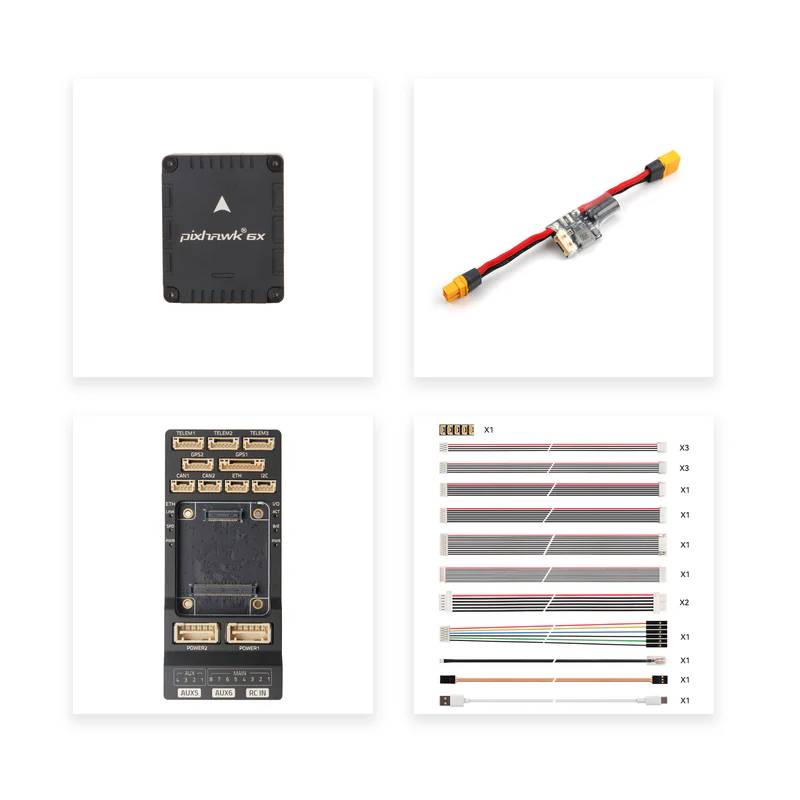

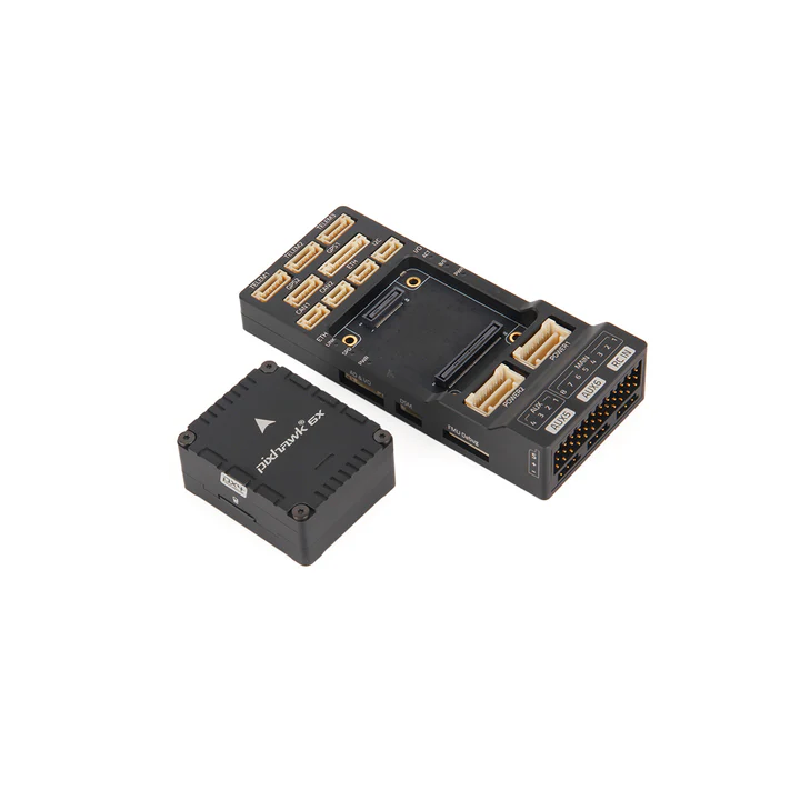

This standard set provides a complete foundation for autonomous flight, integrating a high-performance flight controller module with a mini baseboard, a PM02D power module, and a comprehensive cable set. The system’s design prioritizes durability and precise sensor fusion, backed by the computational power of the STM32H753 processor to handle complex navigation algorithms and real-time control tasks for commercial, agricultural, and inspection drones.
Additional Information
| Weight | 0.263 kg |
|---|---|
| Dimensions | 14 × 12 × 7 cm |
