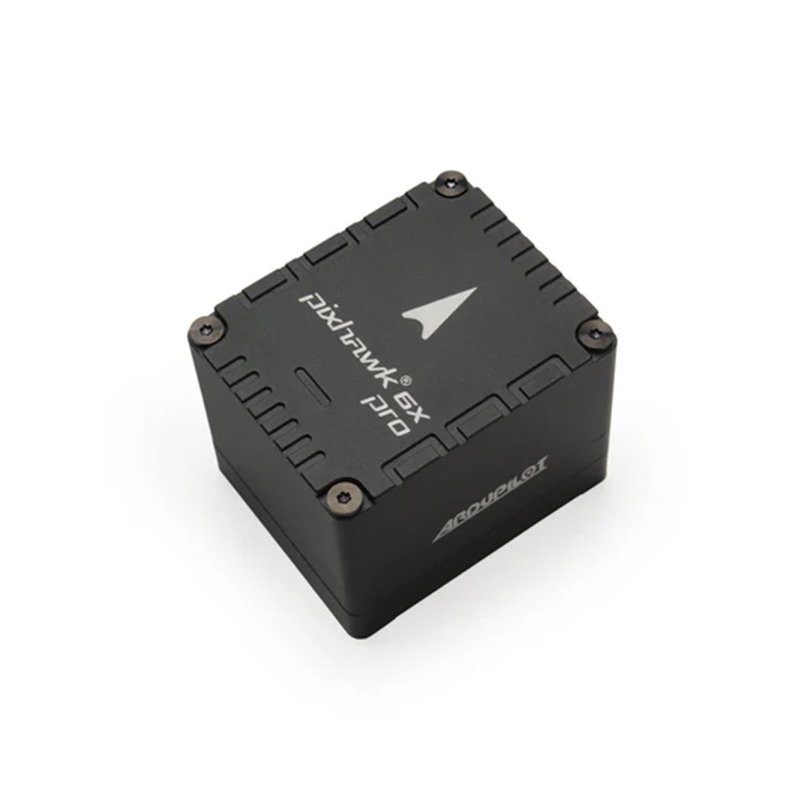

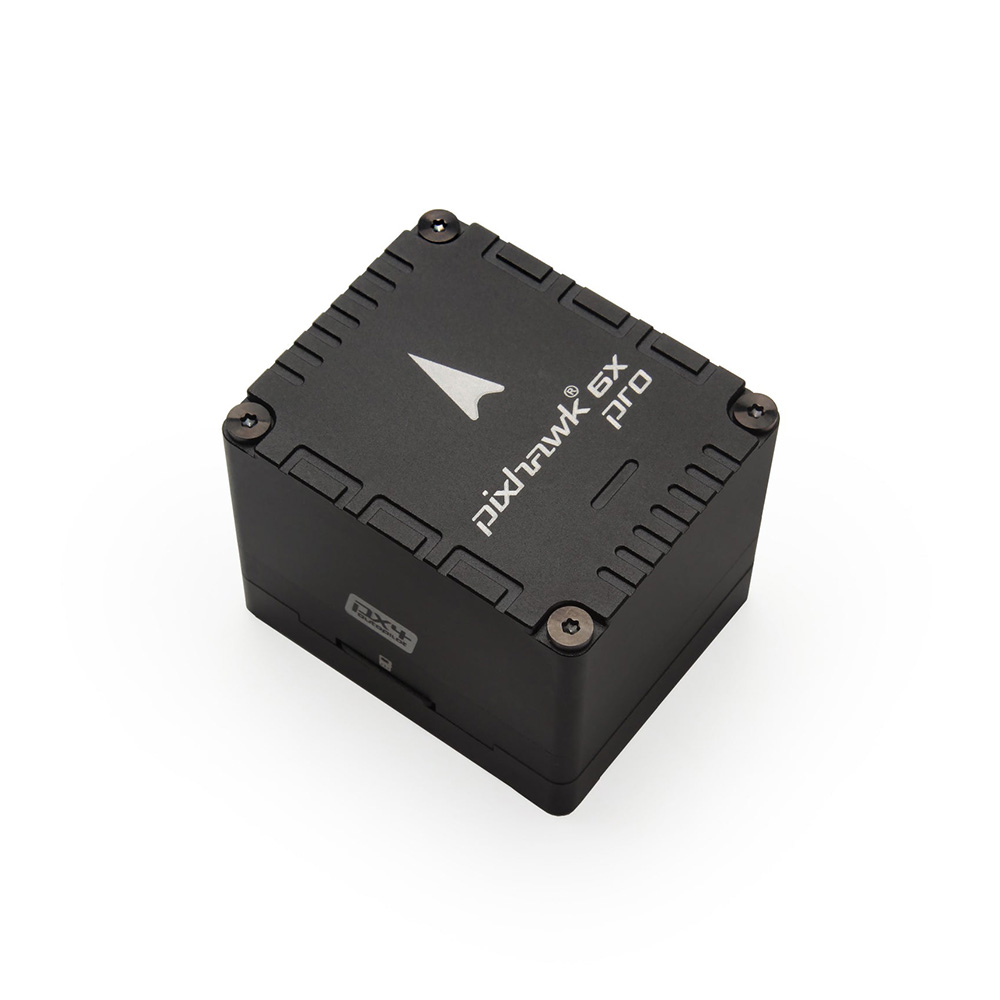

Holybro Pixhawk 6X Pro Flight Controller Module
The Holybro Pixhawk 6X Pro is a high-performance, modular flight controller designed for professional UAV and drone applications, featuring a powerful STM32H753 processor, triple-redundant industrial-grade IMUs, and vibration-isolated sensor mounting for reliable operation under demanding conditions.
Features
- High-Performance FMU: STM32H753 Arm Cortex-M7 processor running at 480 MHz with 2MB flash and 1MB RAM.
- Triple-Redundant IMUs: Includes ADIS16470 (±40g), IIM-42652 (±16g), and ICM-45686 (±32g) sensors for exceptional reliability and fault tolerance.
- Advanced Vibration Isolation: Custom silicone-based damping material protects critical IMUs from vibration and shock.
- Modular System Design: Separates FMU, IMU, and base systems with independent power control for flexibility and robustness.
- Professional Interfaces: Features Ethernet connectivity for high-speed mission computer integration and supports ArduPilot and PX4 firmware.
Out of stock
The Pixhawk 6X Pro represents a significant evolution in flight control hardware, engineered for demanding commercial, industrial, and advanced research UAV platforms. Its core architecture leverages a powerful STM32H753 main processor paired with a dedicated STM32F103 I/O processor, ensuring high-speed data processing and reliable real-time control loop execution. The separation of the Flight Management Unit (FMU), Inertial Measurement Unit (IMU), and baseboard into distinct modules enhances system resilience and simplifies maintenance.
Central to its design is the implementation of triple-redundant inertial sensors, including the high-dynamic-range ADIS16470 industrial IMU. This sensor suite, combined with double-redundant barometers, provides unparalleled state estimation accuracy and fault tolerance in environments with significant vibration or aggressive maneuvering. The dedicated vibration isolation system for the primary IMUs utilizes a custom-formulated silicone material to effectively dampen high-frequency mechanical noise, preserving sensor fidelity.
Integration capabilities are extensive, featuring an onboard Ethernet port for connecting companion computers, multiple serial ports for peripherals, and a comprehensive set of PWM, SBUS, and CAN bus interfaces. This makes the 6X Pro suitable for complex autonomous missions, payload integration, and swarming applications where reliable, high-bandwidth communication is critical.
Additional Information
| Weight | 0.12 kg |
|---|---|
| Dimensions | 15 × 11 × 6 cm |
