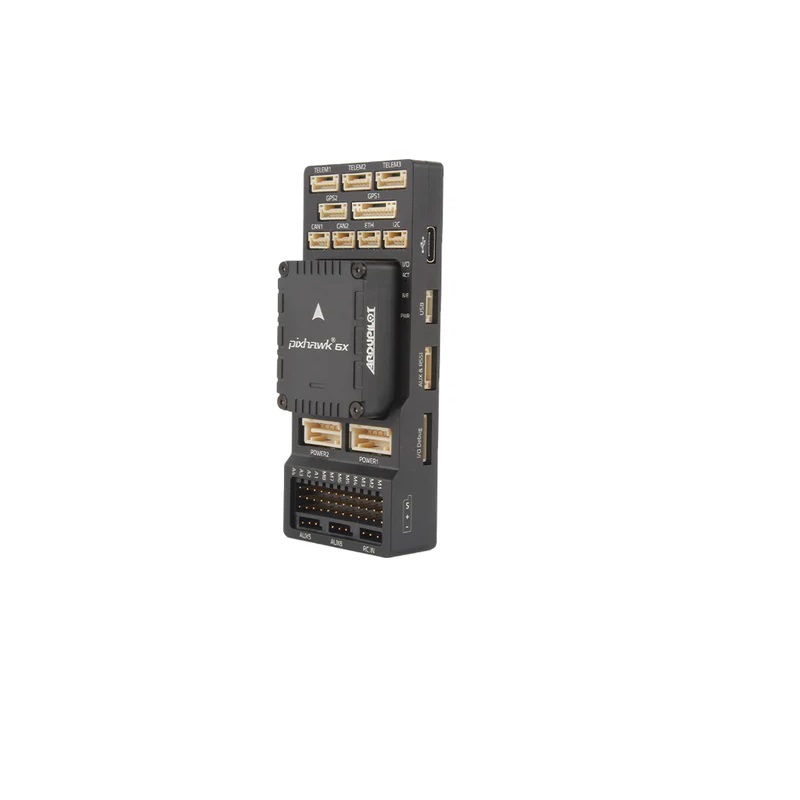

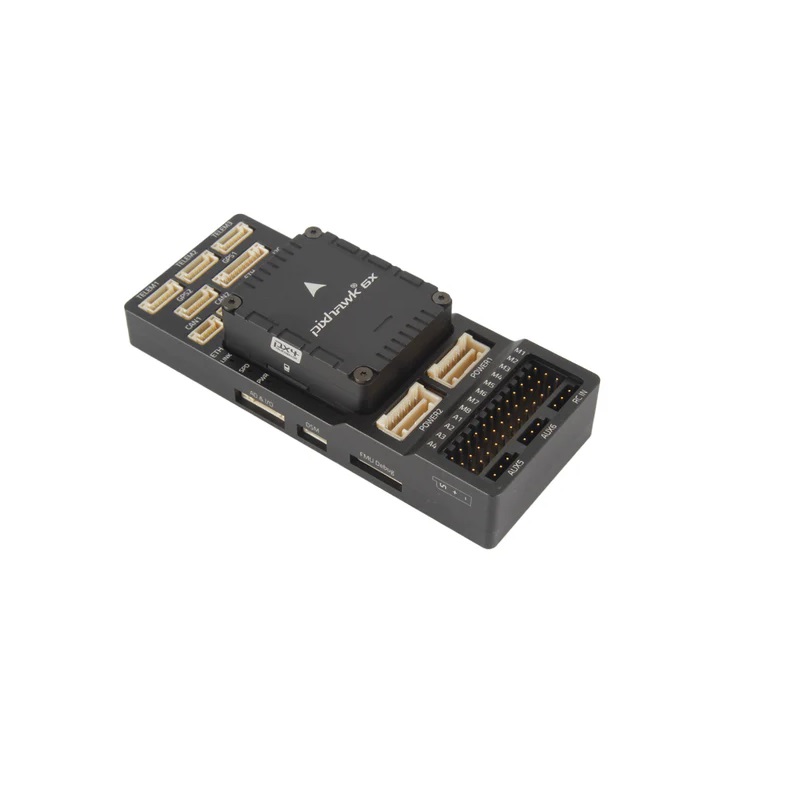

Holybro Pixhawk 6X Standard Set v2B + M10 GPS
The Holybro Pixhawk 6X Standard Set v2B is a high-performance flight controller featuring triple-redundant ICM-45686 IMUs and BalancedGyroâ„¢ technology, powered by an STM32H753 processor for demanding UAV, robotics, and autonomous vehicle applications.
Features
- STM32H753 FMU processor (480 MHz) with STM32F103 IO co-processor for high-speed, multitasking flight control.
- Triple-redundant ICM-45686 IMU sensors with BalancedGyroâ„¢ technology for exceptional stability and vibration resistance.
- Dual barometer sensors (ICP20100 & BMP388) for robust and precise altitude measurement.
- Modular design with separate FMU, IO, and Baseboard v2B, connected via Pixhawk® Autopilot Bus for flexible system integration.

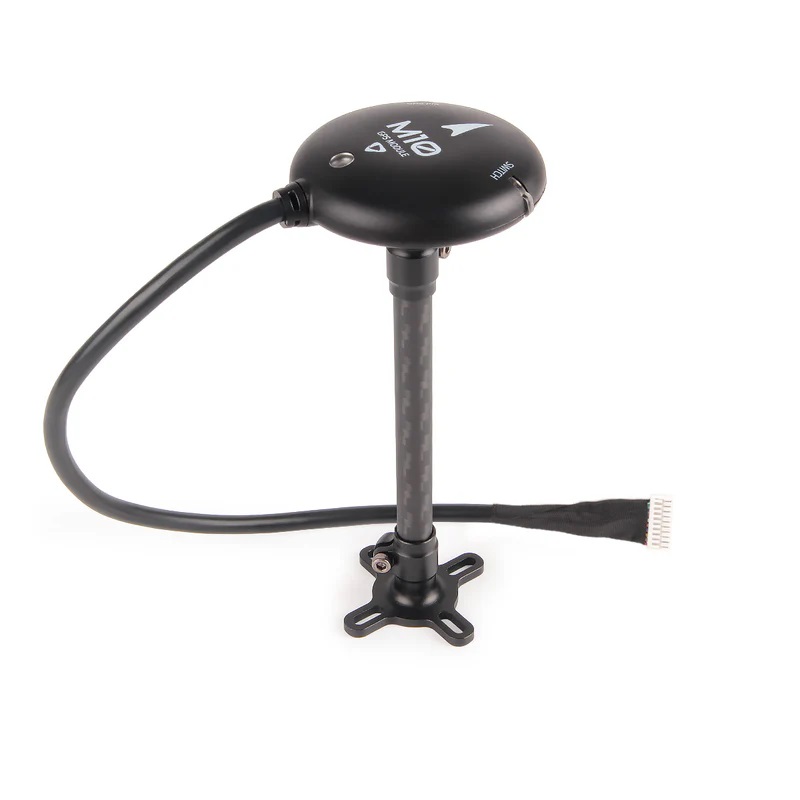

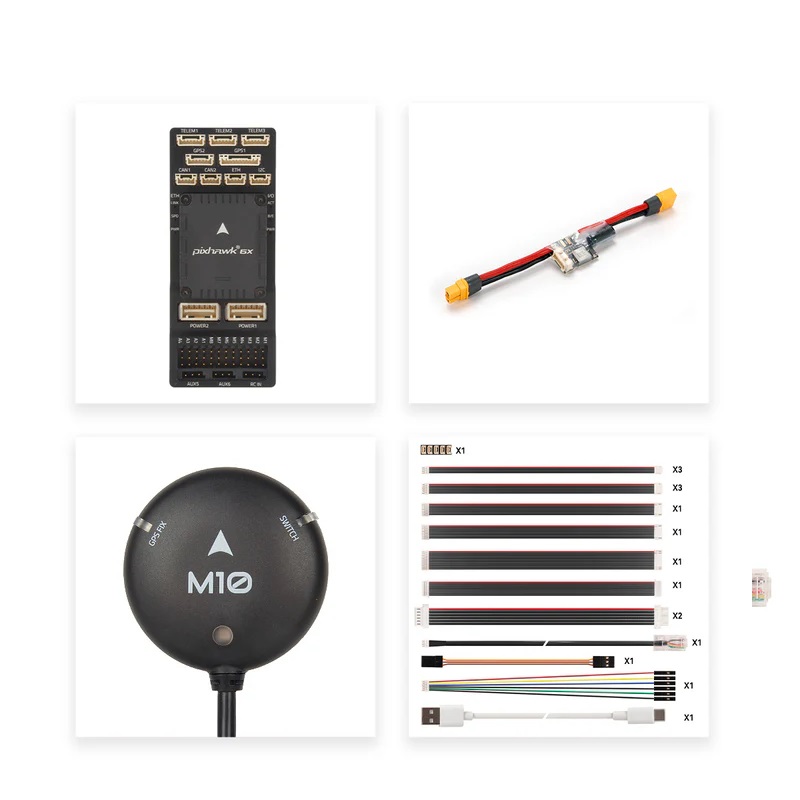

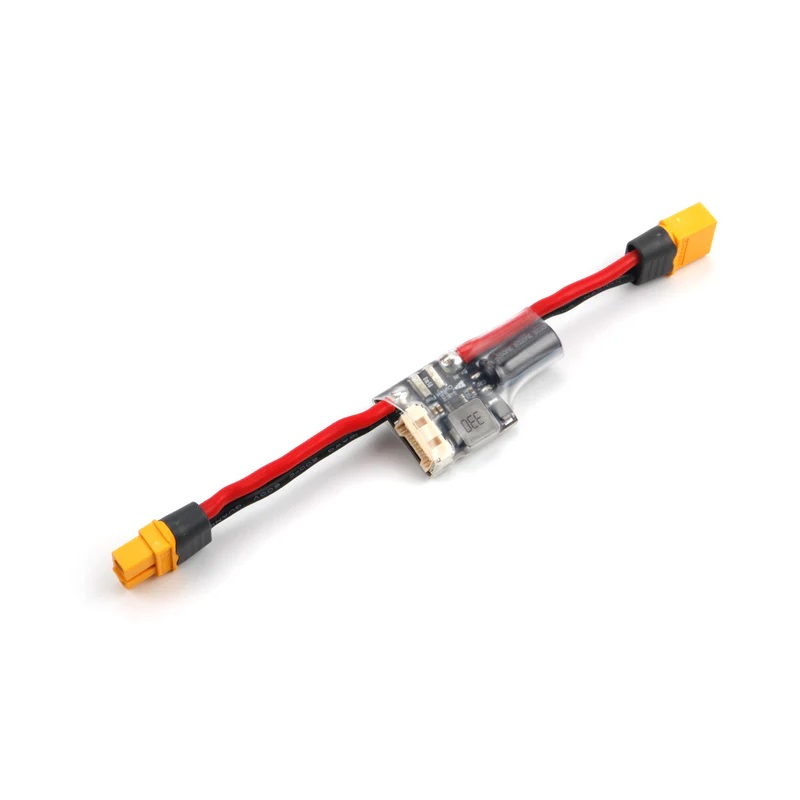

- Includes M10 GPS module and PM02D HV Power Module for a complete, ready-to-deploy autopilot solution.
Out of stock
The Pixhawk 6X Standard Set v2B is engineered for professional-grade reliability and precision. Its core architecture leverages a powerful STM32H753 microcontroller running at 480 MHz, paired with a dedicated STM32F103 IO processor to handle sensor data and peripheral management efficiently. This separation of concerns ensures robust performance for complex autonomous missions.
The system’s resilience is built on sensor redundancy. Three independent ICM-45686 IMUs, employing BalancedGyroâ„¢ technology, provide fault-tolerant attitude estimation, while dual barometers (ICP20100 and BMP388) safeguard altitude data. The modular design, centered on the Pixhawk® Autopilot Bus, allows the FMU and IO boards to be paired with different baseboards (like the included v2B) to suit specific vehicle types and power requirements.
Additional Information
| Weight | 0.325 kg |
|---|---|
| Dimensions | 10 × 14 × 7 cm |
