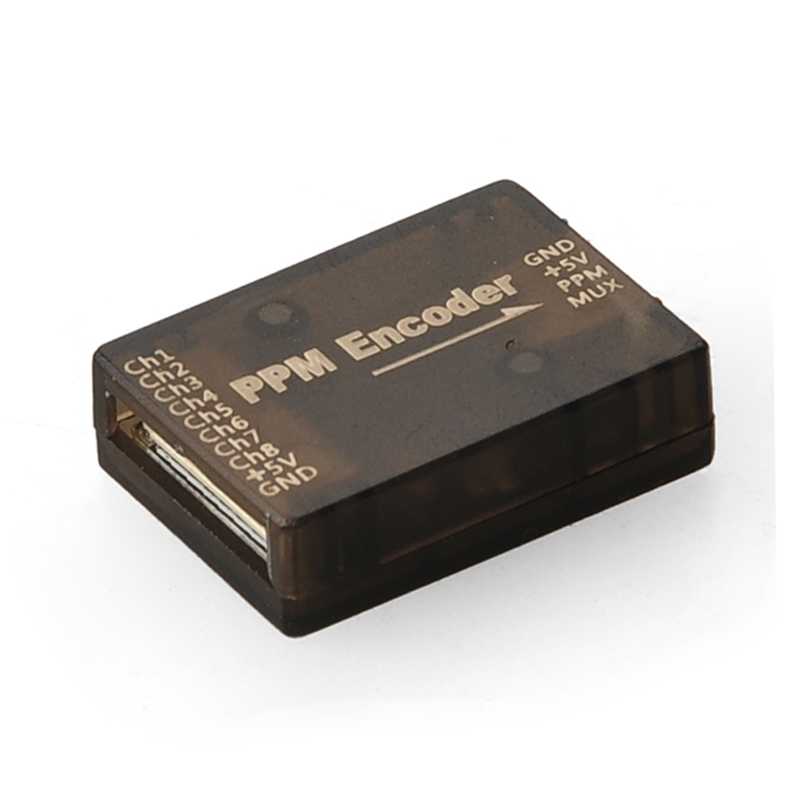

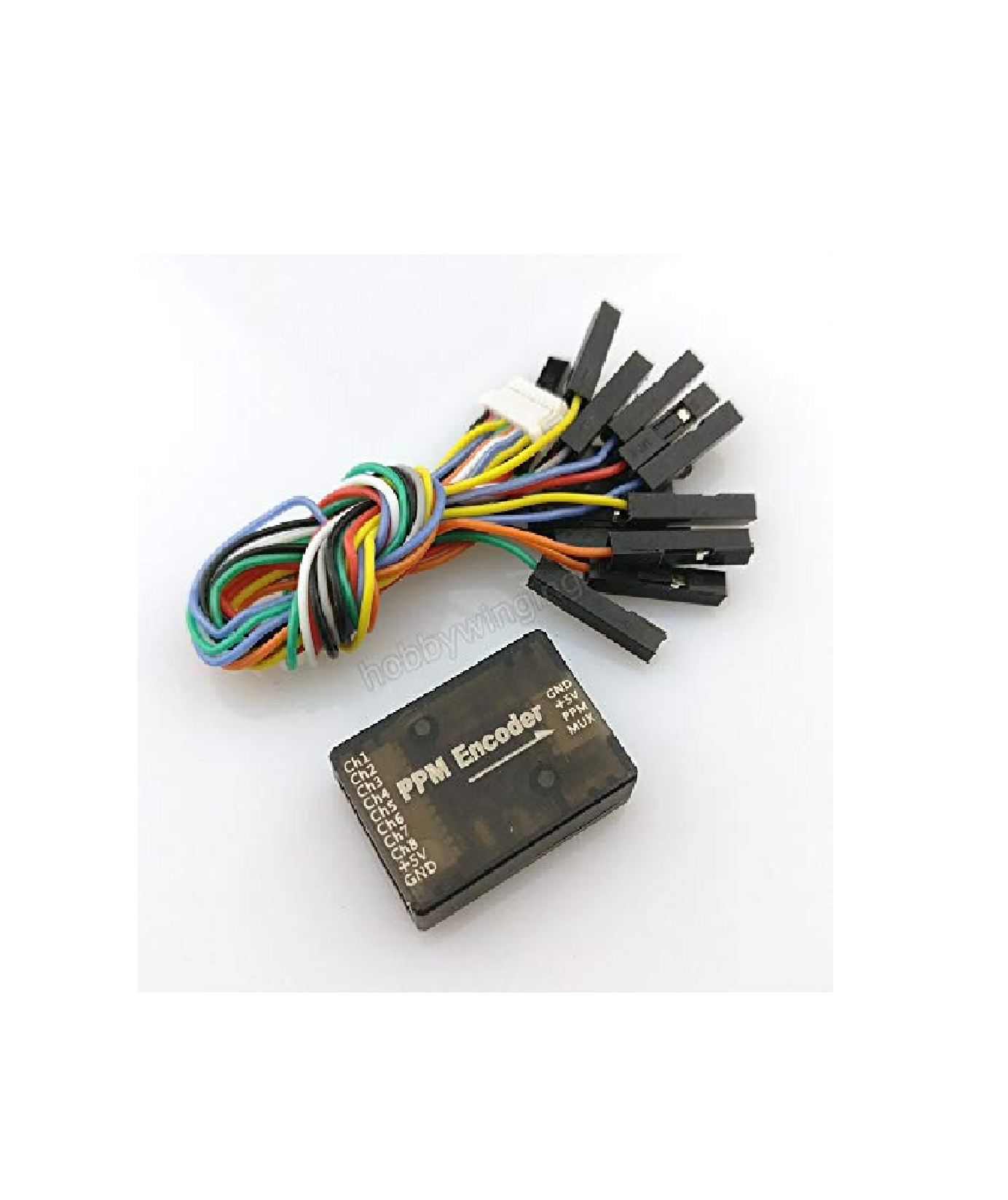

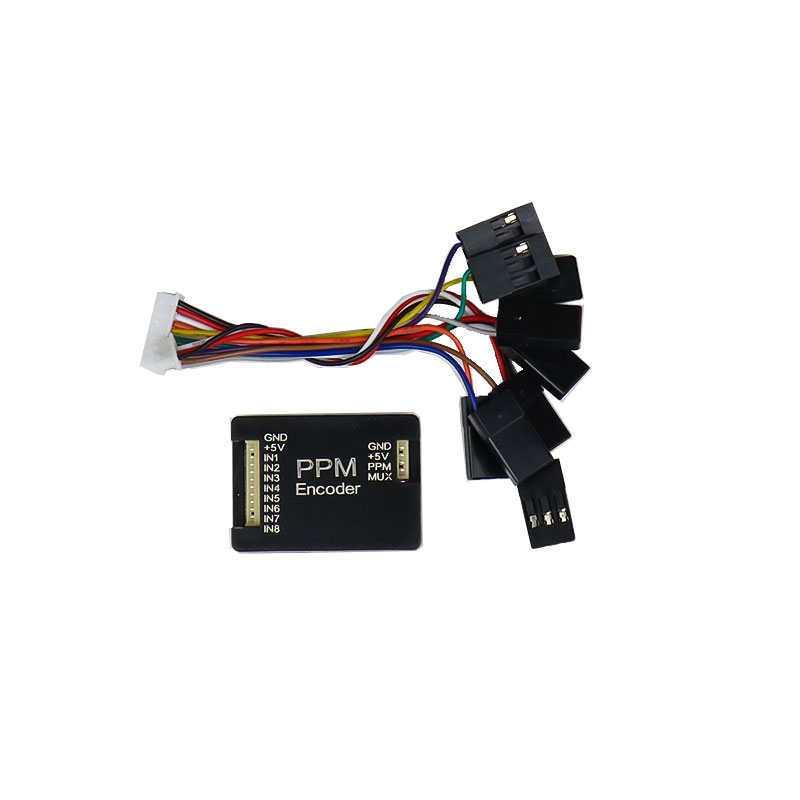

Generic Pixhawk PPM Encoder Module
The Pixhawk PPM Encoder Module converts up to 8 standard PWM receiver signals into a single PPM stream, enabling compatibility with Pixhawk, APM, and other PPM-only flight controllers for simplified wiring and signal consolidation.
Features
- Converts 8 PWM inputs into a single PPM output signal.
- Enables PWM receivers to interface with PPM-only flight controllers like Pixhawk and APM.
- Includes configurable power isolation Jumper (JP1) to prevent regulator damage.
- Compact form factor with integrated input and output wiring harnesses.
- Pre-configured firmware supports standard 8-channel operation.
Out of stock
This PPM encoder module serves as a critical interface bridge in UAV control systems. It is designed to accept standard PWM signals from common RC receivers and multiplex them into a single PPM stream, which is the required input format for many professional-grade autopilots including the Pixhawk series and APM boards. This consolidation reduces wiring complexity from multiple signal lines down to one primary data line, plus power and ground.
The module features a critical safety component in the JP1 Jumper, which manages power source isolation. When the receiver and servos are powered separately from the autopilot, removing this Jumper is mandatory to prevent back-feeding and potential damage to the flight controller’s onboard 5V regulator. The unit arrives pre-flashed with firmware for 8-channel operation, though it remains reprogrammable via an AVR ISP programmer for users needing to invert the PPM signal or adjust fail-safe values.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 2.8 × 2.3 × 0.5 cm |
