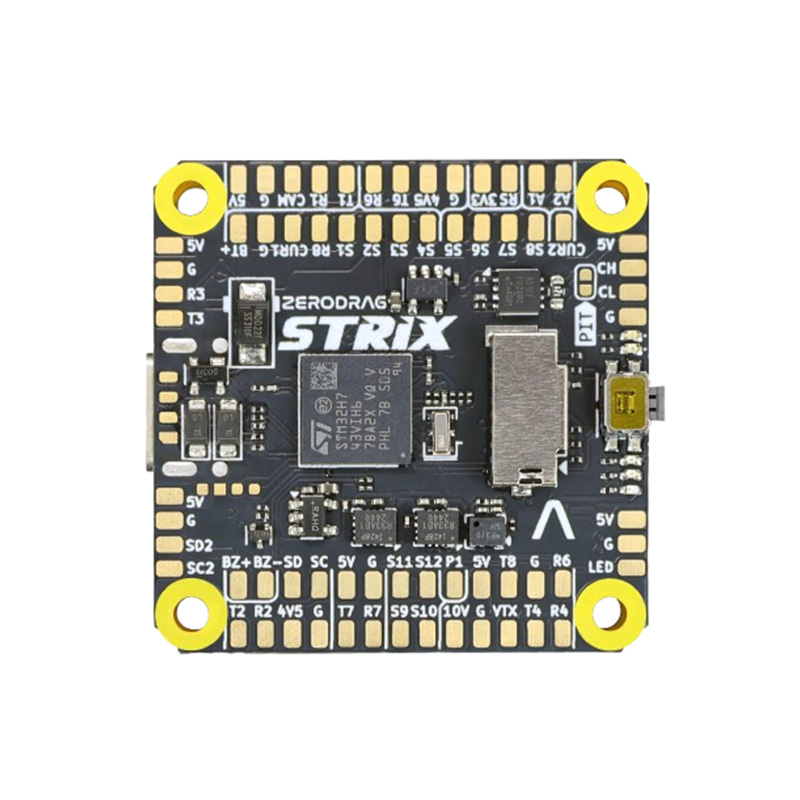

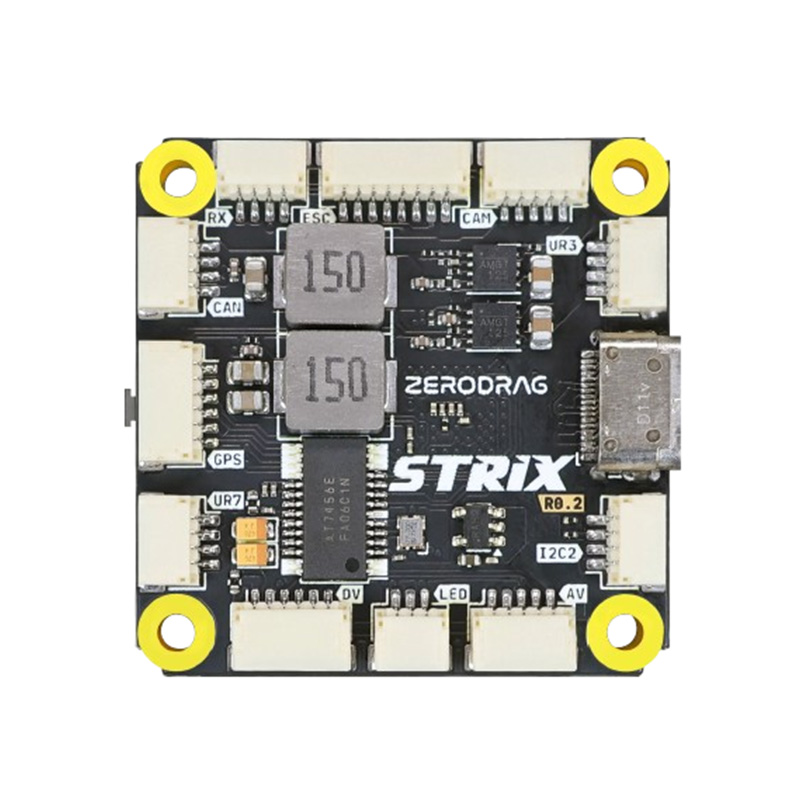

Zerodrag STRIX H7 Flight Controller
The Zerodrag STRIX H7 Flight Controller is a high-performance 30.5×30.5mm flight controller powered by an STM32H743 Cortex-M7 processor, designed for advanced UAV applications. It features dual ICM42688P IMUs, a DPS310 barometer, and supports 2-6S LiPo input with 5V and 10V BEC outputs, compatible with ArduPilot, PX4, Betaflight, and INAV firmware.
Features
- STM32H743 Cortex-M7 MCU running at 480MHz for high-speed flight control processing.
- Dual redundant ICM42688P IMUs and Infineon Technologies DPS310 barometer for precision stability.
- Wide 2-6S LiPo input voltage range with integrated 5V 3A and 10V 3A BEC outputs.
- Industry-standard 30.5×30.5mm mounting pattern with M4 holes for easy integration.
- Extensive connectivity with 7 UARTs, 12 PWM outputs, and a microSD slot for blackbox logging.
Out of stock
The Zerodrag STRIX H7 Flight Controller is engineered for demanding UAV platforms requiring robust computational power and sensor redundancy. Its STM32H743 processor provides the headroom for complex autonomous navigation algorithms and real-time sensor fusion, making it suitable for research, industrial, and high-performance FPV applications.
Built with a focus on reliability, the board incorporates dual ICM42688P gyroscopes and accelerometers for fail-safe operation and vibration damping. The integrated AT7456E OSD chip delivers clear, real-time telemetry overlay on FPV video feeds. With its comprehensive I/O suite, including multiple UARTs and PWM channels, the STRIX H7 supports extensive peripheral integration from GPS modules to telemetry radios and gimbal systems.
Additional Information
| Weight | 0.0088 kg |
|---|---|
| Dimensions | 3.85 × 3.7 cm |
