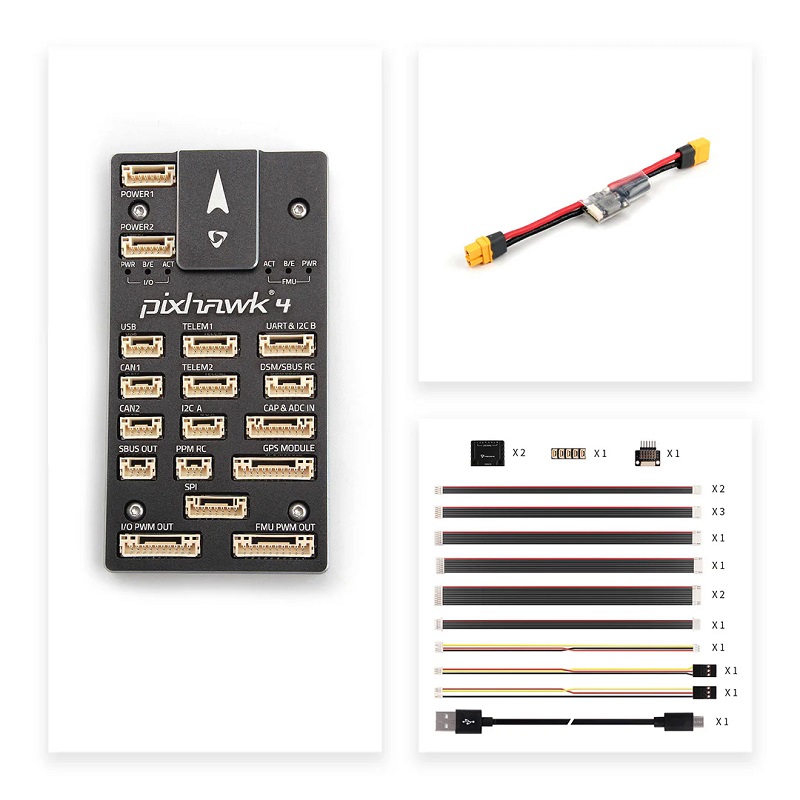

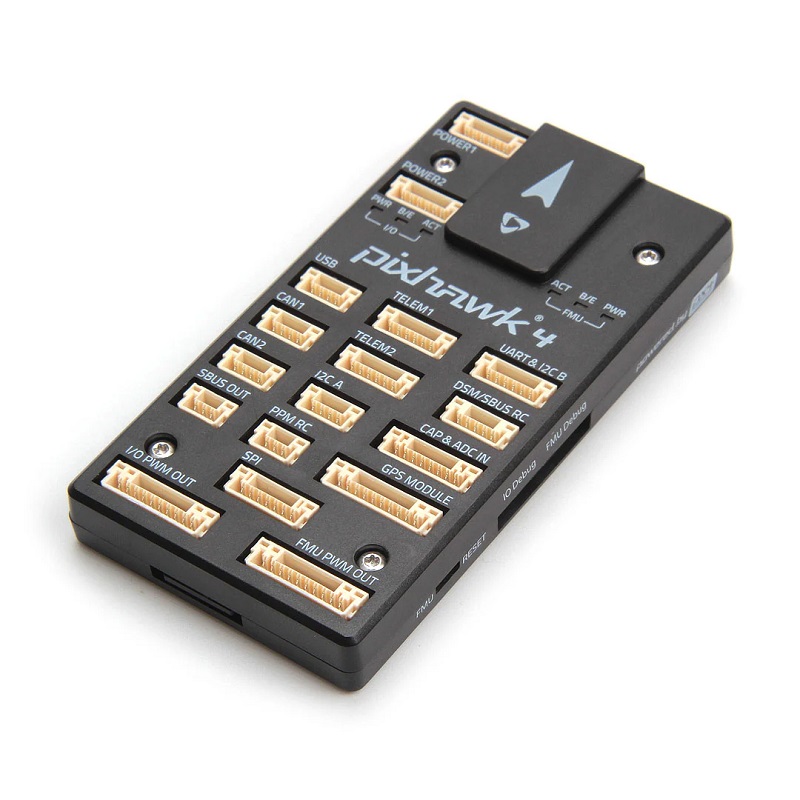

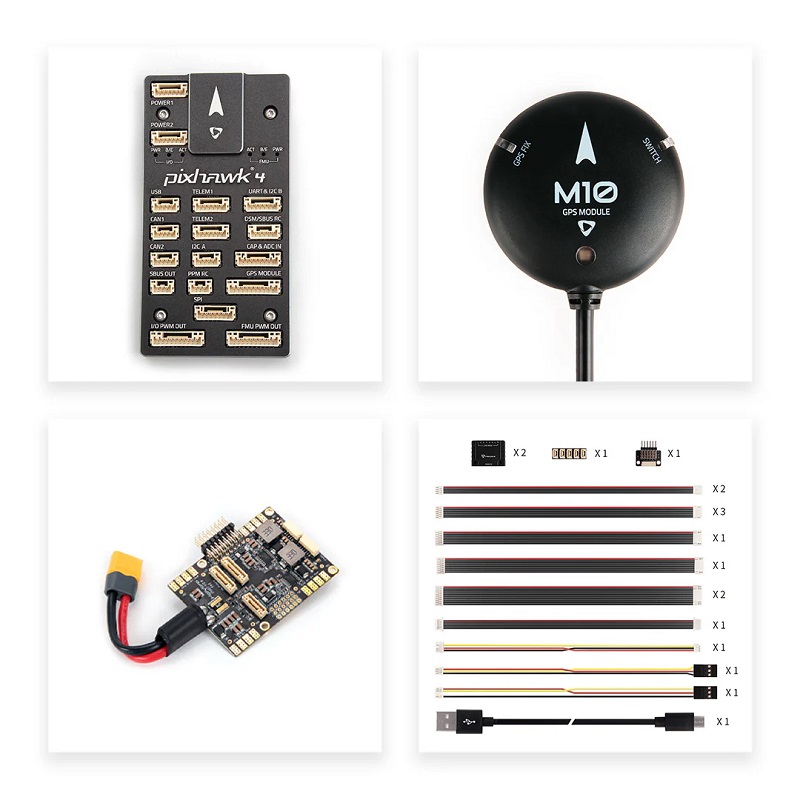

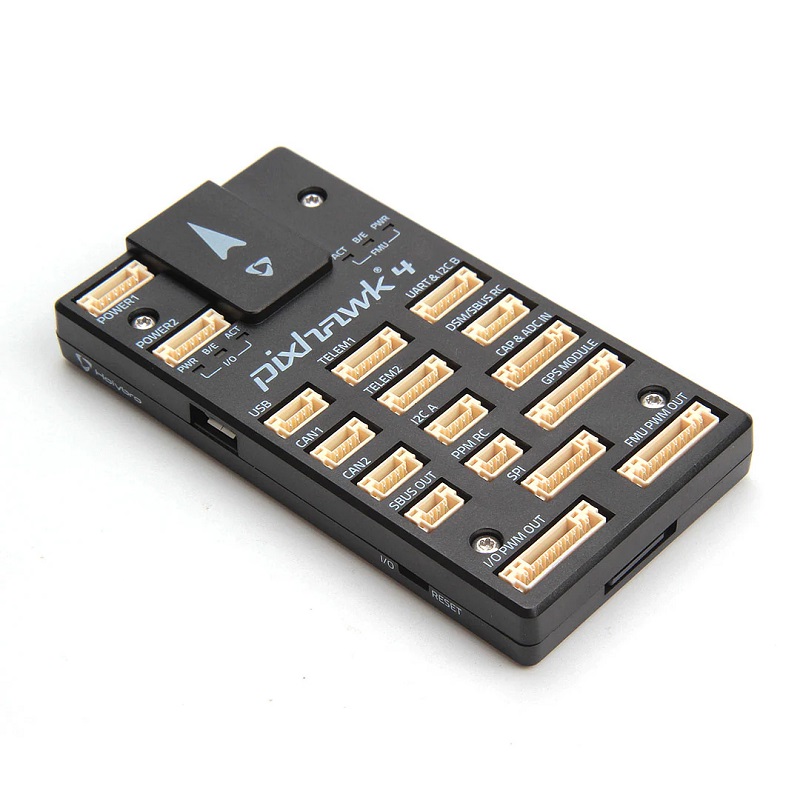

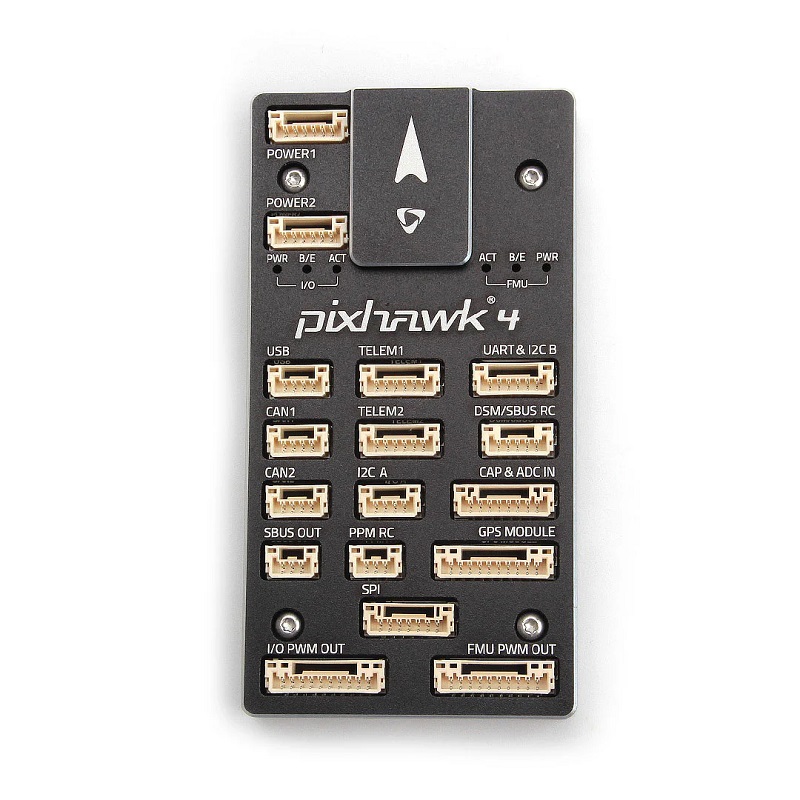

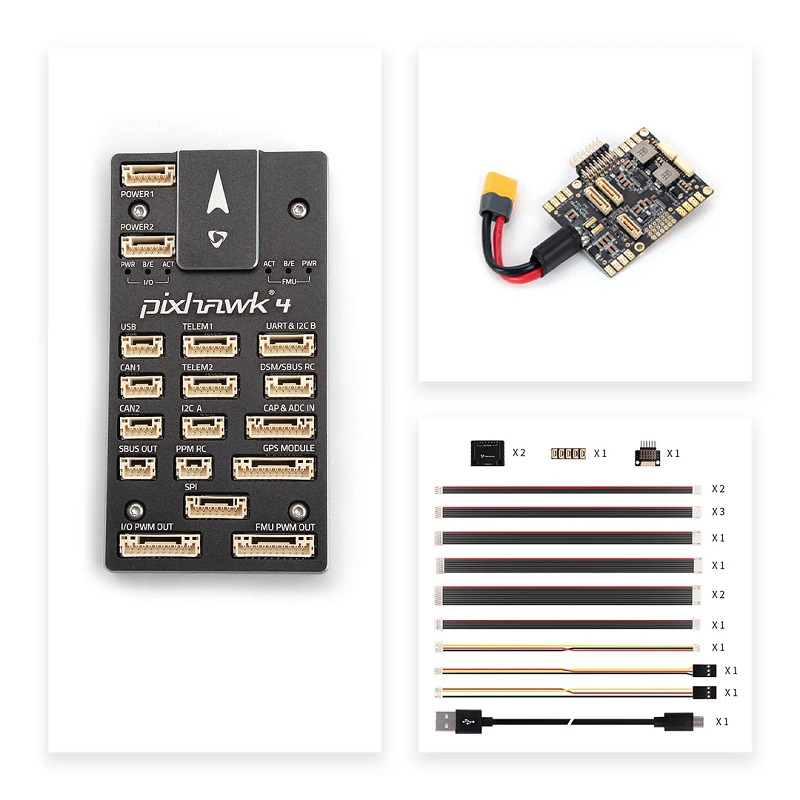

Holybro Pixhawk 4 Flight Controller & PM07 14S & M10 GPS Set
The Holybro Pixhawk 4 is a professional-grade flight controller featuring a dual-processor design (STM32F765 & STM32F103), advanced Bosch and InvenSense sensors, and the NuttX real-time OS. This set includes the PM07 14S power module and M10 GPS for high-precision autonomous drone and robotic vehicle applications.
Features
- Dual-processor architecture: STM32F765 main MCU with 2MB Flash/512KB RAM and STM32F103 IO co-processor.
- High-performance, low-noise IMUs (ICM-20689, BMI055/ICM-20602) with dedicated vibration isolation for precise stabilization.
- Comprehensive connectivity with 2 external SPI buses, 4 I2C buses, and multiple serial ports for sensor and payload expansion.
- Wide input voltage support: 6V regulated input, 0-36V servo rail, and 4.75-5.25V USB power.
- Includes PM07 14S Power Module and M10 GPS module for a complete high-precision navigation and power management solution.
Out of stock
The Pixhawk 4 flight controller is engineered for demanding autonomous vehicle applications, from aerial drones to ground robotics and marine systems. Its robust processing core enables the execution of complex navigation algorithms and sensor fusion models, providing a stable and reliable platform for development and deployment.
Sensor data integrity is prioritized through hardware-level design, with data-ready signals routed to dedicated interrupt pins for precise time-stamping. This, combined with the newly implemented vibration isolation system, ensures IMU readings remain accurate even in high-vibration environments, leading to superior flight performance and control stability.
Additional Information
| Weight | 0.276 kg |
|---|---|
| Dimensions | 9 × 14 × 7 cm |
