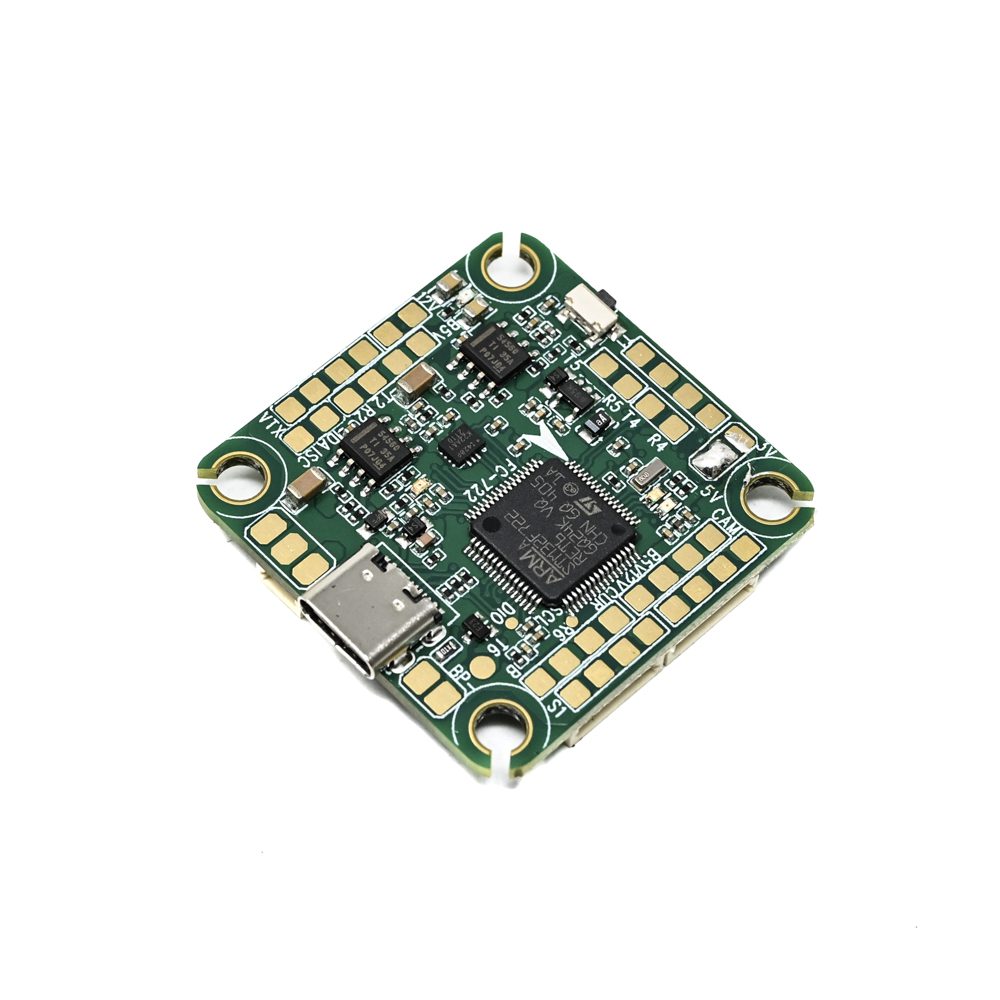

DYS F722 Flight Controller (ICM42688P)
The DYS F722 Flight Controller is built around the high-performance STM32F722 MCU and features an integrated ICM42688P gyro for precise flight stabilization. It offers extensive connectivity with 6 UARTs and 8 motor outputs, supporting Betaflight firmware and 6S LiPo input for advanced FPV and multirotor builds.
Features
- High-performance STM32F722 microcontroller for robust flight processing.
- Integrated ICM42688P gyroscope and BMP280 barometer for precise stabilization and altitude hold.
- AT7456E OSD chip for real-time on-screen telemetry and data display.
- Extensive I/O with 6 UART ports and 8 ESC motor outputs for complex builds.
- 16MB onboard black box for detailed flight data logging and analysis.
Out of stock
The DYS F722 Flight Controller is engineered for demanding drone applications, leveraging the computational power of the STM32F722 microcontroller. Its integration of the ICM42688P gyroscope ensures high-fidelity angular rate data, critical for stable flight in aggressive FPV racing and freestyle maneuvers. The board’s comprehensive sensor suite and multiple BEC outputs provide a solid foundation for complex aerial platforms.
Designed with connectivity in mind, it features six UART serial ports for peripherals like GPS, telemetry radios, and VTX control, alongside eight dedicated motor signal outputs. The 16MB black box storage allows pilots to record extensive flight logs for tuning and post-flight analysis. Its 38x38mm form factor with 30.5mm mounting holes ensures broad compatibility with standard FPV frames.
Additional Information
| Weight | 0.036 kg |
|---|---|
| Dimensions | 7 × 7 × 5 cm |
