Matek F405-WTE Flight Controller STM32F405
The Matek F405-WTE Flight Controller, powered by an STM32F405RGT6 MCU, is engineered specifically for fixed-wing aircraft, integrating a high-performance IMU, barometer, OSD, and a microSD slot for blackbox logging.
Features

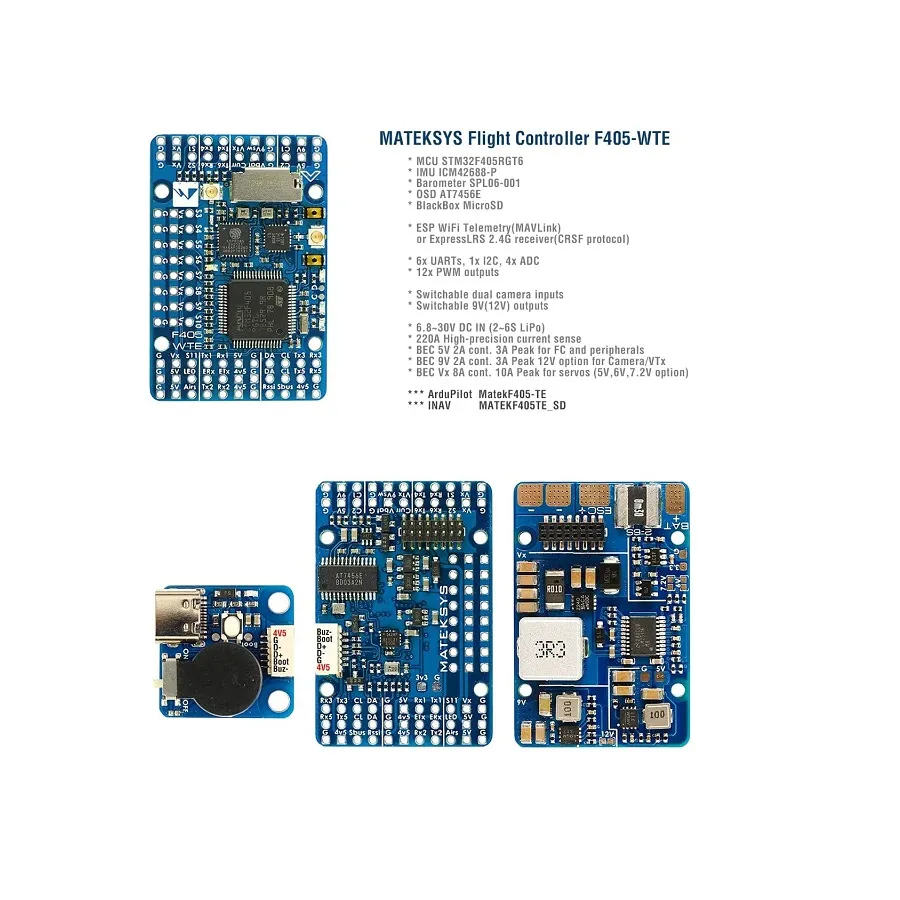

- Features STM32F405RGT6 MCU with 168MHz clock and 1MB Flash memory.
- Integrated ICM42688-P IMU and SPL06-001 Barometer for precise flight data.
- On-board AT7456E OSD and MicroSD card slot for blackbox logging.
- Supports ESP WIFI telemetry and ELRS 2.4G receiver connectivity.

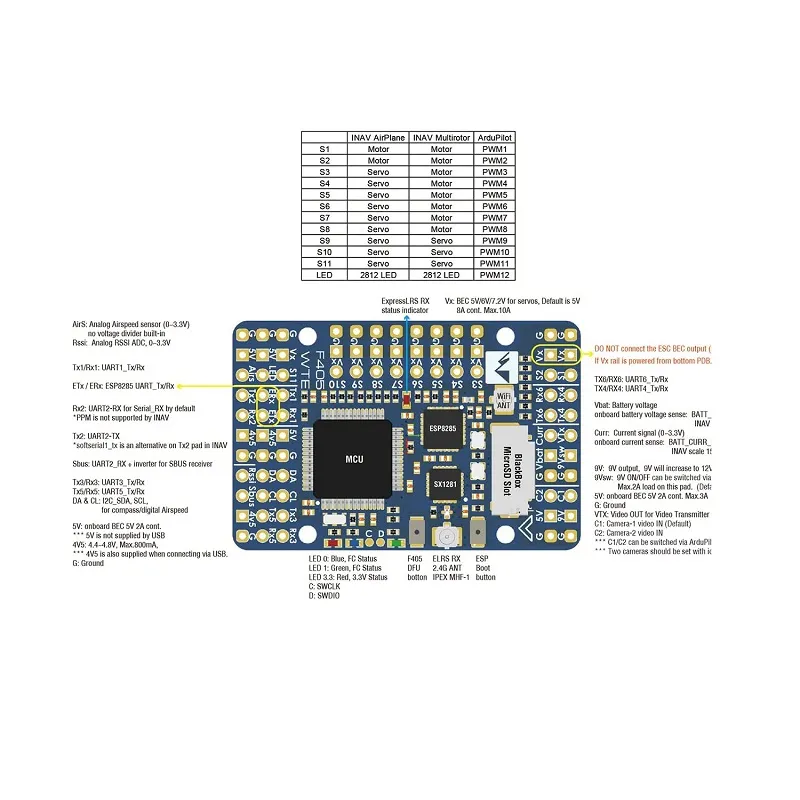

- Offers 6x UARTs, 12x PWM outputs, and 1x I2C for extensive peripheral support.
Out of stock

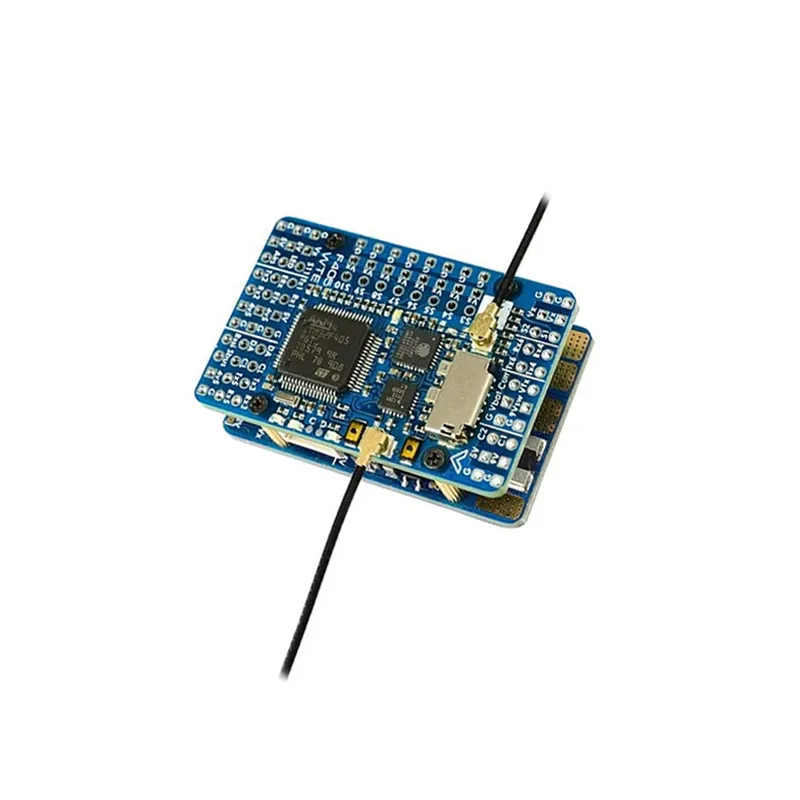

The Matek F405-WTE Flight Controller is a robust solution designed for advanced fixed-wing aircraft and UAV applications. At its core lies the powerful STM32F405RGT6 microcontroller, operating at 168MHz with 1MB of Flash memory, providing ample processing power for complex flight algorithms and real-time operations. This board integrates essential sensors including an ICM42688-P IMU for accurate attitude and motion sensing, alongside an SPL06-001 barometer for precise altitude hold capabilities.
Featuring an AT7456E OSD, the F405-WTE allows for real-time display of critical flight information directly onto your video feed. A dedicated microSD card slot supports blackbox logging, enabling detailed post-flight analysis and tuning. Connectivity is comprehensive with 6x UARTs, 12x PWM outputs for motor and servo control, and 1x I2C bus for additional sensors. The controller also supports ESP WIFI telemetry and seamless integration with ELRS 2.4G receivers, ensuring reliable long-range communication. A built-in 220A current sensor (3.3V ADC) facilitates accurate power consumption monitoring, making it a complete package for high-performance fixed-wing builds.
Additional Information
| Weight | 0.038 kg |
|---|---|
| Dimensions | 12 × 9 × 3 cm |
