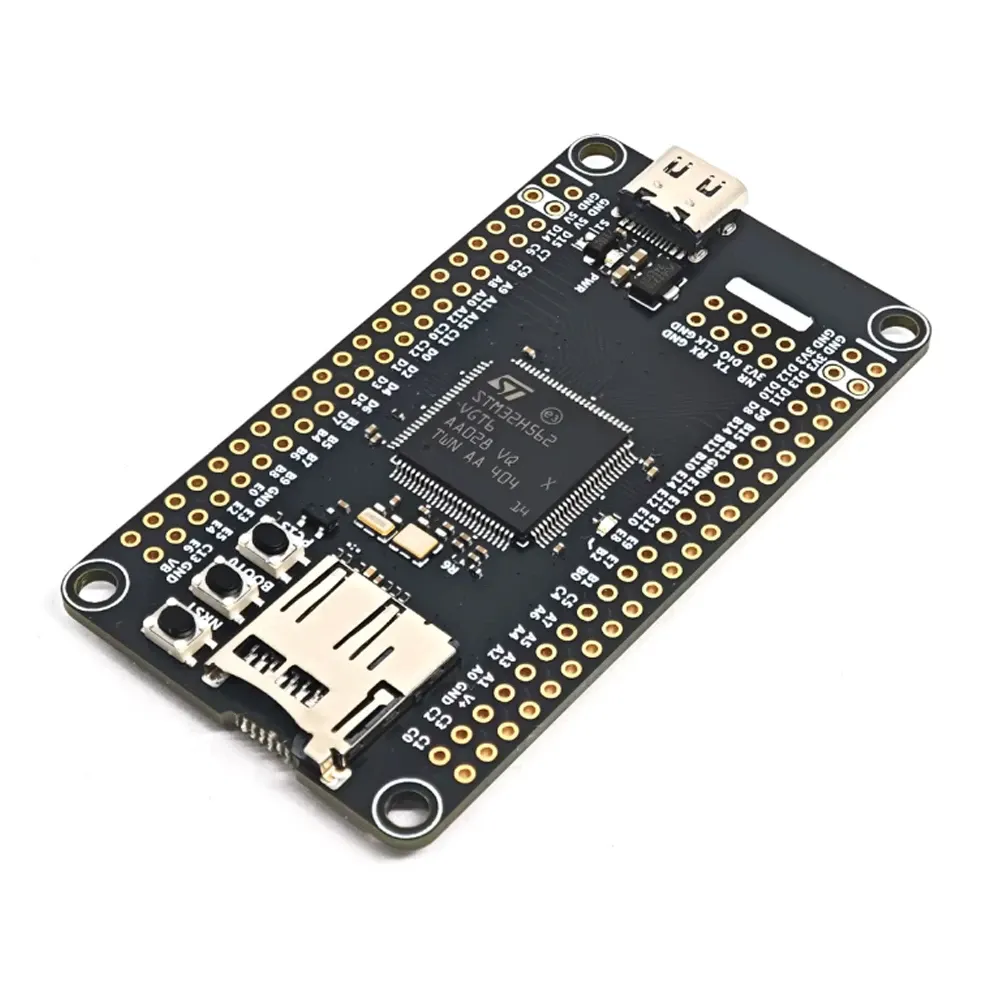

WeAct Studio STM32H562VGT6 Core Board

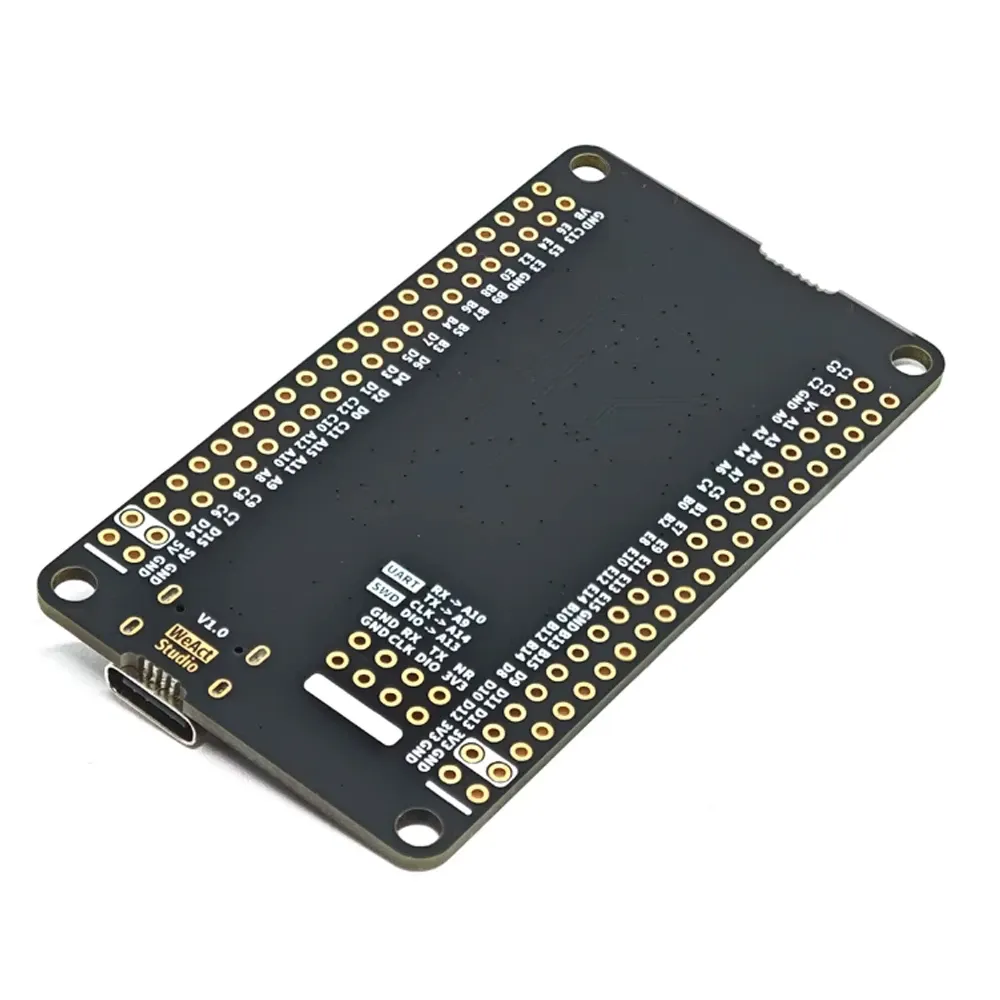

WeAct Studio STM32H562VGT6 Core Board - Image 2

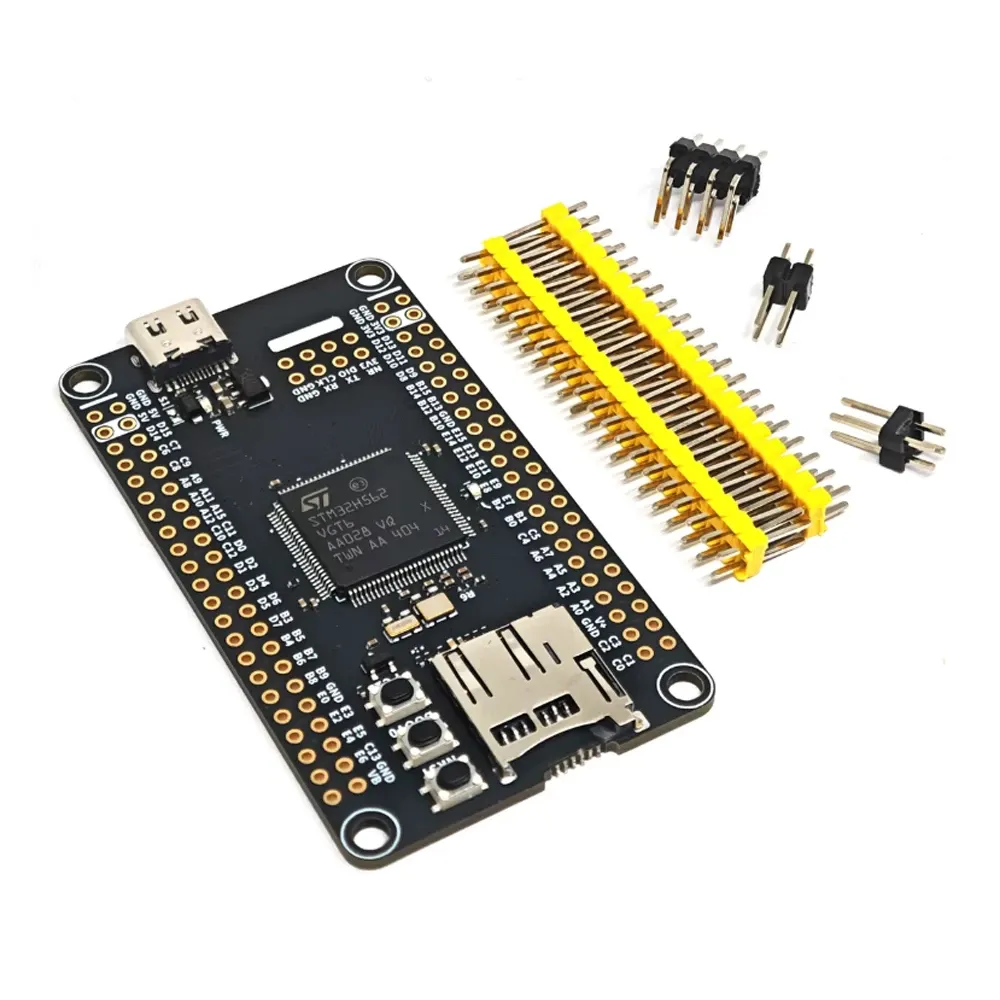

WeAct Studio STM32H562VGT6 Core Board - Image 3
SKU: SBCD-0376
📋 GST Invoice Available

WeAct Studio STM32H562VGT6 Core Board

₹939.00 (Inclusive of all taxes)
Out of Stock

The WeAct Studio STM32H562VGT6 Core Board features a high-performance ARM Cortex-M33 microcontroller clocked at up to 250 MHz, with 640KB RAM and 1MB Flash. It provides essential communication interfaces like USART, SPI, I2C, USB FS, and FDCAN, making it suitable for secure, real-time embedded applications.

Features

  • Features STMicroelectronics STM32H562VGT6 MCU with 250MHz ARM Cortex-M33 core.
  • Offers 640KB RAM and 1MB Flash memory for complex embedded firmware.
  • Integrated USB Full-Speed, FDCAN, USART, SPI, and I2C interfaces for versatile connectivity.
  • Compact core board design with full GPIO breakout for rapid prototyping.

Out of stock

Description

The WeAct Studio STM32H562VGT6 Development Board is a high-performance platform centered around the advanced STM32H5 series microcontroller. Leveraging a 250MHz Cortex-M33 core, this board is engineered for embedded developers focusing on secure, real-time, and high-speed applications. With substantial 640KB RAM and 1MB Flash memory, it provides ample resources for demanding firmware.

This Cortex-M33 Development Board incorporates multiple communication interfaces, including USART, SPI, I2C, USB Full-Speed, and FDCAN, enhancing its versatility across industrial, IoT, and automation projects. Its compact form factor, comprehensive GPIO breakout, dedicated reset/boot controls, and flexible 3.3V/5V power input options streamline the prototyping process for both hobbyists and professional engineers.

Key Features

  • Equipped with high-speed 250MHz ARM Cortex-M33 core for robust processing.
  • Generous memory configuration: 640KB RAM and 1MB Flash for application storage.
  • Supports a wide array of communication protocols: USART, SPI, I2C, ADC, USB FS, and FDCAN.
  • Dedicated BOOT and NRST buttons facilitate easy control and firmware flashing.
  • Compact core board design with full GPIO breakout for maximum flexibility.
  • Accepts both 3.3V and 5V power input, compatible with various power sources.
  • Optimized for embedded systems, IoT devices, and industrial automation applications requiring secure performance.

Applications

  • Embedded system development requiring high-performance processing.
  • IoT gateway and device applications needing secure communication.
  • Industrial automation and control systems with FDCAN requirements.
  • Real-time data acquisition and processing.
  • Prototyping for secure boot and trusted execution environments.

Technical Specifications

ArchitectureARM Cortex-M33
MicrocontrollerSTM32H562VGT6
Clock SpeedUp to 250 MHz
RAM640 KB
Flash Memory1 MB
Operating Voltage3.3V / 5V input support
USB InterfaceFull-Speed USB
Communication ProtocolsUART, SPI, I2C, CAN (FDCAN)
GPIOFully accessible breakout pins
Control ButtonsBOOT & NRST

Frequently Asked Questions

What development environments are supported by the STM32H562VGT6 Core Board?

The STM32H562VGT6 Core Board is primarily supported by STMicroelectronics' STM32CubeIDE, which offers a comprehensive development environment for ARM Cortex-M microcontrollers. It also supports various ARM-compatible toolchains like Keil MDK-ARM and IAR Embedded Workbench for professional development. Zephyr RTOS support is also available for this series.

What are the power requirements for this core board?

The WeAct Studio STM32H562VGT6 Core Board can be powered via its USB-C port or directly through its power pins. It supports both 3.3V and 5V input, typically regulated onboard to the MCU's operating voltage. Ensure stable power delivery to prevent unexpected behavior during operation and development.

Does the board include onboard debugging capabilities?

The WeAct Studio STM32H562VGT6 Core Board does not typically integrate an onboard debugger. It exposes standard SWD (Serial Wire Debug) pins, requiring an external ST-Link/V2, Segger, or compatible SWD debugger for program flashing, real-time debugging, and full system analysis. These debuggers are sold separately.

What are the key security features of the STM32H562VGT6 MCU?

The STM32H562VGT6 MCU incorporates a suite of security features, including Arm TrustZone, secure boot, secure firmware update, and cryptographic accelerators. These enable the development of highly secure applications by isolating sensitive code and data, protecting against unauthorized access and tampering, crucial for IoT and industrial systems.

Package Includes

  • 1 x WeAct Studio STM32H562VGT6 Core Board
  • 5 x Header Pin

Additional Information

Weight 0.01 kg
Dimensions 6.9 × 3.8 × 0.2 cm
