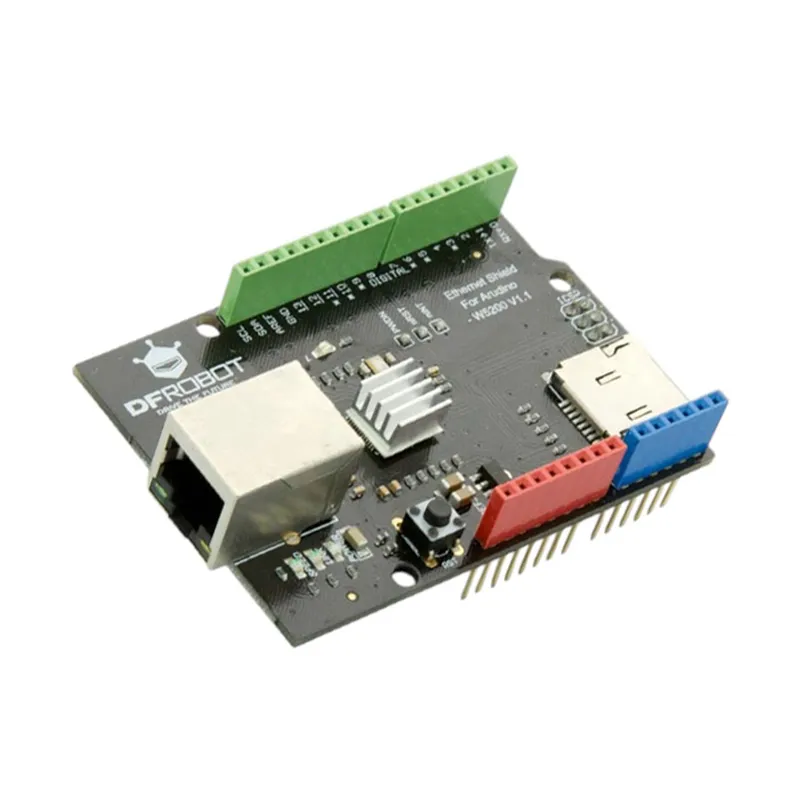

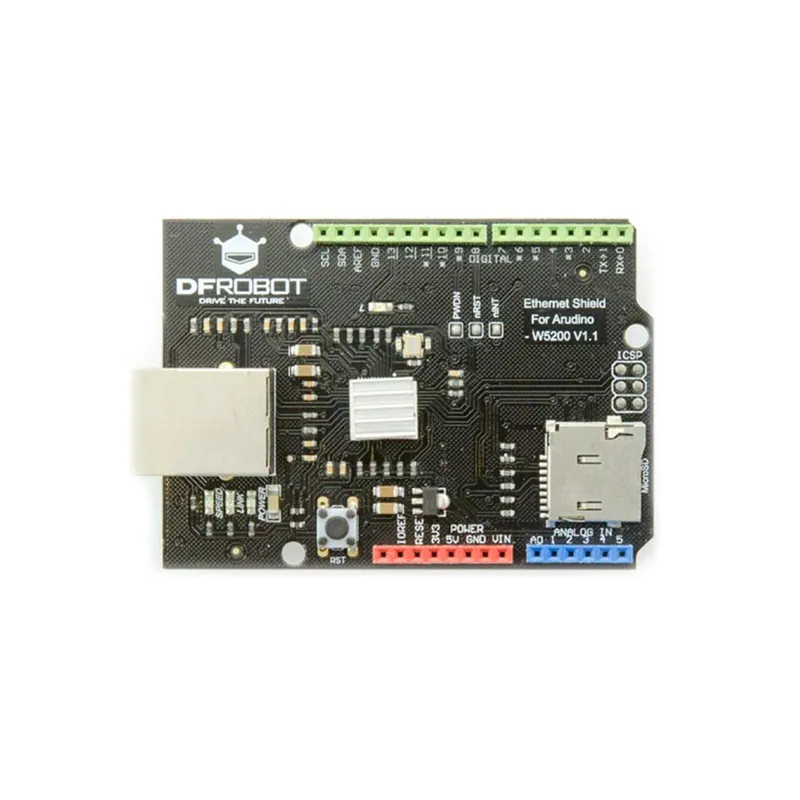

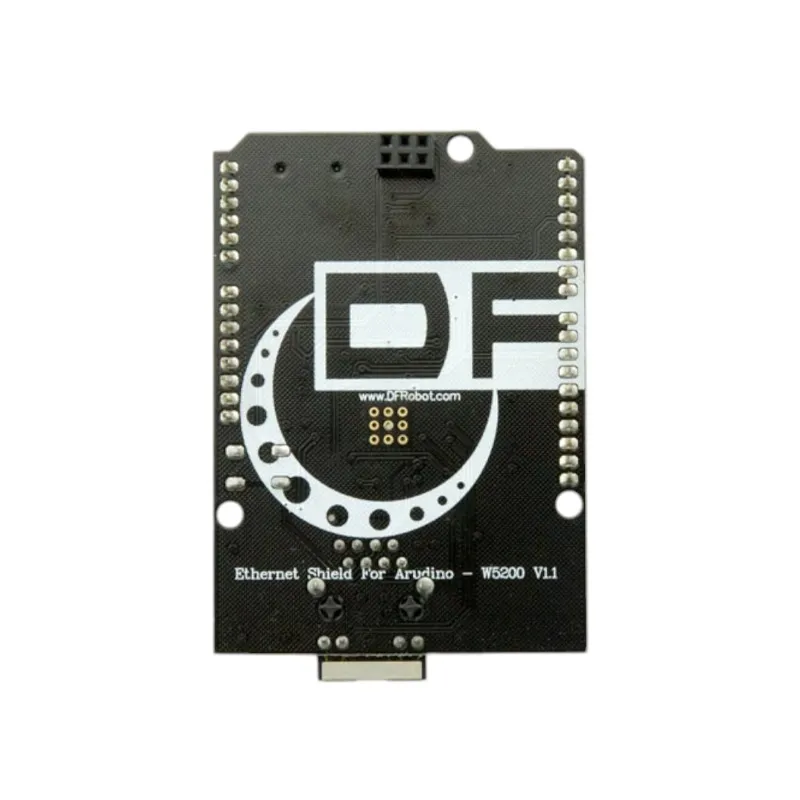

DFRobot W5200 Ethernet Shield for Arduino UNO/Mega

The DFRobot W5200 Ethernet Shield is directly compatible with Arduino UNO and Arduino Mega boards. It connects via the SPI interface, making it also usable with other Arduino-compatible boards that feature an SPI bus, though physical stacking might require jumpers or custom wiring.

Yes, the DFRobot W5200 Ethernet Shield includes an integrated microSD card slot. This feature allows users to easily add large-capacity local data storage for applications such as data logging, storing web page files for an embedded web server, or managing configuration files directly on the shield.

The WIZnet W5200 chip integrated into this shield supports a comprehensive range of network protocols. These include TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE. This broad protocol support ensures versatility for various network applications, from simple data transfer to complex IoT solutions.

The WIZnet W5200 chip on the DFRobot Ethernet Shield is designed to handle up to 8 independent hardware socket connections simultaneously. This capability is crucial for applications that require multiple concurrent network interactions, such as managing several client connections or providing different network services.

The W5200 Ethernet Shield incorporates power-saving features like Wake-on-LAN and power-down modes. Wake-on-LAN allows the device to be remotely awakened from a low-power state, while power-down modes enable reduced energy consumption when network activity is not required, optimizing battery life for portable applications.
