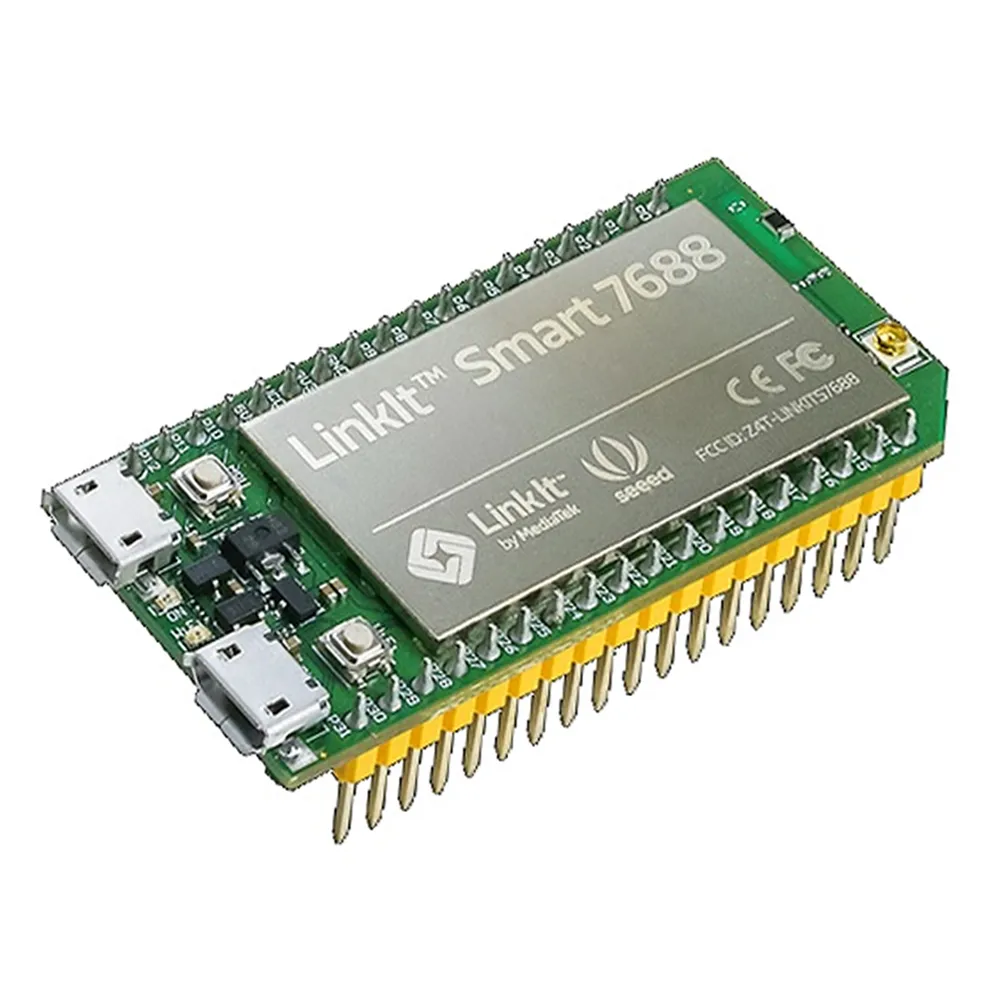

Seeed Studio Studio LinkIt Smart 7688 Development Board

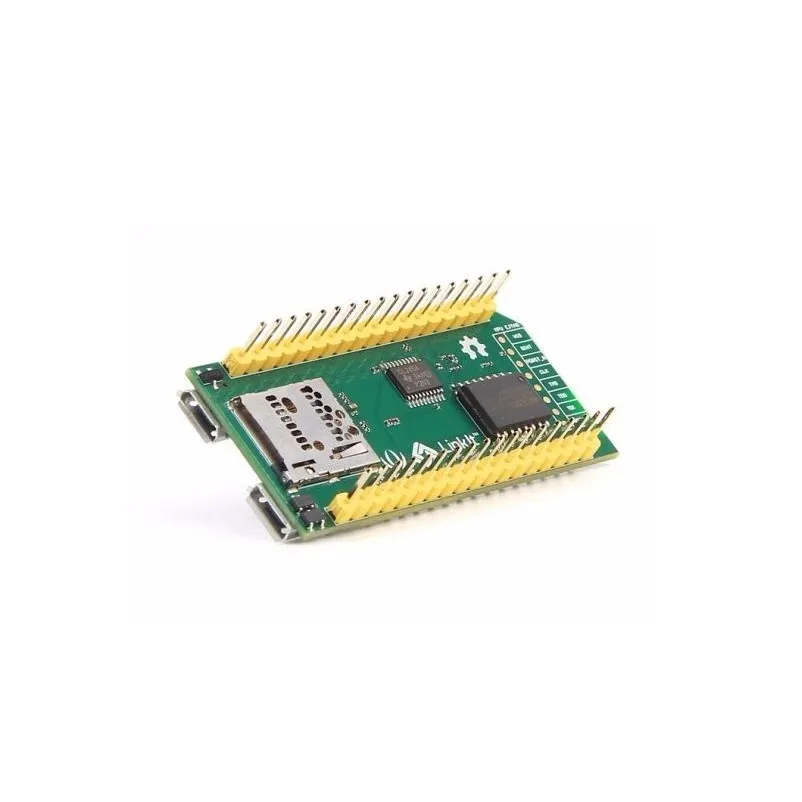

Seeed Studio Studio LinkIt Smart 7688 Development Board - Image 2

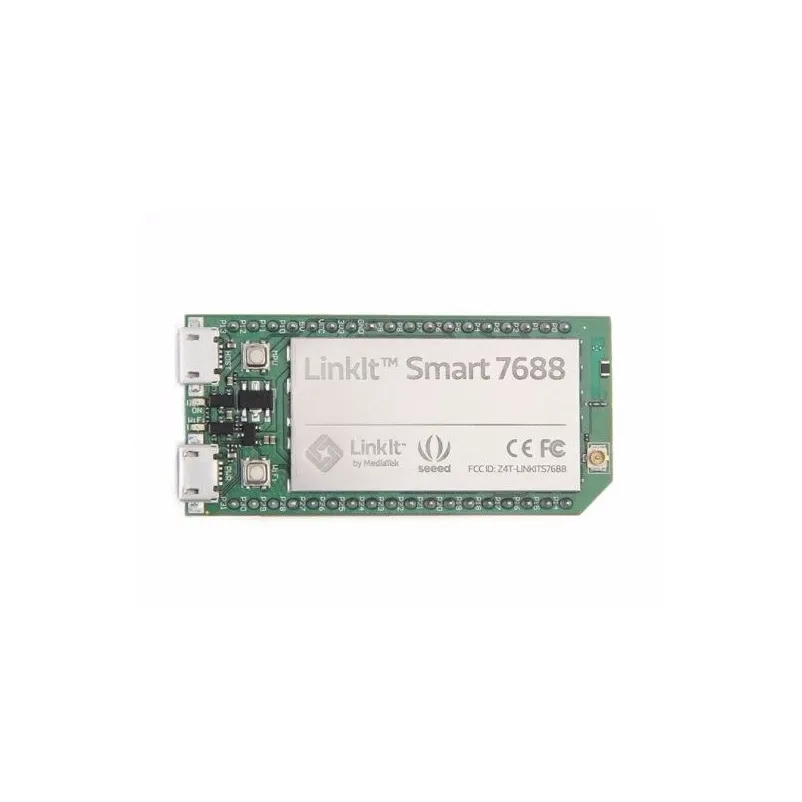

Seeed Studio Studio LinkIt Smart 7688 Development Board - Image 3
SKU: SBCD-0108
📋 GST Invoice Available

Seeed Studio Studio LinkIt Smart 7688 Development Board

₹1,799.00 (Inclusive of all taxes)
Out of Stock

The Seeed Studio Studio LinkIt Smart 7688 is a compact development board featuring a 580MHz MIPS CPU, 128MB DDR2 RAM, and Wi-Fi, designed for prototyping rich IoT and smart home applications with OpenWrt Linux.

Features

  • Powered by a 580MHz MIPS CPU with 32MB Flash and 128MB DDR2 RAM.
  • Integrated 1T1R 802.11 b/g/n Wi-Fi for robust wireless connectivity.
  • Runs on OpenWrt Linux, enabling development in Python, Node.js, and C.
  • Extensive I/O including GPIO, I2C, SPI, UART, PWM, Ethernet, USB Host, and Micro SD slot.

Out of stock

Description

The LinkIt Smart 7688 is an open development board based on the MediaTek MT7688 SoC and OpenWrt Linux distribution. Specifically designed for prototyping sophisticated IoT devices for smart homes, this board provides ample memory and storage to support demanding tasks, including robust video processing applications.

This platform offers developers flexibility, allowing them to create device applications using Python, Node.js, and C programming languages. Co-designed by Seeed Studio Studio and MediaTek, the LinkIt Smart 7688 combines expertise in open hardware with industry-leading IoT reference designs, resulting in a powerful and versatile embedded platform.

Key Features

  • Supports Wi-Fi 802.11 b/g/n (1T1R) for comprehensive wireless connectivity.
  • Equipped with a 580 MHz MIPS CPU for efficient processing.
  • Features 32MB Flash memory and 128MB DDR2 RAM for operating system and application storage.
  • Offers extensive pin-outs including GPIO, I2C, I2S, SPI, UART, PWM, and an Ethernet Port.
  • Includes a USB host port and a Micro SD slot for expanded peripheral and storage options.
  • Comes with open hardware board reference design, including schematics, layouts, and pin details.

Applications

  • Rich Application IoT Devices for Smart Home.
  • Robotics control and communication platforms.
  • Embedded sensing and data logging systems.

Technical Specifications

Item TypeDevelopment Board
Core ArchitectureMIPS24KEc
ChipsetMT7688AN
Flash Memory32MB
RAM128MB DDR2
Input Voltage3.3 ~ 5 V
GPIO Pins22
Max. Resolution (PWM)7 bits (customizable)
Max. Speed (SPI)25 MHz
WiFi1T1R 802.11 b/g/n (2.4G)

Frequently Asked Questions

What operating system does the LinkIt Smart 7688 run?

The LinkIt Smart 7688 is based on the OpenWrt Linux distribution. This enables developers to leverage a robust, open-source environment for network applications and embedded projects, providing extensive customization and package management capabilities suitable for IoT devices.

What programming languages are supported on the LinkIt Smart 7688?

The platform supports multiple programming languages, including Python, Node.js, and C. This versatility allows developers to choose their preferred language for creating device applications, from high-level scripting for rapid prototyping to low-level compiled code for performance-critical tasks.

What are the primary communication interfaces available on the board?

The LinkIt Smart 7688 features comprehensive communication interfaces, including Wi-Fi 802.11 b/g/n, an Ethernet port, USB Host, and various GPIOs with I2C, SPI, UART, and PWM capabilities. These enable diverse connectivity and peripheral integration for IoT and embedded systems.

Can the LinkIt Smart 7688 handle video processing?

Yes, the board offers sufficient memory and packet storage to enable robust video processing. With its 580MHz MIPS CPU and 128MB DDR2 RAM, it is capable of handling tasks that involve streaming or processing video data, making it suitable for smart home security or monitoring applications.

Package Includes

  • 1 x LinkIt Smart 7688 Development Board

Additional Information

Weight 0.01 kg
Dimensions 5.7 × 2.6 cm
