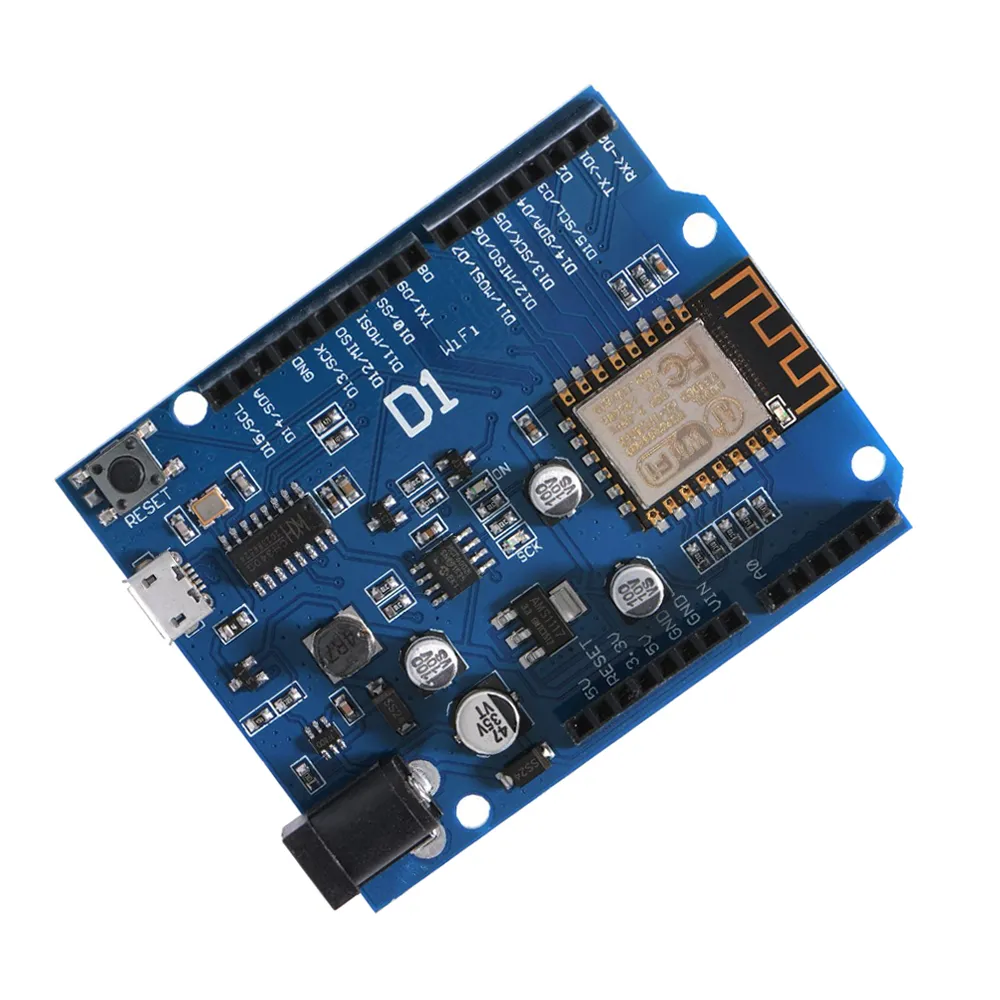

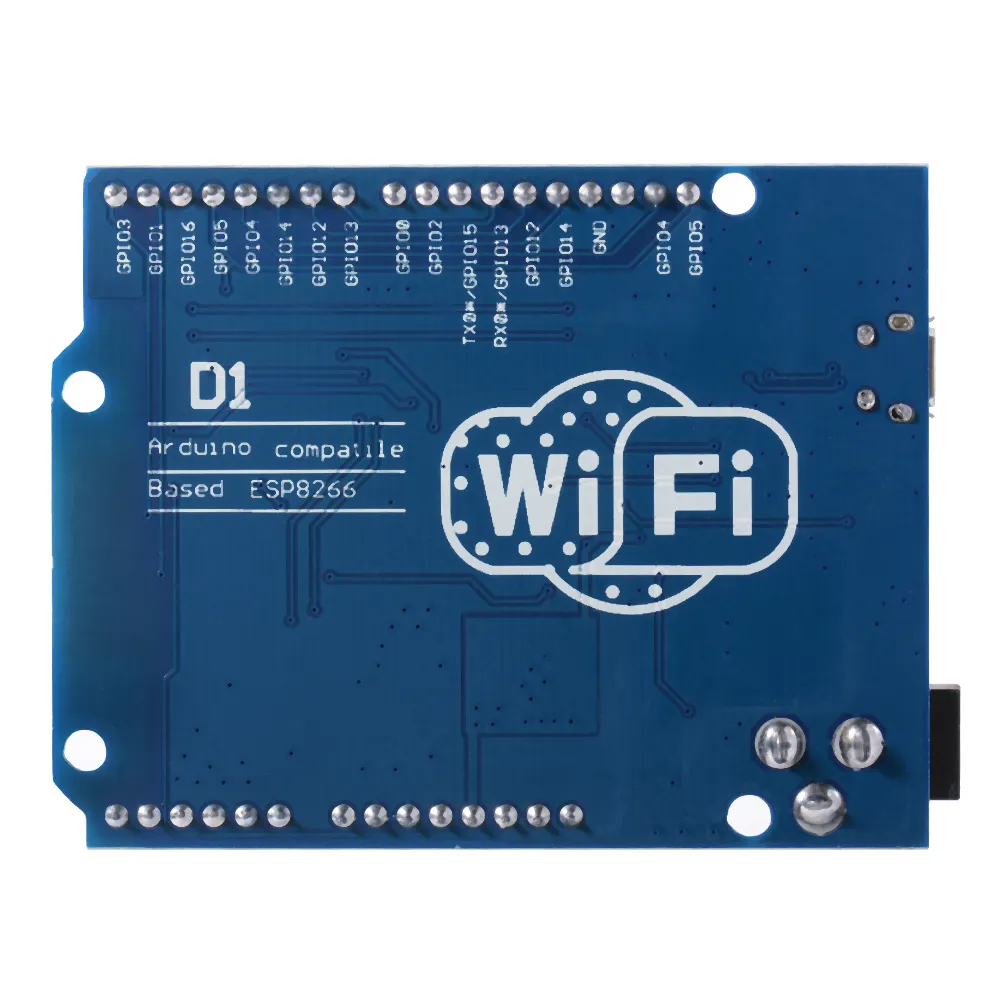

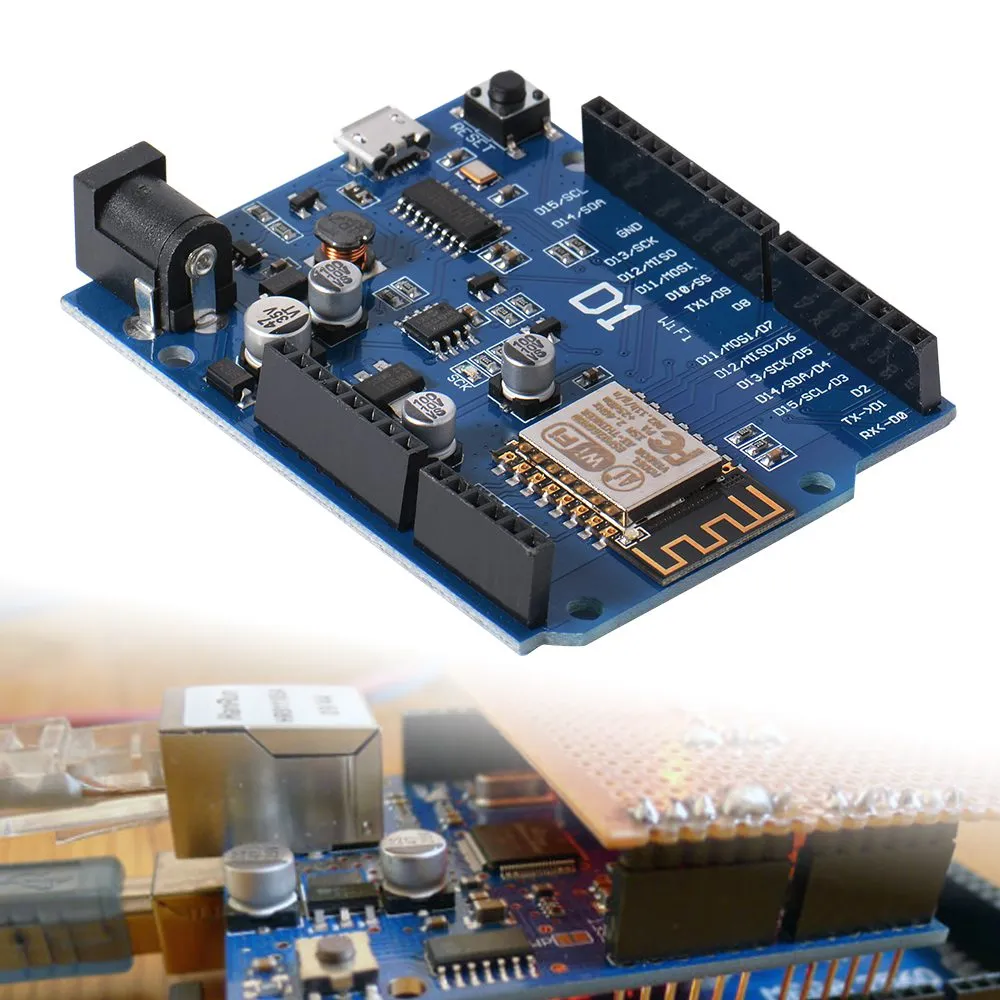

ESP8266 NodeMCU Development Board (UNO Form Factor)

This development board is based on the ESP-8266EX System-on-Chip (SoC). The ESP8266EX is a highly integrated chip designed for the needs of a new connected world, offering complete and self-contained Wi-Fi networking solutions, making it ideal for a wide range of IoT applications.

The board features an Arduino UNO-compatible form factor, allowing it to leverage many existing Arduino shields and accessories. Furthermore, it can be programmed directly using the Arduino IDE, offering a familiar development environment and access to a vast library ecosystem for rapid prototyping.

The board operates at 3.3V DC, but it includes an onboard 5V 1A switching power supply. This integrated supply can accept input voltages up to 24V, simplifying power management and allowing for direct integration into various project power schemes without external voltage regulators.

Yes, this ESP8266 NodeMCU development board supports Over-The-Air (OTA) wireless uploads. This feature allows developers to update the firmware on the device remotely, which is crucial for deployed IoT solutions where physical access to the board for programming may be inconvenient or impossible.

The board is equipped with 11 digital I/O pins, providing ample connectivity for various digital sensors, actuators, and communication protocols. Additionally, it features 1 analog input pin, enabling the connection and reading of analog sensors for data acquisition in diverse applications.
