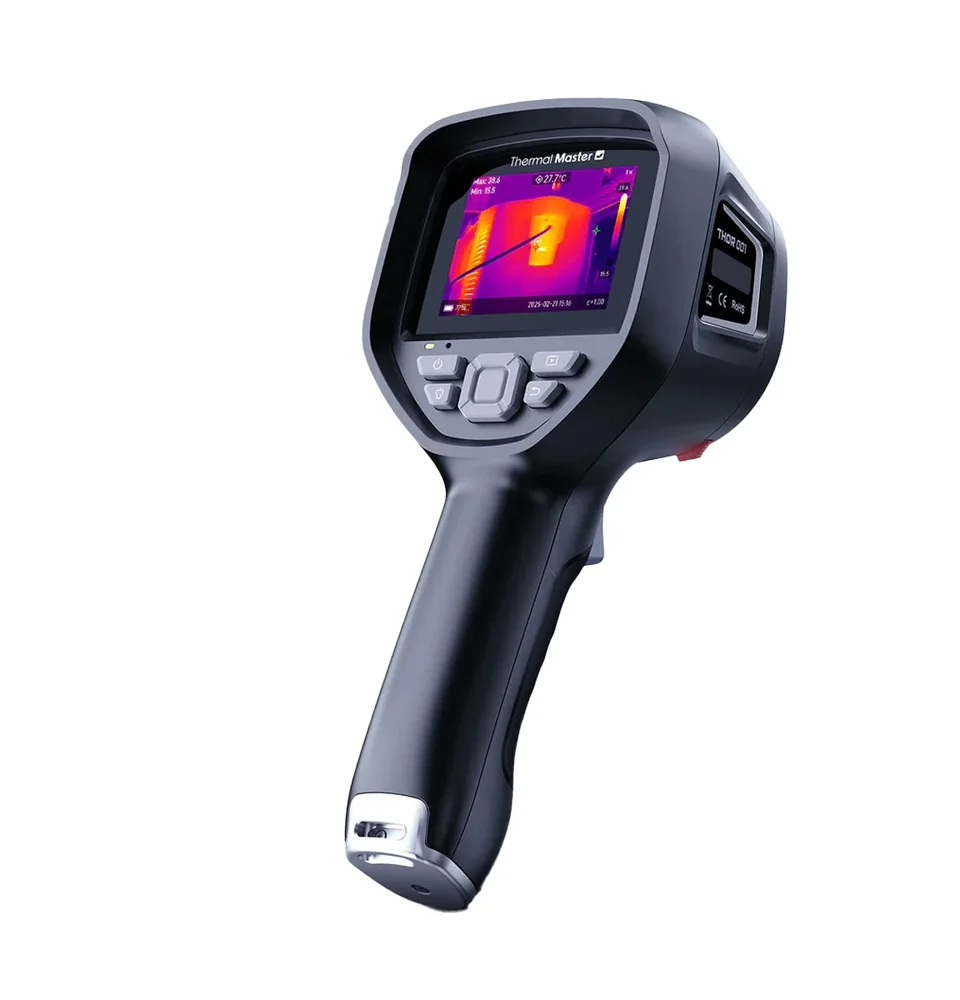

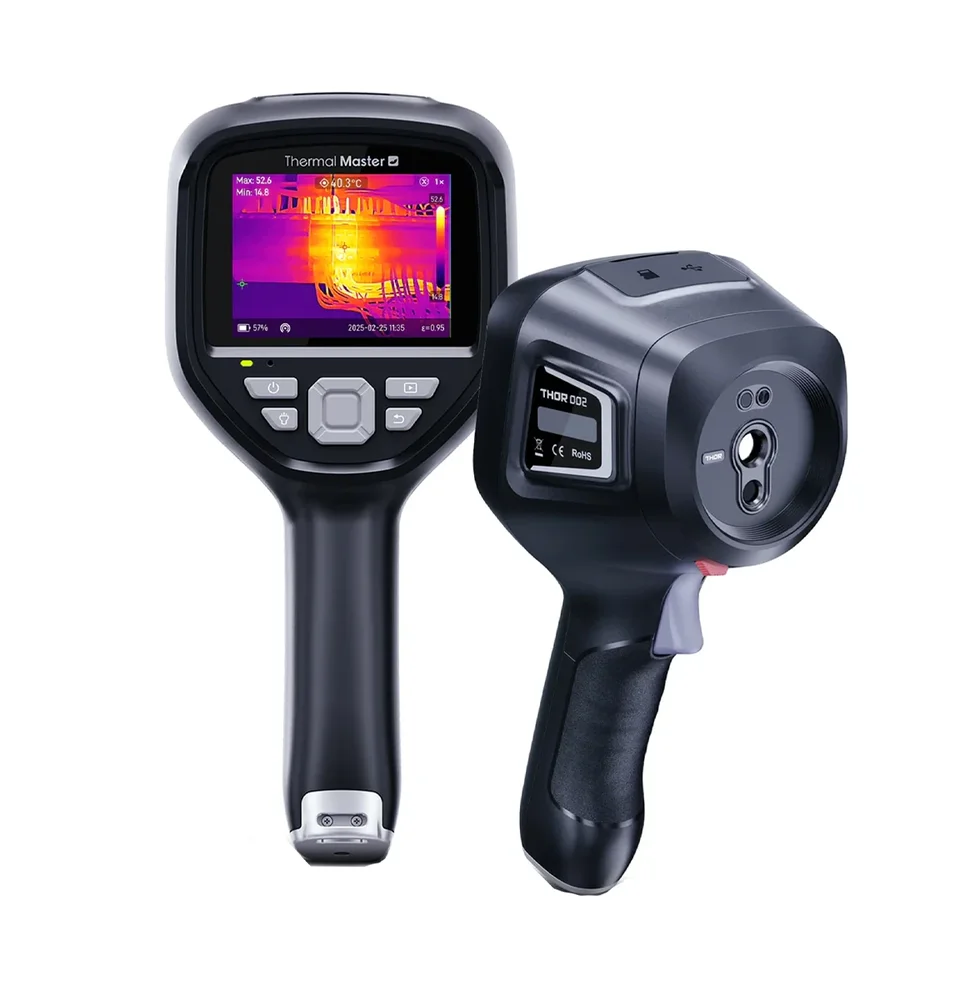

Thermal Master Thor002 Handheld Thermal Imager, 256×192 IR

Power off the camera and insert the included 32GB microSD card into your computer's card reader. Alternatively, connect the Thor002 to your PC via the supplied USB cable; it will appear as a removable storage device. Navigate to the DCIM folder to copy JPEG thermal images and radiometric data files for analysis in compatible software. Ensure the camera battery is sufficiently charged or connected to power during USB data transfer to prevent interruption.

IR-Fuse mode overlays the thermal image onto the visible light image, providing precise spatial context. Use it when you need to accurately locate a thermal anomaly, like a hot electrical connection, within a complex visible scene, such as a crowded circuit panel. This mode enhances diagnostic clarity by merging thermal data with visual landmarks, making it easier to document and communicate findings during building inspections or mechanical system audits.

Yes, the Thor002 includes a temperature difference (ΔT) calculation function. Activate the spot meter mode and place one custom spot on your reference point and another on the target area. The camera's software will calculate and display the live temperature difference. This is essential for monitoring thermal gradients across mechanical surfaces, checking for balanced heating in systems, or verifying insulation performance by comparing interior and exterior surface temperatures.
