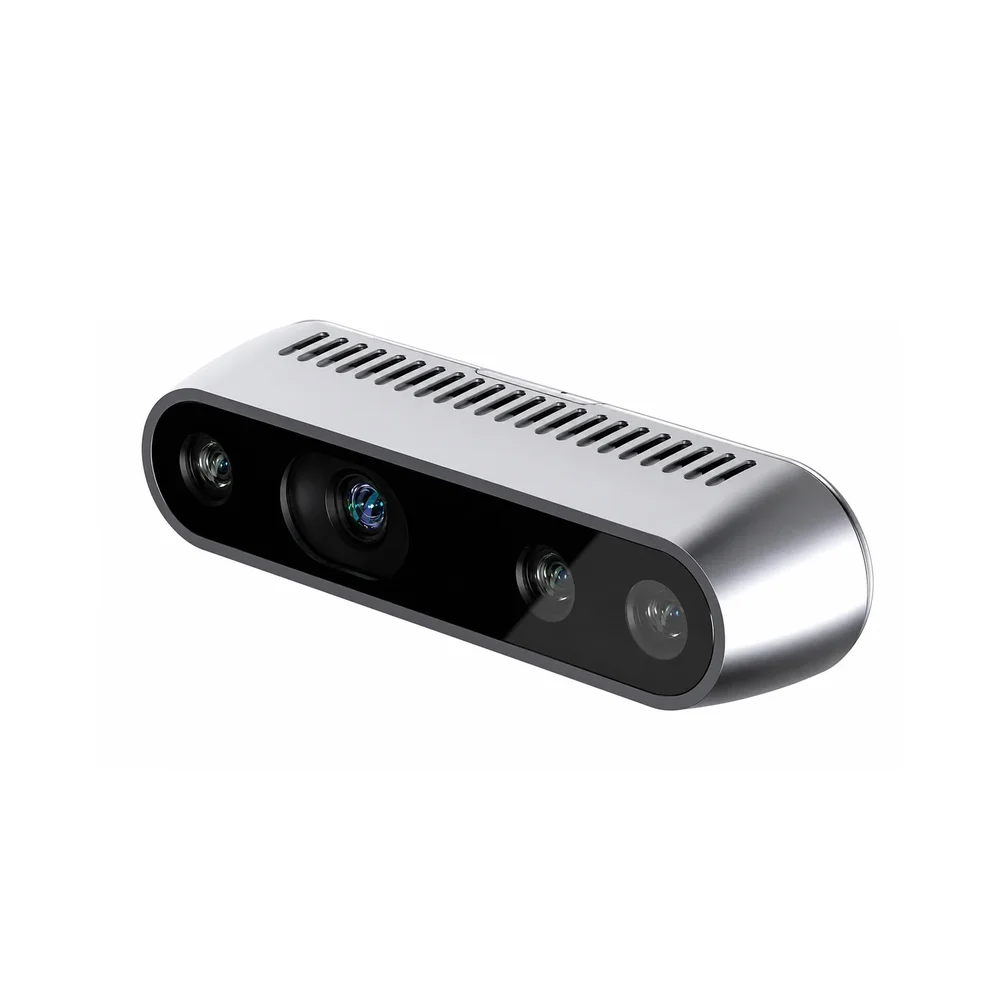

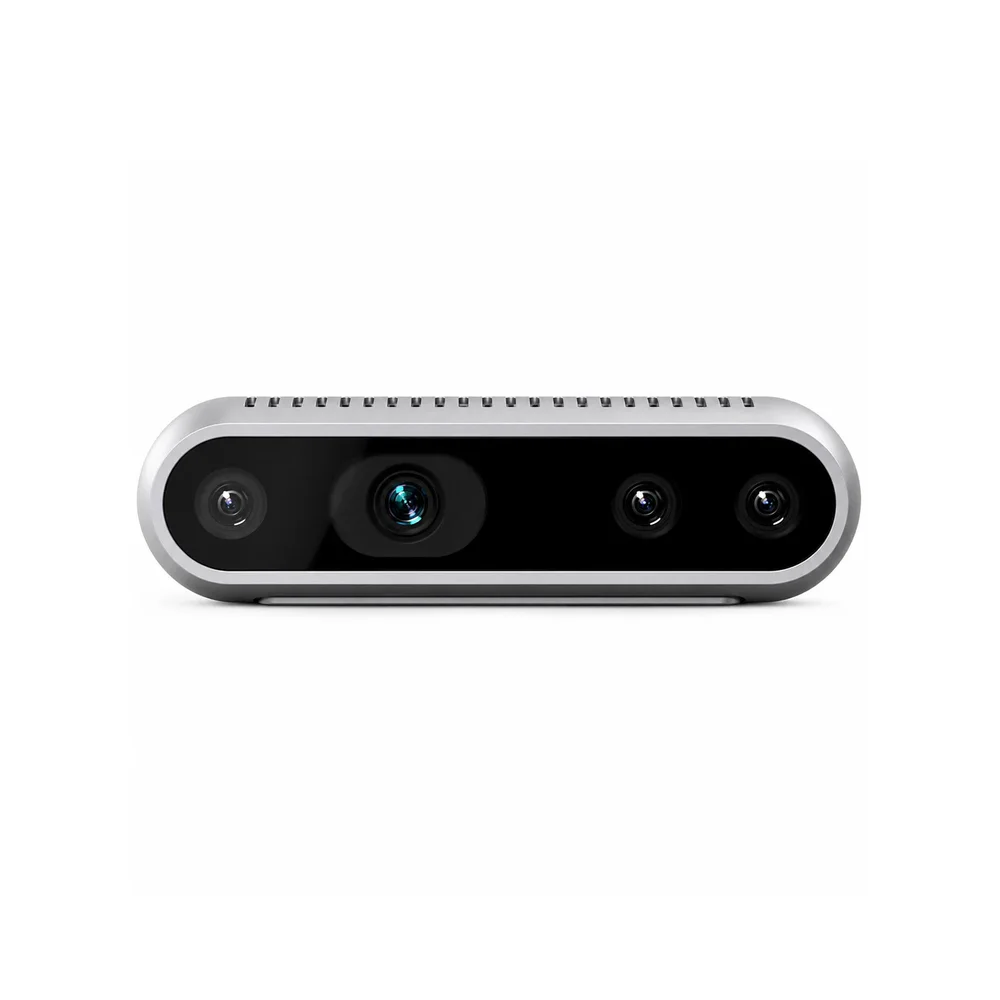

Intel Intel RealSense Depth Camera D436 w/ D430 Module

The Intel RealSense D436 has a minimum depth sensing distance of 20 cm (Min-Z). Objects closer than this range will not provide accurate depth data. This parameter is critical for designing robotic grippers or obstacle avoidance systems to ensure sensors are mounted with adequate clearance from targets. For applications requiring very close-range perception, such as detailed inspection, consider alternative Intel RealSense models like the D415 or L515 lidar camera which offer shorter minimum distances.

Connect the D436 via its USB-C 3.1 cable to your Linux host. First, install the librealsense2 SDK and its dependencies from the official GitHub repository or via package manager. After installation, use tools like `Intel RealSense-viewer` to verify camera streams and calibrate settings. For custom applications, utilize the SDK's C++, Python, or ROS wrappers. Ensure your USB port supports USB 3.0 or higher bandwidth to achieve the full 90 fps depth frame rate, as USB 2.0 connections will limit performance.

Yes, the Intel RealSense D436 provides hardware synchronization between its depth and RGB streams via the Intel RealSense Vision Processor D4. The depth stream can operate at up to 90 frames per second at 1280x720 resolution, while the RGB stream runs at up to 60 fps at 1280x800. Synchronization is managed through the SDK, which aligns timestamps from both sensors. This is essential for applications like 3D reconstruction or augmented reality where color and depth data must correspond precisely in time.

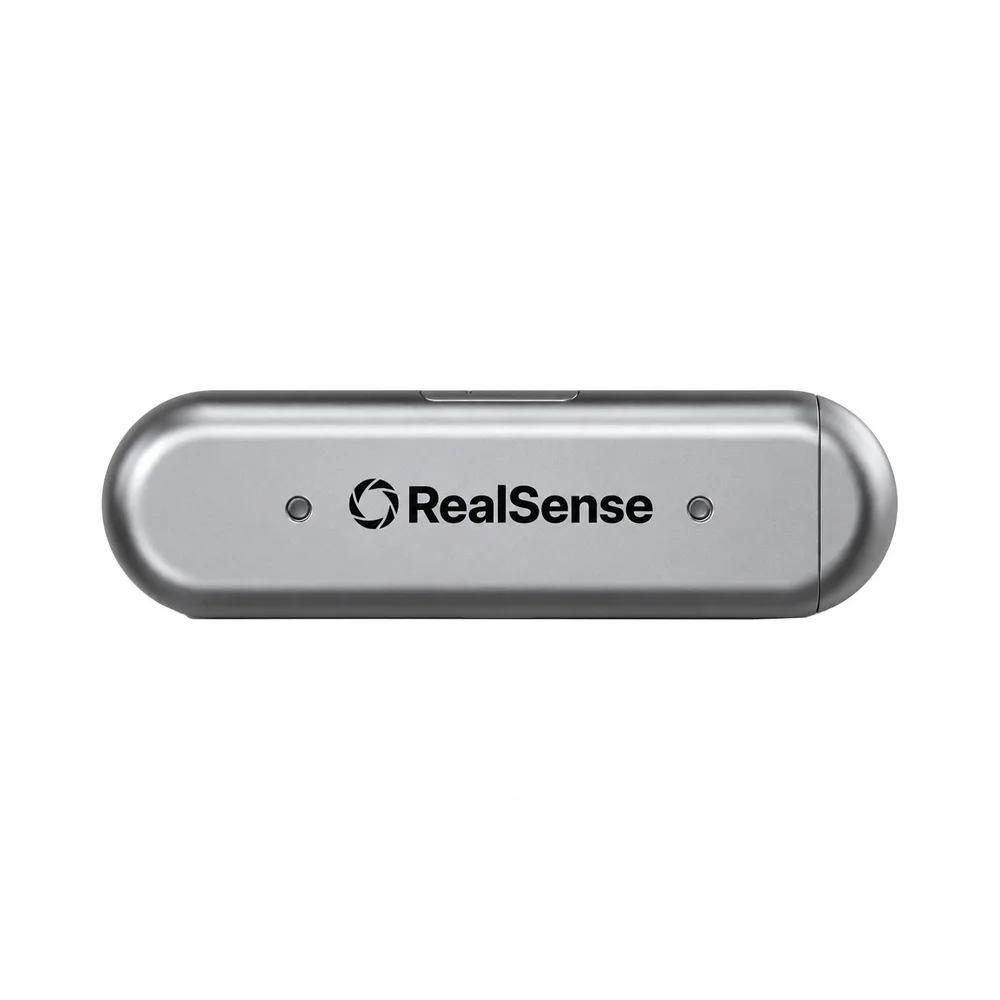

The D436 camera body includes two standard mounting thread patterns: a 1/4-20 UNC thread (common for camera tripods) and an M3 thread. These allow direct attachment to robotic arms, custom brackets, or tripod mounts. For vibration-prone environments, use locking nuts or vibration-dampening washers. The compact 90mm length and low 70g weight minimize inertia on moving platforms, making it suitable for drones and gimbals where payload is a constraint.
